Specifications
Brand Name :
UCER
Model Number :
CA550 CA555 CA545 CA557 CA620 C2060H
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
50 Meters
Price :
$2.00 - $50.00/ Meter
Payment Terms :
L/C, T/T, D/P, CAD
Supply Ability :
10000 Meters per Month
Delivery Time :
45 work days
Packaging Details :
a leaf chain + a poly bag + individual box + wooden case
Product name :
Carbon steel agricultural chain
OEM service :
Accept
Structure :
Roller Chain
Material :
alloy steel or stainless steel
Color :
black & gray
Roller chain name :
Chain manufacturer steel leaf chains
Function :
Transmission Chain
Conveyor chain type :
chain with attachments
Description

Carbon Steel Agricultural Chain Transmission Drive Chains

CA550 CA555 CA545 CA557 CA620 C2060H

Quick Details
Finish: Black, Plain
Place of Origin: Zhejiang, China
Brand Name: UCER
Model Number: LH BL LL FB
Structure: Roller Chain
Function: Transmission Chain
Standard or Nonstandard: Standard
Roller chain name: Chain manufacturer steel leaf chains
Conveyor chain type: chain with attchments
OEM service: accept
Heat treatment: all the chain parts undergo heat treatment
Color: black & gray
Leaf chain price: best price
Production maker: China manufacturer
Material: alloy steel or stainless steel
Size&capacity: pls reference to the form

Specification

CA550 CA555 CA557 Transmission Drive Chains Carbon Steel Agricultural Chain

CA550 CA555 CA557 Transmission Drive Chains Carbon Steel Agricultural Chain

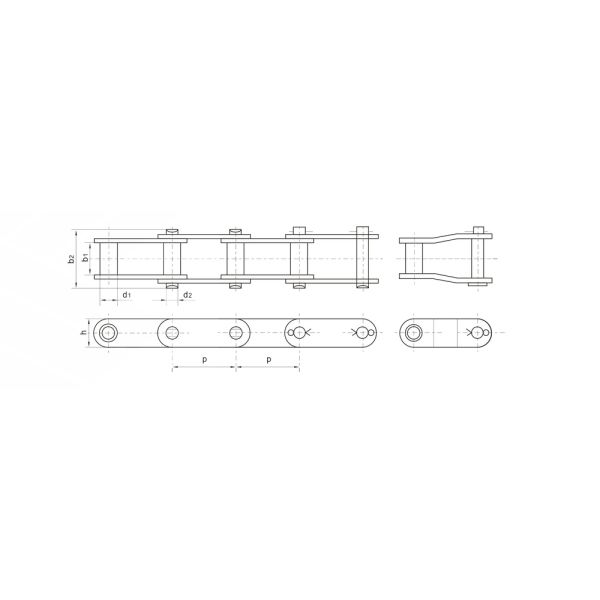

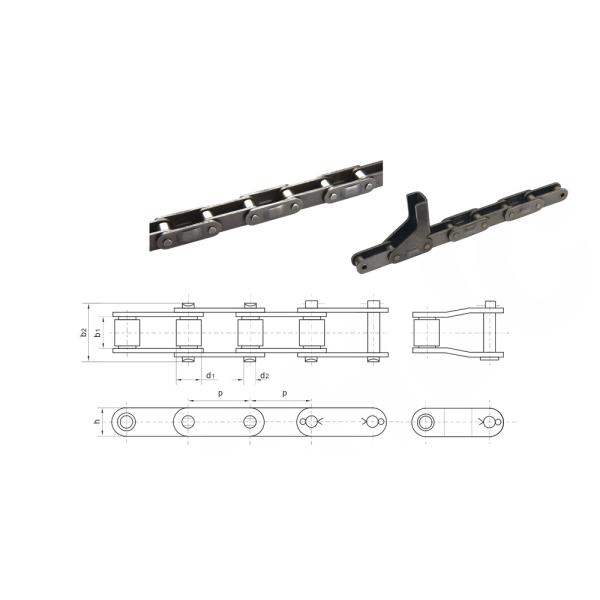

DIN ISO Chain No. Pitch d1 max b1 min h max d2 max b2 max U.T.S A.T.S q ≈ kg/m
mm mm KN KN kg/m
CA550 41.4 16.7 19.81 19.05 7.16 34.5 39.1 46.92 1.926
CA550/45 41.4 15.24 19.81 19.05 7.16 35.5 39.1 46.92 1.777
CA550/55 41.4 17.78 19.81 19.05 7.16 35.5 39.1 46.92 2.023
CA555 41.4 16.7 12.7 19.05 7.16 29.3 56 67.2 2.01
CA557 41.4 17.78 19.81 23.1 7.92 37.1 55.6 66.72 2.623
CA620 42.01 17.91 24.51 19.05 7.16 41.5 9.1 46.92 2.44
C2060H 38.1 11.91 12.75 18 5.94 28.6 31.1 37.32 1.518

CA550 CA555 CA557 Transmission Drive Chains Carbon Steel Agricultural Chain

DIN ISO Chain No. Pitch d1 max b1 min h max d2 max b2 max U.T.S A.T.S q ≈ kg/m
mm mm KN KN kg/m
CA395 38.4 10.38 19 17.2 6.92 33.4 36 43.2 1.3


Packing Delivery Shipping


Packaging details : a leaf chain + a poly bag + individual box + wooden case
CA550 CA555 CA557 Transmission Drive Chains Carbon Steel Agricultural Chain

Delivery Details:

Usually, we pack conveyer chain in polybag and box. then put the box in the creat. we offer yellow or white box for free, which marked length and size only, customer also may offer his box sample to us. our crate dimension: 100×75×75cm(800Kg could be packed)or 105×95×75cm(1000Kg could be packed); Usually 20' container could pack about 20-25 ton, but it depend on the requirement of the customs of every country. Packed chain on the pallet directly also optional.
