Specifications
Brand Name :
UCER
Model Number :
ST630/ST800/ST1000/ST1250/ST1600/ST2000
Certification :
Enterprise credit rating AAA
Place of Origin :
China
MOQ :
100 meters
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T
Supply Ability :
10000 per month
Delivery Time :
10-30 days
Packaging Details :
Iron packing, iron frame or other
Color :
Black
Performance :
GB9770
Length :
2500mm
The minimum working temperature :
-60℃
Model :
ST800/ST1000
Material feature :
Heat Resistant
Usage :
Conveyor
Warranty :
1 Year
Description

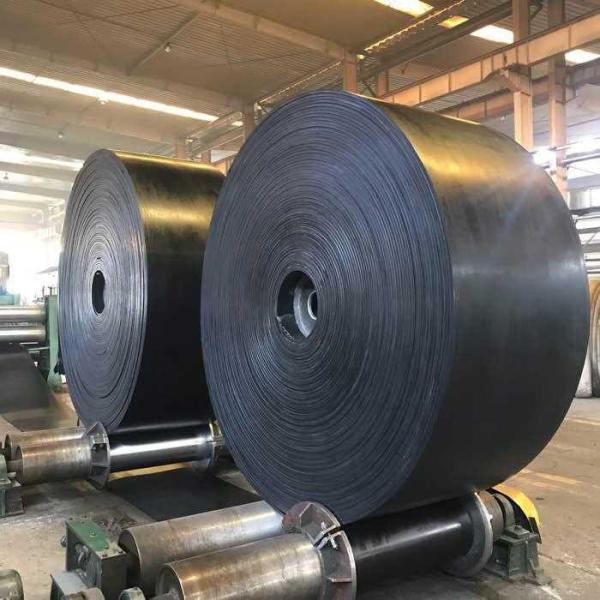

Black Anti-tear steel cord conveyor belt ST1000 Wire Rope Conveyor Belt

Wire rope conveyor belt is a rubber conveyor belt with steel wire as the skeleton. It has the advantages of high tensile strength, good impact resistance, long life, low elongation, good trough forming, and good flexural resistance. It is suitable for long-distance, long-haul, and high-speed transportation of materials. The product is composed of core rubber, steel wire rope, covering layer and edge rubber.

1. Implementation standards and main indicators


The general type implements the GB/T9770-2001 standard, the cold resistant type implements the Q/FXS05-2002 standard, the ozone resistant type implements the Q/FXS06-2002 standard, the flame-retardant type implements the G2539-93 standard, and the acid and alkali resistant type implements Q/FXS02- In 2002, the heat-resistant type implements Q/FXS08-2001, the anti-tear type implements the HG/T3646-1999 standard, and the flame-retardant type implements the MT668-1997 standard.

Variety Standards and main indicators
Ordinary steel cord conveyor belt GB/T9770-2001
Flame-retardant steel cord conveyor belt MT668-1997
General flame-retardant steel cord conveyor belt MT668-1997
Heat-resistant steel cord conveyor belt HG2297-92
Wear-resistant steel cord conveyor belt Shaoboer wear amount ≤90mm 3
Acid, alkali and oil resistant steel cord conveyor belt HG4-846
Cold-resistant steel cord conveyor belt Brittleness temperature -40℃

Main technical parameters of steel cord conveyor belt

Item St St St St St St St St St St St St St
630 800 1000 1250 1600 2000 2500 3150 3500 4000 4500 5000 5400
Longitudinal tensile strength N/mm 630 800 1000 1250 1600 2000 2500 3150 3500 4000 4500 5000 5400
Maximum nominal diameter of wire rope mm 3 3.5 4 4.5 5 6 7.2 8.1 8.6 8.9 9.7 10.9 11.3
Wire rope spacing mm 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5
Thickness of the upper covering layer mm 5 5 6 6 6 8 8 8 8 8 8 8.5 9
Thickness of lower cover mm 5 5 6 6 6 6 6 8 8 8 8 8.5 9

Width specification mm Number of steel wire ropes
St St St St St St St St St St St St St
630 800 1000 1250 1600 2000 2500 3150 3500 4000 4500 5000 5400
800 75 75 63 63 63 63 50 50 50
1000 95 95 79 79 79 79 64 64 64 64 59 55 55
1200 113 113 94 94 94 94 76 76 77 77 71 66 66
1400 133 133 111 111 111 111 89 89 90 90 84 78 78
1600 151 151 126 126 126 126 101 101 104 104 96 90 90
1800 171 143 143 143 143 114 114 117 117 109 102 102
2000 159 159 159 159 128 128 130 130 121 113 113
2200 176 141 141 144 144 134 125 125
2400 193 155 155 157 157 146 137 137
2600 209 168 168 170 170 159 149 149
2800 194 194 171 161 161

Level code Tensile strength, MPa ≥ Elongation at break,% ≥ Abrasion, mm 3 ≤
D 18 400 90
H 25 450 120
L 20 400 150
P 14 350 200
