Specifications
Place of Origin :
Dongguan，Guangdong,China
Brand Name :
UCHI
Certification :
UL.VDE.SGS.
Model Number :
MSMD1812
MOQ :
3000PCS
Price :
Negotiable
Packaging Details :
Reel 1500PCS/Reel
Delivery Time :
3~5 working days
Payment Terms :
T/T,Paypal,Western Union,Money gram
Supply Ability :
8000,000,000PCS Per Month
Description

Ultra Low Resistance PPTC SMD Resettable Fuse / Electrical Components

Quick Detail:

• Fast trip times and resettable protection

• Overcurrent and over temperature protection

• Wide range of current (Ihold) and voltage (Vmax) offerings

• Low resistance

• RoHS compliant, lead-free, halogen-free

Description:

The MSMD1812 Series PPTC provides surface mount overcurrent

protection for applications where resettable protection is desired.

Applications:

◆Overcurrentandovertemperatureprotectionof

automotiveelectronics

◆PCmotherboards,Harddiskdriver,andPC

peripherals

◆POSEquipment

◆USBportprotection

◆HDMIsourceprotection

Specifications:

Ultra Low Resistance PPTC SMD Resettable Fuse / Electrical Components

Electrical Characteristics

P/N

Hold current

Trip current

Maximum voltage

Maximum fault current

Maximum time to trip(s)

Typical power dissipation

Resistance Range (Ω)

IH,(A)

IT,(A)

Vmax,(V)

Imax,(A)

(A)

(Sec.)

Pd typ(W)

Rmin

R1max

MSMD010

0.10

0.30

60

10

0.5

1.50

0.8

0.700

15.000

MSMD014

0.14

0.34

60

10

1.5

0.15

0.8

0.400

6.500

MSMD020

0.20

0.40

30

10

8.0

0.02

0.8

0.750

5.00

MSMD020/60

0.20

0.40

60

10

1.5

0.15

0.8

0.400

6.000

MSMD030

0.30

0.60

30

10

8.0

0.10

0.8

0.300

3.000

MSMD035

0.35

0.70

16

10

8.0

0.10

0.8

0.200

1.800

MSMD050

0.50

1.00

16

30

8.0

0.15

0.8

0.150

1.000

MSMD075

0.75

1.50

16

40

8.0

0.20

0.8

0.110

0.450

MSMD075/24

0.75

1.50

24

40

8.0

0.20

0.8

0.110

0.450

MSMD075/33

0.75

1.50

33

40

8.0

0.20

0.8

0.110

0.450

MSMD110

1.10

2.20

6

100

8.0

0.30

0.8

0.040

0.225

MSMD110/16

1.10

2.20

16

100

8.0

0.50

0.8

0.040

0.225

MSMD110/24

1.10

2.20

24

100

8.0

0.50

0.8

0.055

0.180

MSMD125

1.25

2.50

6

40

8.0

0.40

0.8

0.035

0.140

MSMD150

1.50

3.00

6

100

8.0

0.50

0.8

0.030

0.120

MSMD150/12

1.50

3.00

12

100

8.0

0.50

1.0

0.030

0.120

MSMD150/24

1.50

3.00

24

20

8.0

1.50

1.0

0.030

0.140

MSMD160

1.60

3.20

8

100

8.0

0.50

0.8

0.025

0.120

MSMD160/12

1.60

3.20

12

100

8.0

1.00

1.0

0.025

0.120

MSMD160/16

1.60

3.20

16

100

8.0

1.00

1.0

0.025

0.120

MSMD200

2.00

4.00

16

100

8.0

3.00

0.8

0.020

0.080

MSMD250/16

2.50

5.00

16

100

8.0

5.00

1.2

0.015

0.100

MSMD260

2.60

5.20

16

100

8.0

5.00

0.8

0.015

0.080

MSMD300

3.00

6.00

12

100

8.0

5.00

0.8

0.012

0.060

IH=Hold current: maximum current at which the device will not trip at 25℃ still air.

IT=Trip current: minimum current at which the device will always trip at 25℃ still air.

Vmax=Maximum voltage device can withstand without damage at rated current.

Imax=Maximum fault current device can withstand without damage at rated voltage.

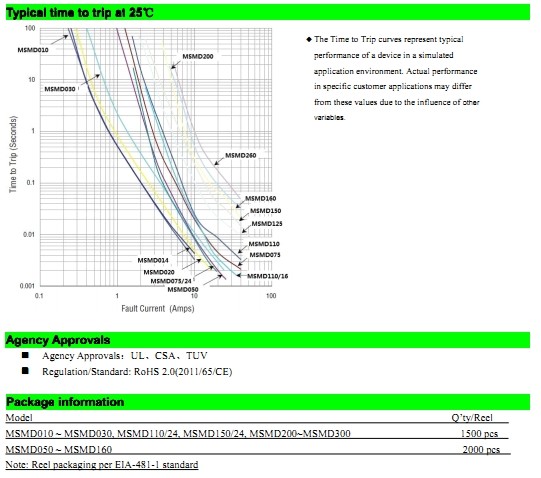

Ttrip=Maximum time to trip(s) at assigned current.

Pdtyp=Typical power dissipation: typical amount of power dissipated by the device when in state air environment.

Rmin=Minimum device resistance at 25℃ prior to tripping.

Rmax=Maximum device resistance at 25℃ prior to tripping.

Ultra Low Resistance PPTC SMD Resettable Fuse / Electrical Components

Ultra Low Resistance PPTC SMD Resettable Fuse / Electrical Components

Ultra Low Resistance PPTC SMD Resettable Fuse / Electrical Components

Ultra Low Resistance PPTC SMD Resettable Fuse / Electrical Components

Competitive Advantage:

  1. Factory supply directly
  2. Completed certificates such as UL,VDE,SGS,etc and high quality available
  3. Quick delivery
  4. Best after-sales services
  5. OEM & ODM available
