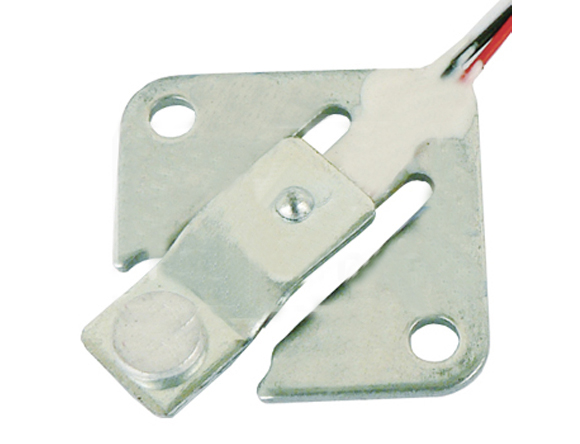

Integration Rod End In Line 3kg 4kg Panel Mount Load Cells Hand Scales miniature sensors
Integration Rod End In Line 3kg 4kg Panel Mount Load Cells Hand Scales miniature sensors
Integration Rod End In Line 3kg 4kg Panel Mount Load Cells Hand Scales miniature sensors
Integration Rod End In Line 3kg 4kg Panel Mount Load Cells Hand Scales miniature sensors
Integration Rod End In Line 3kg 4kg Panel Mount Load Cells Hand Scales miniature sensors
Integration Rod End In Line 3kg 4kg Panel Mount Load Cells Hand Scales miniature sensors
Integration Rod End In Line 3kg 4kg Panel Mount Load Cells Hand Scales miniature sensors
Integration Rod End In Line 3kg 4kg Panel Mount Load Cells Hand Scales miniature sensors
Specifications
Brand Name :
UCHI
Model Number :
CZL928HC
Certification :
SGS.ISO.
Place of Origin :
DONGGUAN,GUANGDONG,CHINA
MOQ :
500pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
500000pcs
Delivery Time :
14 workdays
Packaging Details :
Bulk
Product name :
Panel Mount Load Cells
Material :
aluminium alloy
Surface :
anodized treatment
Application :
Hand Scales
PN :
CZL928HC
HS code :
9031809090
Description

Integration Rod End In Line 3kg 4kg Panel Mount Load Cells Hand Scales miniature sensors

Quick details

Integration Rod End In Line 3kg 4kg Panel Mount Load Cells Hand Scales miniature sensors

Introduction

A load cell is a force sensing module - a carefully designed metal structure, with small elements called strain gauges mounted in precise locations on the structure. Load cells are designed to measure a specific force, and ignore other forces being applied. The electrical signal output by the load cell is very small and requires specialized amplification. Fortunately, the 1046 PhidgetBridge will perform all the amplification and measurement of the electrical output.
Load cells are designed to measure force in one direction. They will often measure force in other directions, but the sensor sensitivity will be different, since parts of the load cell operating under compression are now in tension, and vice versa.
This Single Point Load Cell is used in small jewelry scales and kitchen scales. It’s mounted by bolting down the end of the load cell where the wires are attached, and applying force on the other end in the direction of the arrow. Where the force is applied is not critical, as this load cell measures a shearing effect on the beam, not the bending of the beam. If you mount a small platform on the load cell, as would be done in a small scale, this load cell provides accurate readings regardless of the position of the load on the platform.

Product specifications

1. Rated Load 3kg , 4kg
2. Rated Output 1.0±0.1 mV/V
3. Zero Balance ±0.5 mV/V
4. Input Resistance 500±10Ω
5. Output Resistance 500±10Ω
6. Excitation Voltage 5-10VDC
7. Nonlinearity 0.3%F.S
8. Hysteresis 0.3%F.S
9. Repeatability 0.3%F.S
10.Creep(30min) 0.1%F.S
11.Operating Temperature -10℃ To +40℃
12.Temperature Effect on Zero ±0.05%F.S/10℃
13.Temperature Effect on Span ±0.05%F.S/10℃
14.Insulation Resistance 2000MΩ(50VDC)
15. Safe Overload 150%F.S

NumberType="1" TCSC="0" w:st="on">5mm 4-wire shielding cable)

Integration Rod End In Line 3kg 4kg Panel Mount Load Cells Hand Scales miniature sensors
