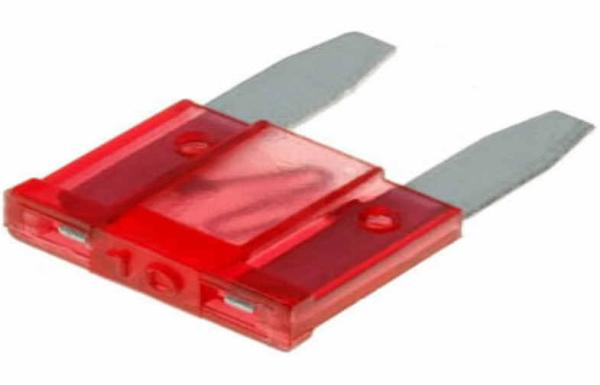

Zinc Alloy Automotive Micro Fuses Plug - In Car Fuse Replacement For Motor / Boats
Zinc Alloy Automotive Micro Fuses Plug - In Car Fuse Replacement For Motor / Boats
Zinc Alloy Automotive Micro Fuses Plug - In Car Fuse Replacement For Motor / Boats
Zinc Alloy Automotive Micro Fuses Plug - In Car Fuse Replacement For Motor / Boats
Zinc Alloy Automotive Micro Fuses Plug - In Car Fuse Replacement For Motor / Boats
Zinc Alloy Automotive Micro Fuses Plug - In Car Fuse Replacement For Motor / Boats
Zinc Alloy Automotive Micro Fuses Plug - In Car Fuse Replacement For Motor / Boats
Zinc Alloy Automotive Micro Fuses Plug - In Car Fuse Replacement For Motor / Boats
Zinc Alloy Automotive Micro Fuses Plug - In Car Fuse Replacement For Motor / Boats
Zinc Alloy Automotive Micro Fuses Plug - In Car Fuse Replacement For Motor / Boats
Zinc Alloy Automotive Micro Fuses Plug - In Car Fuse Replacement For Motor / Boats
Zinc Alloy Automotive Micro Fuses Plug - In Car Fuse Replacement For Motor / Boats
Zinc Alloy Automotive Micro Fuses Plug - In Car Fuse Replacement For Motor / Boats
Zinc Alloy Automotive Micro Fuses Plug - In Car Fuse Replacement For Motor / Boats
Zinc Alloy Automotive Micro Fuses Plug - In Car Fuse Replacement For Motor / Boats
Zinc Alloy Automotive Micro Fuses Plug - In Car Fuse Replacement For Motor / Boats
Specifications
Brand Name :
Uchi
Model Number :
Atn1101
Certification :
UL ROH
Place of Origin :
dongguan
MOQ :
10000
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000000month
Packaging Details :
bulk
Volt :
DC58V
Ampere rating :
1
color :
deep green transparent
housing :
heat-resting and fire-resistingtranspant resin
fuse-element and terminal :
zinc alloy
aing temperature range :
-40+_85degree
Description

plug-in fuse for in motor or boats and trailers with wage SAE J2077 special purpose fuse

1.Scope

The fuses shown are for in motor vehicles,boats and trailers to protect ect electricai wiring and equipment.This standard is for the construction shown and is not intended to restrict the design and use of other configurations and materials capable of meeting the vehicle requirements.

2.Definition

A fuse is a device designed to interrupt the electrical circuit when subjected to overcents.This action is to be nonreversible and the fuse is intended to be replaced after the circuit,malfunction has been corrected.

3. Application file

Complies with: The standard wage SAE J2077Special Purpose Fuse

4. aing Temperature Range

-40℃to+85℃

5.Ampere

RATING AND FUSE COLOR CODE-TABLE 1

Material Ampere Color Volt
number rating
ATN11001 1 Deep green transparent
ATN 11002 2 It Grey (Gray)
ATN 11003 3 Violet
ATN 11004 4 Pink
ATN 11005 5 Tan
ATN 1107.5 7.5 Brown
DC58V
ATN 11010 10 Red
ATN 11015 15 Blue
ATN 11020 20 Yellow
ATN 11025 25 Clear
ATN 11030 30 Green
ATN11035 35 Purple
ATN11040 40 Purple

6.Size-TABLE2

Zinc Alloy Automotive Micro Fuses Plug - In Car Fuse Replacement For Motor / Boats

7.Material

Materials of the fuse are in accordance with TABLE 3

Division Material
Housing Heat-resting and fire-resistingtranspant resin
Fuse-element and terminal Zinc alloy

8.performance

performance of use is in accordance with TABLE 4

tesl turrent Rated current Operating Time
A MIN MAX
100% 40 360,000s/- No requirement
110% 1-35 360,000s/- No requirement
135% 2-40 0.75s 1800s
200% 1-40 0.15s 5s
350% 1-40 0.04s 0.5s
600% 1-40 0.02s 0.1s

9.AB11 Diagram

Zinc Alloy Automotive Micro Fuses Plug - In Car Fuse Replacement For Motor / Boats
