Specifications
Brand Name :
SHIHENG
Model Number :
MF75
Certification :
UL CQC TUV
Place of Origin :
CHINA
MOQ :
300PCS
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10000000PCS Per Month
Delivery Time :
7-10 days
Packaging Details :
Bulk
Name :
NTC Thermistor
Series :
MF75
Diameter :
45mm
Max. Current :
70A
Max power dissi. :
70mW/C
Thermal time :
480sec
Description

Ceramic Insulator NTC Thermistor MF75-0.2/70 70A 0.2Ohm B2600 11500uF With Edge

Advantage of apply MF74 NTC THERMISTOR

Best choice for limiting inrush current

Leading Technology Perfect Function Originate in domestic

Max steady state current : 120A

Inrush current is the momentary surge of current created when power is turned on to motors,transformers,power suppliers and heating elements. The more power required by industrial equipment,the larger the inrush current. It can effectively quench the inrush current by means of in series with power NTC thermistor in return circuit of power supply. The thermistor’s resistance decreases dramatically following the inrush,allowing the steady state curent to flow with very little resistance.This effect provides inrush current protection, yet allows efficiency during normal operation.The power NTC Thermistor produced by Guangdong Uchi Technology Co.,Ltd. with large scale,especially MF73T,MF73,MF74,MF75 serial products with big size,which can be applied in such inrush protection with industrial level as industrial robots and automation.

Ceramic Insulator NTC Thermistor MF75-0.2/70 70A 0.2Ohm B2600 11500uF With Edge

Characteristics

Reliable configuration and convenient installation
Strongest capability of surge current protection and energy absorption

PATENT NO: ZL201620516869.6

Recommended Application

Nuclear magnetic resonance equipment,super power audio power amplifier,high power circle transformer

The solar panel arrays with high capacity power inverter

The industrial robot drived by high voltage power supply

Outline Dimension

Ceramic Insulator NTC Thermistor MF75-0.2/70 70A 0.2Ohm B2600 11500uF With Edge

Body size Φ40 Φ45 Φ50
(Dmax)/Diameter 98 92 92
(Tmax)/Thickness 46 46 46
(F±1.5)/Pitch 30 30 30
(L±2)/Lead length 40 40 40
Lead Height(Ho max) 110 110 110
Lead width(W±0.2) 12.0 12.0 12.0
Lead thickness(H±0.1) 1.2 1.2 1.2

Ceramic Insulator NTC Thermistor MF75-0.2/70 70A 0.2Ohm B2600 11500uF With Edge

Body size Φ40 Φ45 Φ50
(Dmax)/Diameter 92 92 92
(Tmax)/Thickness 46 46 46
(F±1.5)/Pitch 30 30 30
L±2 Lead length 40 40 40
Lead Height(Ho max) 110 110 110
(W±0.2)/Lead width 12 12 12
Lead thickness(H±0.1) 1.2 1.2 1.2
Width of lower lead (W1±0.2) 8 8 8

Technical Specification

Body diameter Φ40mm

P/N R25±20%(Ω) Thermal sensitive index B±10%(K) Max steady state current Imax(A) Approx R of Max current Rmax(Ω) Max power dissipation Pmax(W) Thermal time constant (mW/C) Thermal time constant (s) Max impulse capacitance (uF)240VAC
MF75-0.2/55 0.2 2600 55 0.007 30 ≥55 ≤350 8000
MF75-1/45 1 2600 45 0.01 6800
MF75-2/35 2 2600 35 0.014 6800
MF75-5/27 5 3000 27 0.028 4700
MF75-8/22 8 3200 22 0.034 3300
MF75-10/21 10 3200 21 0.038 3300

Body diameter Φ45mm

P/N R25±20%(Ω) Thermal sensitive index B±10%(K) Max steady state current Imax(A) Approx R of Max current Rmax(Ω) Max power dissipation Pmax(W) Thermal time constant (mW/C) Thermal time constant (s) Max impulse capacitance (uF)240VAC
MF75-0.2/70 0.2 2600 70 0.006 45 ≥70 ≤480 11500
MF75-0.5/55 0.5 2600 55 0.007 8000
MF75-1/52 1 2600 52 0.009 8000
MF75-2/45 2 2600 45 0.012 8000
MF75-5/35 5 3000 35 0.025 6800
MF75-10/28 10 3200 28 0.032 4700

Body diameter Φ50mm

P/N R25±20%(Ω) Thermal sensitive index B±10%(K) Max steady state current Imax(A) Approx R of Max current Rmax(Ω) Max power dissipation Pmax(W) thermal time constant (mW/C) Thermal time constant (s) Max impulse capacitance (uF)240VAC
MF75-0.2/90 0.2 2600 90 0.004 55 ≥90 ≤650 15000
MF75-1/60 1 2600 60 0.008 11500
MF75-2/50 2 2600 50 0.011 11500
MF75-5/40 5 3000 40 0.022 8000
MF75-8/32 8 3200 32 0.028 6800
MF75-10/30 10 3200 30 0.03 6800

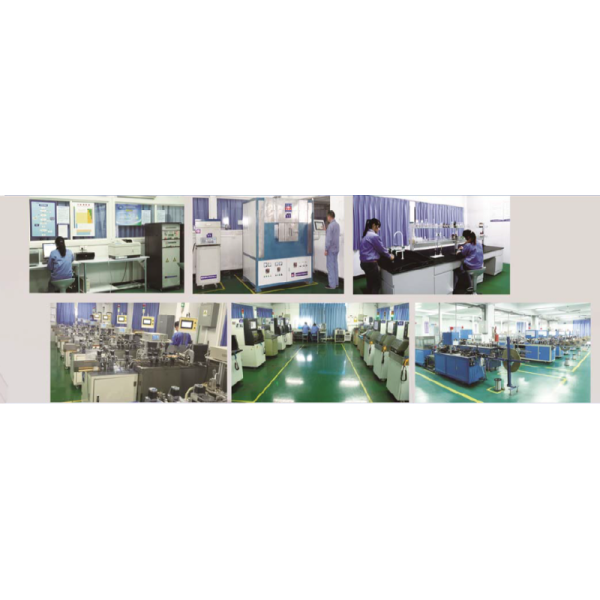

A glance at workshop and R&D center

16 years’ experience R&D center and modern factories cover an areas of 120 mu .

Ceramic Insulator NTC Thermistor MF75-0.2/70 70A 0.2Ohm B2600 11500uF With Edge

Uchi Technology, National Hi-Tech Enterprise and drafting member of “National Thirteen Five Plan”,specilized in manufacturing sensitive elements as NTC/PTC thermistor,NTC temperature sensor and metal oxide varistor. With unique process and advanced technology , product produced with high precision,high reliability,high stability etc outstanding advantages, becoming leading level in the industry. Based on current standard power type MF72 NTC thermistors and “The engineer and research technology center of NTC thermistor ceramic material ” ,applied with new materials/technology/process/equipment,as well as unremitting efforts, innovated MF73T,MT73,MF74,MF75 etc. new power type NTC thermistor and mass production to be realized,key technology has been got big breakthrough and performances has been increased a lot.We have our own proprietary intellectual property right and dozens of patents, it can provide inrush protection in industrial level application and it is originate in domestic !
