Specifications
Brand Name :
OMRON
Model Number :
D6T-1A-02
Certification :
Completed
Place of Origin :
Thailand
MOQ :
1000PCS
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
5000pcs stcoks
Delivery Time :
3-5 days
Packaging Details :
Standard
Name :
MEMS Thermal Sensors
Power supply voltage :
4.5 to 5.5 VDC
Storage temperature range :
−40 to 80°C
View angle :
26.5°
Current consumption :
3.5 mA typical
Object temperature detection range :
−40 to 80°C
Temperature resolution (NETD)*3 :
0.06°C
Communications form :
I2C compliant
Description

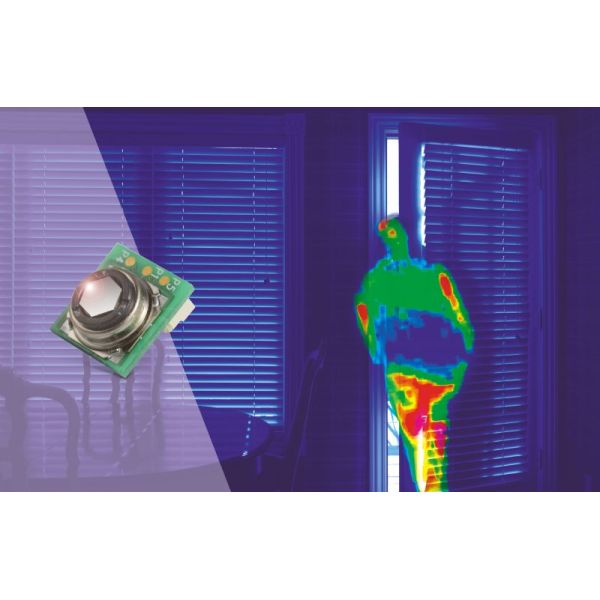

High Sensitivity Stocks 5000pcs OMRON MEMS Thermal Sensors D6T-1A-02 For Contactless Measurement

Dimensions

(Unit: mm)

  • * Due to insulation distance limitations, do not allow metal parts to come into contact with the Sensor.
  • * Unless otherwise specified, a tolerance of ±0.3 mm applies to all dimensions.

    High Sensitivity NTC Temperature Sensor OMRON MEMS Thermal Sensors D6T-1A-02 For Contactless Measurement
  • Supporting and Mounting Area
    (Shaded Portion)
    Top View

    High Sensitivity NTC Temperature Sensor OMRON MEMS Thermal Sensors D6T-1A-02 For Contactless MeasurementHigh Sensitivity NTC Temperature Sensor OMRON MEMS Thermal Sensors D6T-1A-02 For Contactless Measurement
    Bottom View
  • High Sensitivity NTC Temperature Sensor OMRON MEMS Thermal Sensors D6T-1A-02 For Contactless Measurement

High Sensitivity NTC Temperature Sensor OMRON MEMS Thermal Sensors D6T-1A-02 For Contactless Measurement


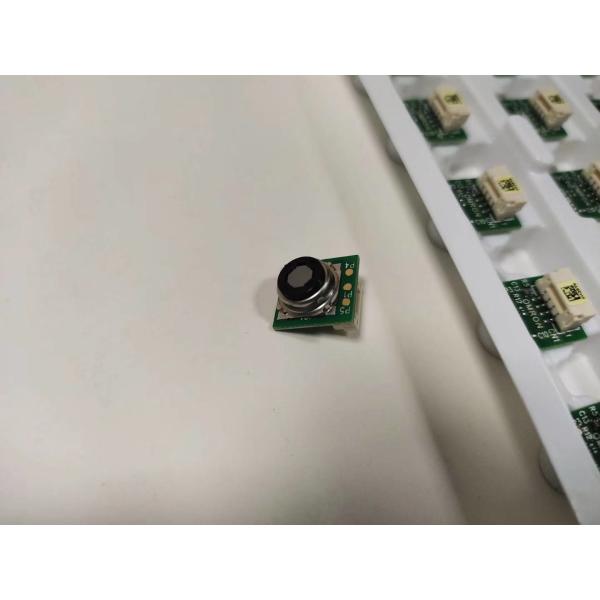

Pictures

High Sensitivity NTC Temperature Sensor OMRON MEMS Thermal Sensors D6T-1A-02 For Contactless Measurement
High Sensitivity NTC Temperature Sensor OMRON MEMS Thermal Sensors D6T-1A-02 For Contactless Measurement

Ratings

Item D6T-44L-06/06H D6T-8L-09/09H D6T-1A-01 D6T-1A-02 D6T-32L-01A
Power supply voltage 4.5 to 5.5 VDC
Storage temperature range* −10 to 60°C −20 to 80°C −40 to 80°C −20 to 80°C
Operating temperature range* 0 to 50°C 0 to 60°C −10 to 70°C
Storage humidity range* 85% max. 95% max.
Operating humidity range* 20% to 85% 20% to 95%

  • * with no icing or condensation

Characteristics

Item D6T-44L-06/06H D6T-8L-09/09H D6T-1A-01 D6T-1A-02 D6T-32L-01A
View angle*¹ X direction 44.2° 54.5° 58.0° 26.5° 90°
Y direction 45.7° 5.5°
Object temperature
output accuracy*²		 Accuracy 1 ±1.5°C max. / Measurement conditions: Vcc = 5.0 V
(1) Tx = 25°C, Ta = 25°C (2) Tx = 45°C, Ta = 25°C (3) Tx = 45°C, Ta = 45°C		 Within ±3.0°C / Measurement conditions: Vcc = 5.0 V
Tx = 25°C, Ta = 25°C Central 16-pixel area
Accuracy 2 ±3.0°C max. / Measurement conditions: Vcc = 5.0 V
(4) Tx = 25°C, Ta = 45°C		 Within ±5.0°C / Measurement conditions: Vcc = 5.0 V
Tx = 80°C, Ta = 25°C Central 16-pixel area
Current consumption 5 mA typical 3.5 mA typical 19 mA typical

Functions

Item D6T-44L-06/06H D6T-8L-09/09H D6T-1A-01 D6T-1A-02 D6T-32L-01A
Object temperature detection range*2 5 to 50°C/5 to 200°C 5 to 50°C −40 to 80°C 0 to 200°C
Ambient temperature detection range*2 5 to 45°C 0 to 80°C
Output specifications Digital values that correspond to the object temperature (Tx) and reference temperature
(Ta) are output from a serial communications port.
Output form Binary code (10 times the detected temperature (°C))
Communications form I2C compliant
Temperature resolution (NETD)*3 0.06°C 0.03°C 0.02°C 0.06°C 0.33°C *4

  • *1 Refer to Field of View Characteristics.
  • *2 Refer to Object Temperature Detection Range.
  • *3 Reference data
  • *4 Taken to be the average value of the central 4 pixels.

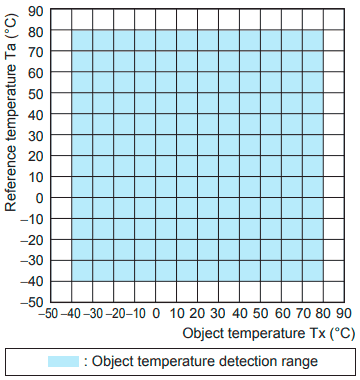

Object Temperature Detection Range

High Sensitivity NTC Temperature Sensor OMRON MEMS Thermal Sensors D6T-1A-02 For Contactless Measurement

Connections

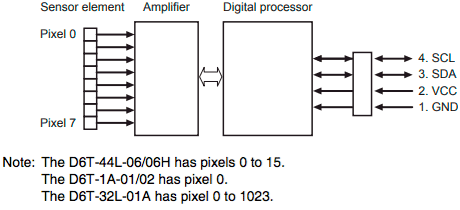

Thermal Sensor Configuration Diagram
< D6T-8L-09/09H >

High Sensitivity NTC Temperature Sensor OMRON MEMS Thermal Sensors D6T-1A-02 For Contactless Measurement

Terminal Arrangement

Name Terminal Function Remarks
GND 1 Ground –
VCC 2 Positive power supply
voltage input		 –
SDA 3 Serial data I/O line Connect the open-drain SDA
terminal to a pull-up resistor.
SCL 4 Serial clock input Connect the open-drain SCL
terminal to a pull-up resistor.

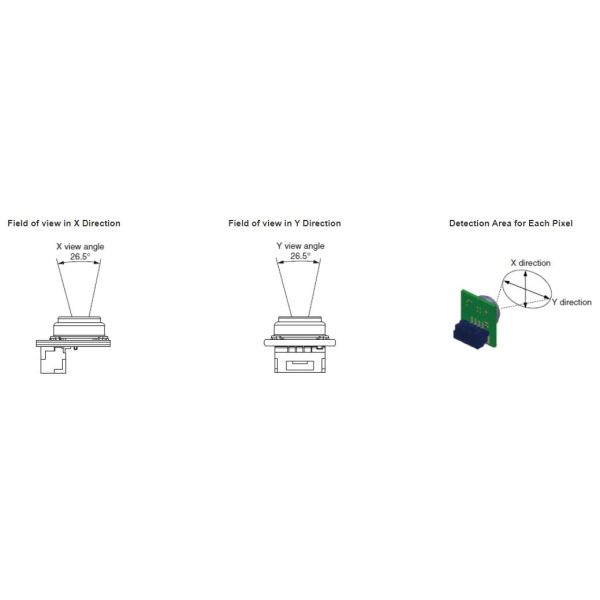

Field of View Characteristics

* Definition of view angle: Using the maximum Sensor output as a reference, the angular range where the Sensor output is 50% or higher when the angle of the Sensor is changed is defined as the view angle.

High Sensitivity NTC Temperature Sensor OMRON MEMS Thermal Sensors D6T-1A-02 For Contactless Measurement
