Specifications
Brand Name :
R
Model Number :
SMD0805R010SF
Certification :
UL,ROHS,REACH
Place of Origin :
CHINA
MOQ :
5000PCS
Price :
Negotiable
Payment Terms :
Western Union, T/T, MoneyGram
Supply Ability :
5000,000,000PCS PER MONTH
Delivery Time :
10 Days
Packaging Details :

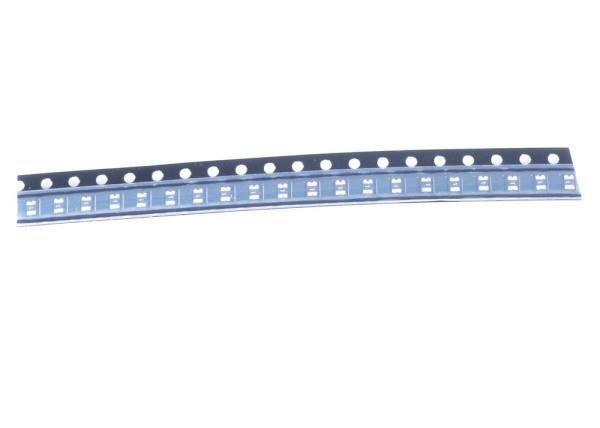

Tape in reel,5000pcs per reel
Name :
PPTC Resettable Fuses
Termination Style :
SMD/SMT
Hold Current :
100 mA
Trip Current :
300 mA
Maximum Voltage :
15V
Current Rating - Max :
30A
Package / Case :
0805 (2012 metric)
Type :
PolyFuse Resettable PTC
Description

0805L010YR Cross 0805 2012 Metric PPTC Resettable Fuses 0.1A 15V Tape in Reel

0805L010YR Cross 0805 2012 Metric PPTC Resettable Fuses 0.1A 15V Tape in Reel

Description

The 0805 Series PTC provides surface mount overcurrent protection for applications where space is at a premium and resettable protection is desired.

Features

RoHS compliant, lead-free and halogen-free

Fast response to fault currents

Compact design saves board space

Low resistance

Low-profile

Compatible with high temperature solders

Applications

• USB peripherals

• Disk drives

• CD-ROMs

• Plug and play protection for motherboards and peripherals

• Mobile phones - battery and port protection

• Disk drives

• PDAs / digital cameras

• Game console port protection

Electrical Characteristics

Model Marking 　 　 　 Maximum Resistance App.
V max Imax I hold I trip Pd Time To Trip
　 　 @25°C @25°C Typ. Current Time R i min R1max UL
(Vdc) (A) (A) (A) (W) (A) (Sec) (W) (W)
SMD0805R005SF 1 15.0 30 0.05 0.15 0.5 0.5 1.50 1.500 18.000 √
SMD0805R010SF 1 15.0 30 0.10 0.30 0.5 0.5 1.50 0.750 6.000 √
SMD0805R020SF 2 9.0 30 0.20 0.50 0.5 8.0 0.02 0.550 3.500 √
SMD0805R035SF 3 6.0 30 0.35 0.75 0.5 8.0 0.10 0.200 1.200 √
SMD0805R035SF12v 3 12.0 30 0.35 0.75 0.5 8.0 0.10 0.200 1.200
SMD0805R050SF 5 6.0 30 0.50 1.00 0.5 8.0 0.10 0.100 0.850 √
SMD0805R050SF12v 5 12.0 30 0.50 1.00 0.5 8.0 0.10 0.100 0.850
SMD0805R050SF16v 5 16.0 30 0.50 1.00 0.5 8.0 0.10 0.100 0.850
SMD0805R050SF24v 5 24.0 30 0.50 1.00 0.5 8.0 0.10 0.100 0.850
SMD0805R075SF 7 6.0 35 0.75 1.50 0.6 8.0 0.20 0.070 0.385 √
SMD0805R075SF12v 7 12.0 35 0.75 1.50 0.6 8.0 0.20 0.070 0.385
SMD0805R100SF 0 6.0 35 1.00 1.95 0.6 8.0 0.30 0.040 0.230 √
SMD0805R100SF12v 0 12.0 35 1.00 1.95 0.6 8.0 0.30 0.040 0.230
SMD0805R110SF 0 6.0 35 1.10 2.20 0.6 8.0 0.30 0.035 0.210 √
SMD0805R110SF12v 0 12.0 35 1.10 2.20 0.6 8.0 0.30 0.035 0.210
SMD0805R125SF 12 6.0 35 1.25 2.50 1.5 8.0 0.60 0.025 0.140 √
SMD0805R150SF 15 6.0 35 1.50 3.00 1.0 8.0 0.50 0.015 0.130 √

Temperature Rerating

Model Ambient Operation Temperature
-40°C -20°C 0°C 25°C 40°C 50°C 60°C 70°C 85°C
SMD0805R005SF 0.070 0.060 0.055 0.050 0.040 0.035 0.030 0.025 0.015
SMD0805R010SF 0.14 0.12 0.11 0.10 0.08 0.07 0.06 0.05 0.03
SMD0805R020SF 0.28 0.25 0.23 0.20 0.17 0.14 0.12 0.10 0.07
SMD0805R035SF 0.47 0.44 0.39 0.35 0.30 0.27 0.24 0.20 0.14
SMD0805R050SF 0.68 0.62 0.55 0.50 0.40 0.37 0.33 0.29 0.23
SMD0805R075SF 1.00 0.90 0.79 0.75 0.63 0.57 0.53 0.41 0.34
SMD0805R100SF 1.35 1.25 1.15 1.00 0.82 0.74 0.65 0.55 0.42
SMD0805R110SF 1.45 1.35 1.20 1.10 0.92 0.84 0.75 0.65 0.52
SMD0805R125SF 1.65 1.53 1.36 1.25 1.05 0.95 0.85 0.74 0.59
SMD0805R150SF 1.98 1.84 1.63 1.50 1.26 1.14 1.02 0.88 0.71

Thermal Derating Curve

0805L010YR Cross 0805 2012 Metric PPTC Resettable Fuses 0.1A 15V Tape in Reel

Average Time-Current Curve

0805L010YR Cross 0805 2012 Metric PPTC Resettable Fuses 0.1A 15V Tape in Reel

Size (mm)

0805L010YR Cross 0805 2012 Metric PPTC Resettable Fuses 0.1A 15V Tape in Reel

P/N A B C D E
Min. Max. Min. Max. Min. Max. Min. Min.
SMD0805R005SF 2.00 2.20 1.20 1.50 0.40 0.90 0.20 0.10
SMD0805R010SF 2.00 2.20 1.20 1.50 0.40 0.90 0.20 0.10
SMD0805R020SF 2.00 2.20 1.20 1.50 0.35 0.80 0.20 0.10
SMD0805R035SF 2.00 2.20 1.20 1.50 0.35 0.80 0.20 0.10
SMD0805R035SF12v 2.00 2.20 1.20 1.50 0.35 0.80 0.20 0.10
SMD0805R050SF 2.00 2.20 1.20 1.50 0.35 0.80 0.20 0.10
SMD0805R050SF12v 2.00 2.20 1.20 1.50 0.35 0.80 0.20 0.10
SMD0805R050SF16v 2.00 2.20 1.20 1.50 0.50 1.10 0.20 0.10
SMD0805R050SF24v 2.00 2.20 1.20 1.50 0.50 1.10 0.20 0.10
SMD0805R075SF 2.00 2.20 1.20 1.50 0.50 1.00 0.20 0.10
SMD0805R075SF12v 2.00 2.20 1.20 1.50 0.50 1.00 0.20 0.10
SMD0805R100SF 2.00 2.20 1.20 1.50 0.70 1.20 0.20 0.10
SMD0805R100SF12v 2.00 2.20 1.20 1.50 0.70 1.20 0.20 0.10
SMD0805R110SF 2.00 2.20 1.20 1.50 0.70 1.20 0.20 0.10
SMD0805R110SF12v 2.00 2.20 1.20 1.50 0.70 1.20 0.20 0.10
SMD0805R125SF 2.00 2.20 1.20 1.50 1.00 1.50 0.20 0.10
SMD0805R150SF 2.00 2.20 1.20 1.50 1.00 1.50 0.20 0.10

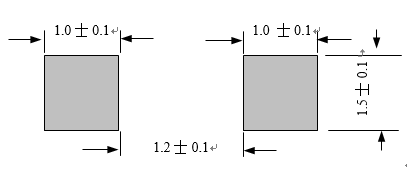

Recommended Pad Layout (mm.)

0805L010YR Cross 0805 2012 Metric PPTC Resettable Fuses 0.1A 15V Tape in Reel

Packaging Info

Part Number Quantity
SMD0805R005.010.020.035.050.SF 5,000 pcs/reel
SMD0805R075.100.110.125.SF 4,000 pcs/reel
SMD0805R150SF 3,500 pcs/reel

Tape & reel packaging per EIA481-1
