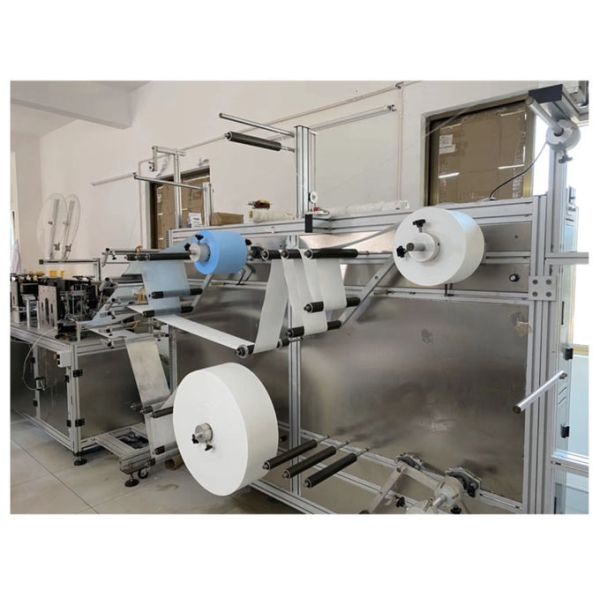

50HZ Frequency Disposable Breathing Mask Machine High Productivity Voltage 220V

product model:

driving mode: servo motor and stepping motor

machine voltage: single-phase 220V

machine size: 6500 * 3600mm * 2000mm

control panel: man-machine interface (touch screen) and button

machine frequency: 50HZ

Material used: PP non-woven composite fiber

Ultrasonic system: 15-20 KHZ

Product specification: standard model 175*95mm special model 180*95mm 145*90mm 125*90mm

Machine capacity: 100-120 tablets/min

Note: it can be connected to two ear tape machines for production

Product advantages:

1. full automatic output, mask ontology has ears machine to automatically, reduce the labor costs, reduce interference May

2. The ear band machine does not need to wait for work, and the adaptive interactive processing system can comprehensively improve the productivity

3. Built-in anti-deformation and anti-displacement device, to ensure stability and reliability, all-weather 100% qualified input

4. Preset quantitative integrated output, neatly stacked, never scattered, hygienic and reliable

5. From the production mask ontology to meet bridge of the nose, ears with soluble ears with spot welding, fully automated, a molding, do not need any artificial operation:

6. The size of the nose bridge strip and the size of the body can be configured according to the drawings provided by the customer.

7. Face mask folding can be adjusted according to their own needs

8. The machine adopts computer programmed control and photoelectric detection, which improves the stability of the machine and reduces the failure rate of the machine

9. The machine adopts frequency conversion control to accurately control the production efficiency and production speed. Users can also adjust the production speed according to their own actual situation.

10. Compared with semi-automatic equipment, this set of equipment has higher efficiency, humanized design and convenient operation, which solves the problems of low working efficiency, difficult recruitment and high wages of workers in mask manufacturing enterprises.

11. From the production of the mask itself to the welding of the bridge of the nose and the spot welding of the ear strap, the product packaging is completely automated and can be completed in one time without any manual work

12. The size and length of the nose bar can be configured according to customer requirements;

13. Feeding system: the machine adopts aluminum alloy structure, beautiful and strong, automatic feeding system, setting of tensioning degree, adjusting the tensioning degree of the cloth, thus effectively ensuring the beauty and flatness of the finished product;

14. The folding position of the mask can be adjusted freely according to requirements, with accurate positioning and no displacement

15. Control system:

(1) computer programmed control photoelectric detection device, high stability, low failure rate

(2) automatic counting, can accurately control the production efficiency and production speed;

(3) variable frequency control, the user can adjust the production speed according to the actual needs;

(4) rotary control box, the user can adjust the operation direction according to the actual needs

(5) discharge system: photoelectric induction, automatic electrostatic removal device, automatic product receiving device

Welding principle: by means of air compressor to provide air power into the cylinder for a linear reciprocating motion of gas and raising the pressure in compressor cylinder piston compression air supply from one side of the piston can produce pressure, air pressure forces the pistons to generate thrust, through the titanium alloy welding head with two ultrasonic welding head surface rubbing against each other (high frequency vibration of tens of thousands of times per second) to form a fusion between the molecular layer
