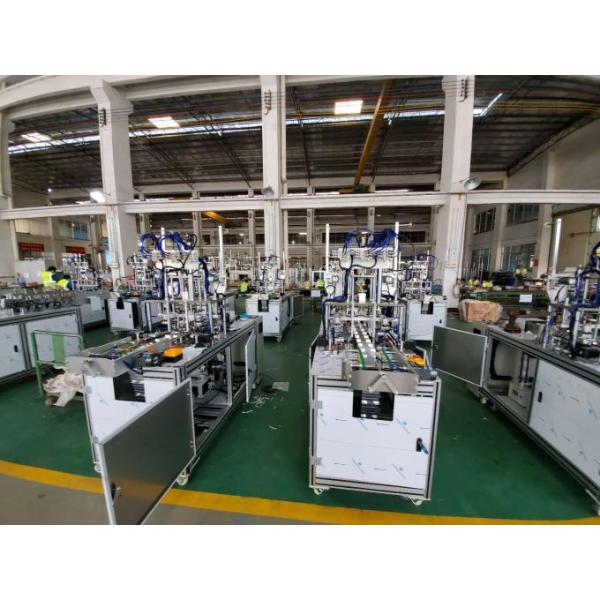

Anti Saliva Non Woven Ultrasonic Mask Making Equipment
Anti Saliva Non Woven Ultrasonic Mask Making Equipment
Anti Saliva Non Woven Ultrasonic Mask Making Equipment
Anti Saliva Non Woven Ultrasonic Mask Making Equipment
Specifications
Brand Name :
UC-Intelligence
Model Number :
UC-FM202083Y
Certification :
ISO/GB
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20 Set Per Month
Delivery Time :
in - stock
Packaging Details :
Wooden Case
Name :
Ultrasonic Mask Making Equipment
Automatic grade :
Full automatic
Condition :
New
After-sales service :
Engineer available to service merchinery overseas
Application :
Anti Saliva Nonwoven fabric disposable machine
Final products :
Disposable face mask
Description

Anti Saliva Non Woven Ultrasonic Mask Making Equipment

Detailed Product Description

Name: Automatic Face Mask Making Machine Control: PLC Control
Applicable Materials: PP, Non-woven Fabric, Synthetic Fiber Power Supply: 110V~220V/230V/380V/50HZ/60HZ
Application: Dust Mask Layers Of The Mask: 3 ~ 4

Ultrasound Mask Making Equipment , Face Mask Maker Machine Fully Automatically

Description

This machine adopts ultrasound technology to produce finished folding masks automatically.It can realize Anti-fog films and elastics welding; folding; molding; cutting; wastes eliminating and product output function onone machine. One worker can operate easily .

Features:

1. Adopting aluminum alloy rack which is more light and solider

2. High stability

3. one output line , high capacity

4. Fully Automatically , make outside earloop welding togther with mask producing process which can save labor , once non woven raw material in unwinding part use up , the machine can automatically stop .

Automatic Face Mask Making Machine Technical parameters

PLC brand Mitsubishi / Rexroth
Air Pressure 0.5~0.6Mpa
Power supply 110V`380V 50HZ /60HZ
servo motor Domestic quality
Control System PLC
sensor Omron, Seak
Pneumatic Components SMC Yadek
Operation screen 10 inch capacitive screen
Bearing NSK
Lead screw Hiwin
Security Safety light grid
Equipment structure 2 ply
equipment power 3KW
equipment weight 580KGS
Driven Ordinary motor + servo
Number of applicable layers 3-layer
Applicable materials PP, non-woven fabric, synthetic fiber
Processing methods Ultrasonic welding
Finished product specifications 175*95mm
Technical characteristics
1. Three layers of fabric are automatically aligned and feed, and weilding sys use ultrasonic waves are continuously pressed.
2. The production line adopts the structure of 2ply, with high production efficiency
3. Nose clips are automatically cut and welded by ultrasound

FAQ

1. Q: Can you provide overseas services?

A: Yes, we can.

2. Q: How to use the machine?

A: Before sending the packaging machine to you, we will install it and test it, and then pack the whole device in a wooden box, so you do n’t need to install it again,

3. Q: Test packaging before shipment?

A: we will surely 100% of the experimental test machine will be normal without problems.

4. Q: What is the warranty period?

A: One year warranty for the whole machine.

Anti Saliva Non Woven Ultrasonic Mask Making Equipment
