180W 140lm / W Dimmable LED Street Lights 3030 Cree Chips High Power
180W 140lm / W Dimmable LED Street Lights 3030 Cree Chips High Power
180W 140lm / W Dimmable LED Street Lights 3030 Cree Chips High Power
180W 140lm / W Dimmable LED Street Lights 3030 Cree Chips High Power
180W 140lm / W Dimmable LED Street Lights 3030 Cree Chips High Power
180W 140lm / W Dimmable LED Street Lights 3030 Cree Chips High Power
180W 140lm / W Dimmable LED Street Lights 3030 Cree Chips High Power
180W 140lm / W Dimmable LED Street Lights 3030 Cree Chips High Power
180W 140lm / W Dimmable LED Street Lights 3030 Cree Chips High Power
180W 140lm / W Dimmable LED Street Lights 3030 Cree Chips High Power
Specifications
Brand Name :
SNT
Model Number :
SKLEDMZ7LD180W002C
Certification :
CE ETL DLC CCC ROHS
Place of Origin :
China
MOQ :
1pcs sample available
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
100pcs/Day
Delivery Time :
7-10 days for qty<500pcs, 20 days for qty<2000pcs
Packaging Details :
Plastic bag/pcs, customed foam, exporting cartons
Lumenious efficiency :
140lm/w
Color Temperature :
2700-6500K
Voltage :
120-277VAC
LED Chips :
3030
Color :
Grey/Silver Housing
Working Temperature :
-40℃~85℃
CRI :
>70
Power Factor :
>0.95
Lifespan :
>50000hrs
Warranty :
5 Years
Material :
Die-casting Aluminum housing
Dimmable :
Opitional
Description

180W 140lm/w LED Street Light 3030 Cree Chips IP66 Horizontal Road Light High Power Road Light 5 Years Warranty

Application Of LED Street Light:

Our LED Street Lights can be Suitable for Factory, Garden, highway toll station, gas station,
Road Light, exhibition hall, gymnasium, Car Parking Area, Citizen and other industrial and commercial
lighting purposes. More Stablely and Non-Maintanence.


Product Parameter:

Model SKLEDMZ7LD36W002C SKLEDMZ7LD40W002C SKLEDMZ7LD60W002C SKLEDMZ7LD90W002C
Input Voltage 100-277VAC 50/60Hz
Input Current 0.12-0.4 0.13-0.44 0.2-0.67 0.3-1
Input Watt(W) 36±5% 40±5% 60±5% 90±5%
Lumens(Lm) 4160 5200 7800 11700
CRI 70
Lumen Maintenance (2000Hrs) 98%
IP Class IP66
Beam Angle TYPEII-M TYPEIII-S
Working Temp. -25℃--40℃
Material ADC12
Storage Environment -40℃~85℃ RH10%~95%


Model SKLEDMZ7LD120W002C SKLEDMZ7LD150W002C SKLEDMZ7LD180W002C SKLEDMZ7LD200W002C
Input Voltage 100-277VAC 50/60Hz
Input Current 0.4-1.33 0.5-1.67 0.16-2 0.67-2.22
Input Watt(W) 120±5% 150±5% 180±5% 200±5%
Lumens(Lm) 15000 19500 23400 26000
CRI 70
Lumen Maintenance (2000Hrs) 98%
IP Class IP66
Beam Angle TYPEII-M TYPEIII-S
Working Temp. -25℃--40℃
Material ADC12
Storage Environment -40℃~85℃ RH10%~95%

Model SKLEDMZ7LD220W002C
Input Voltage 100-277VAC 50/60Hz
Input Current 0.73-2.44
Input Watt(W) 220±5%
Lumens(Lm) 28600
CRI 70
Lumen Maintenance (2000Hrs) 98%
IP Class IP66
Beam Angle TYPEII-M TYPEIII-S
Working Temp. -25℃--40℃
Material ADC12
Storage Environment -40℃~85℃ RH10%~95%

180W 140lm / W Dimmable LED Street Lights 3030 Cree Chips High Power

Product Size Of LED Street Light:

(36W/40W/60W/90W/120W as following size)
180W 140lm / W Dimmable LED Street Lights 3030 Cree Chips High Power


(150W/180W/200W/220W as following size)

180W 140lm / W Dimmable LED Street Lights 3030 Cree Chips High Power

Installation Way of This Mini Streetlight
Horizontal Installation like as following picture

180W 140lm / W Dimmable LED Street Lights 3030 Cree Chips High Power

Vertical Installation like as following picture

180W 140lm / W Dimmable LED Street Lights 3030 Cree Chips High Power

Adjustable For any direction

180W 140lm / W Dimmable LED Street Lights 3030 Cree Chips High Power

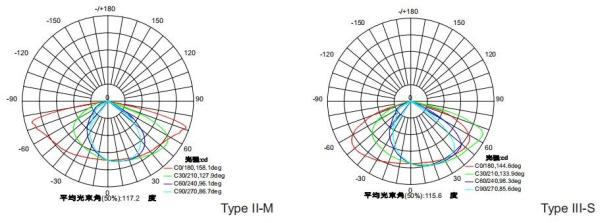

Street Light Photometric Distribution:

(36W/40W/60W/90W as following chart)

180W 140lm / W Dimmable LED Street Lights 3030 Cree Chips High Power

(120W/150W/180W/200W/220W as following chart)

180W 140lm / W Dimmable LED Street Lights 3030 Cree Chips High Power



Features of Street Light:

1. High quality LED Streetlight Power suply 60w-240W are availabe
2. Our Street Lighting Ultr-high efficiency, up to 140lm/w.
3. All Street fixture power Adapting Original Lumileds 3030 SMD chip, Inventronics driver, 5 years warranty.
4. All Road Lighting Fixtures Die casting aluminum housing with good heat sink, suitable for hostile environment.
5. Our LED High Performance Streetlight had IP65 IP rating: closed corrosion-proof silicone ring for dustproof and waterproof.
6. Street Lamp surface with patent design, corrosion-resistant, shake-resistant and artistic appearance
7. Extremely Street light weight to enhance safety use and installation, 10KV surge handing capability.
8. Special suiface treatment, suitable for sea side areas lighting well.
9. Used as Parking Area Lighting or Road Light Eco-friendly: No lead, mercury, UV interference
10. Long lifespan: more than 50000 hours, If LED works 11-12 hours per day, it can work over 10 years.
11. Simple installation, easy disassembly, wide application.
12. Certificate: CE, RoHS, ETL,DLC
13. All Power IES File can be available.
14. Any projectors, we can offer free Dialux Design with our High quality factory direct sale Streetlight.





Maintenance / Repairing Instructions:
1.Make sure LED Street Light power has been turned off before maintenance or repairing.
2.Clean the Streetlight cover regularly to maintain high transmission of light.
3.Clean up the Street lights dust from the cover and heatsink regularly to keep sound heat
dispersion.
4.Be careful not to use water or corrosive solution for cleaning LED Street Lighting Fixture, preferably with a dry cloth.(Because all of our Flood Or Projector High power Street Lamps will be tested by 24hrs under water, it is IP 65, can wash with water).

LED Street Lights Process:

180W 140lm / W Dimmable LED Street Lights 3030 Cree Chips High Power
