Specifications
Brand Name :
SINOMANU
Model Number :
SMI-D02-10W
Certification :
CE UL SAA PSE DLC
Place of Origin :
ShenZhen , China
MOQ :
10 PCS
Price :
USD4.5 --5.5USD
Payment Terms :
T/T, L/C, Western Union, MoneyGram, Paypal
Supply Ability :
30000PCS/month
Delivery Time :
3-10 working days ( depend on quantity )
Packaging Details :
1PCS in a box , 60PCS in carton
Watt :
10W
Lumen :
1200LM
Brand of LED :
Epistar
Cover :
PC panel
Dimension :
D90*H70MM
Warranty :
3 Years or 5 Years
Description

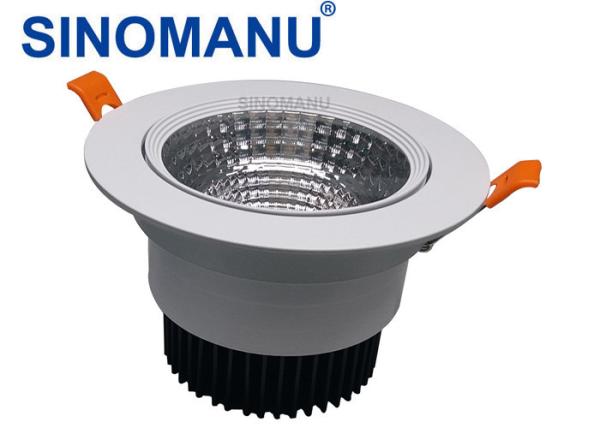

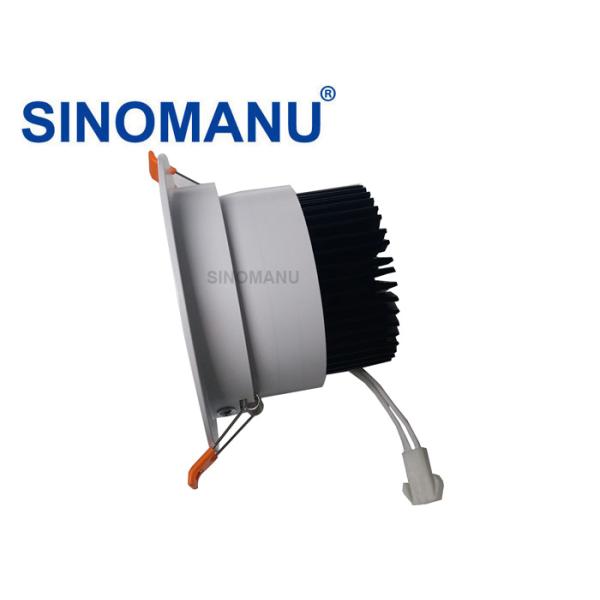

Shopping mall LED recessed down light cut 75MM down light lamp aluminum heat sink

It is well known that Metal halide lamp ( MHL ) , compact fluorescent lamp ( CFL ) contains the mercury and other kind of toxic material . in our daily life , if the MHL or CFL lamp be broken by chance , the mercury would come out and bring threats to our health , especially for child . when it fall on the ground , it would pollute earth and water . to overcome this obvious defects , we have designed a kind of LED recessed down lights , it is environment friendly totally , it can replace traditional MHL or CFL as the lighting source of down lighting fixtures .

Details for Shopping mall LED recessed down light cut 75MM down light lamp aluminum heat sink below

Product Name LED recessed down lights
Model Number SMI-D02-10W
Watt 10Watt
Input Voltage AC100-277V 50 - 60Hz
Lumen Efficiency 120LM/W
Brand of LED Epistar / Bridgelux
Color Temperature 2700K -- 6500K
RA CRI 82
Beam Angle 15D 24D 45D
Material of Heat sink 6063 Aluminum alloy
Color or Heat sink Black

Power Factor ( PF) 0.95
THD 12%
Brand of LED driver SINOMANU
Efficiency of LED driver 88%
Cut out 75MM
Dimension D90*H70MM
Application HSP CFL MHL down lighting replacement
Certificate CE RoHS UL SAA PSE BIS
Working Temperature -20℃ -- 50℃
Working Lifespan 50000Hours
Warranty 3 or 5 Years

Features of Shopping mall LED recessed down light cut 75MM down light lamp aluminum heat sink as followed


⑴. LED recessed down lights use aluminum housing , the performance is good in heat dissipation , so , It can be used in enclosed fixtures for long time . ( in market , many of LED recessed down lights do not have aluminum housing , easy to fail in enclosed fixtures )

⑵. About LED recessed down lights , We have strict quality control standard , Each LED recessed down lights will be checked by quality control department , all pass Power test , and 24 hours aging test , as well as shock proof test , in addition , all the LED recessed down lights will be cleaned before packing .

⑶. LED recessed down lights use external isolated and constant current LED driver , SINOMANU have 9 years experience in this kind of external LED driver , the failure rate is very low in past years

⑷. To make customer be satisfied , in past years , about LED recessed down lights , SINOMANU offer quick response service to customer , the inquiry about product will be answered in 2 hours even shorter in working day .

⑸ About LED recessed down lights , we can supply dimmable and non-dimmable version , the dimmable version including 0-10V 1-10V , and DALI dimming , in a word ,we have all you want about LED recessed down lights

Shopping Mall Colour Changing LED Downlights PC Panel Cover 3 Years Warranty

LED recessed down lights with high lumen efficiency 120LM/W and high CRI 82, and do not have mercury or other harmful material , it is shock proof , and it can be used in enclosed fixtures for a long time . So , such a kind of wonderful product , if you want to try , please let us know , thanks .
