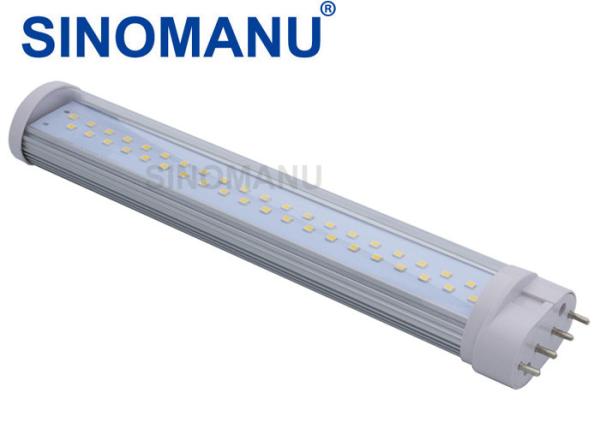

1100LM 9W 2G11 LED Tube 4 PIN tube 2G11 LED 2G11 Base LED Tube light
The heat - sink of SINOMANU 2G11 LED tube lamp made of 6063 aluminum alloy (thick ) , the performance in heat dissipation is good enough , so , it can be used as the lighting source in the enclosed retrofit fixtures . the PC over of 2G11 Tube made of Fire proof PC ( UL 94 - V0 ) , have 3 kind of type to choose , transparent PC cover , milk PC cover , stipple PC cover . most of customer choose Milk PC cover , because when working it seems same with traditional fluorescent tube ( CFL )
Details for 1100LM 9W 2G11 LED Tube 4 PIN tube 2G11 LED 2G11 Base LED Tube light below
Item Name | 2G11 LED Tube | Model Number | SMI-P03-9W |
Watt | 9Watt 1100LM | Input Voltage | AC90 - 277V 50 - 60Hz |
Lumen Efficiency | 120LM / Watt | Quantity of LED | 45PCS |
Brand of LED | Epistar | Type of LED | SMD LED 2835 |
Color temperature | 2700K - 6600K | RA / CRI | 82 |
Beam Angle | 120D | Base | 2G11 |
Material of housing | 6063 Aluminum alloy | Color of housing | Silver |
Powr Factor ( PF ) | 0.95 | THD | < 12% |
More information of 1100LM 9W 2G11 LED Tube 4 PIN tube 2G11 LED 2G11 Base LED Tube light below
Brand of LED driver | SINOMANU | Efficiency of driver | 89% |
Type of driver | Isolated and constant current | UGR | < 19% |
Water Proof | IP54 | Shock Proof | IK10 |
Dimension ( 2G11 ) | L320*W42*H28MM | PC cover | Clear / Milky / stripe |
Be used in enclosed fixture | Positive | Certificates | PSE CE UL SAA BIS |
Working Temperature | -30℃ -- 55℃ | Application | Retrofit lighting |
Life Span | 50000 Hours | Warranty | 3 Years |
Features of 1100LM 9W 2G11 LED Tube 4 PIN tube 2G11 LED 2G11 Base LED Tube light as follows
⑴. SINOMANU Supply 3 years warranty to 2G11 LED tube light ( built in driver ) , 5 years warranty to 2G11 LED tube light ( external LED driver )
⑵. About 2G11 LED tube light , to supply customer more choice in color temperature , There are all regular color temperature for your choice , for instance 2700K , 3000K , 4000K , 5000K , 6000K . cool light makes people feels bright , natural light makes people feels nature , warm white make people feels warm , there is another thing , the days light is about 5000K , it feels like the sunlight of noon . if you use it in bed room , 3000K is recommend , 4000k for reading room , 5000k for meeting room .
⑶. Different input voltage for different areas , for example , AC90 - 110V , AC200 - 240V , AC 277V 50 - 60Hz , and the driver have surge proof protection
⑷. SINOMANU have full series of 2G11 LED tube lights , 225MM , 320MM , 415MM , 535MM in length
2G11 LED tube high lumen efficiency and high CRI , and do not have mercury or other harmful material like CFL tube , it is shock proof , and it can be used in enclosed fixtures for a long time . So , such a kind of wonderful product , if you want to try , your inquiry is welcome
