Specifications
Brand Name :
SINOMANU
Model Number :
SMI-P03-22W
Certification :
CE UL SAA PSE DLC
Place of Origin :
ShenZhen , China
MOQ :
10 PCS
Price :
USD8.0-9.5.0USD
Payment Terms :
T/T, L/C, Western Union, MoneyGram, Paypal
Supply Ability :
15000 PCS/month
Delivery Time :
3-10 working days ( depend on quantity )
Packaging Details :
1PCS in a box , 49PCS in carton
Input Voltage :
AC90-277V
Lumen efficiency :
120LM/W
RA CRI :
82
Dimension :
D535*W42*H28MM
Warranty :
3 Years
Life span :
50000 hours
Description

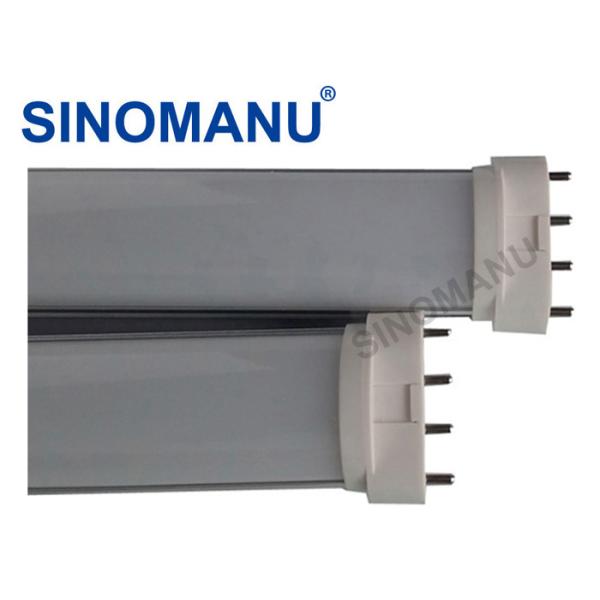

High brightness 535MM 2G11 LED Tube 4 PIN PL light 2G11 LED 120D beam angle

In modern days , people pay the attention to the environment more and more , the conception of human just have one earth deep in heart . in lighting filed , in the past , the harmful material has been used in the lighting products , for example , the mercury has been used in the fluorescent tube light , that make this tube be non - recyclable when it failed . Now , this kind of problem have be changed by LED technology in lighting field . SINOMANU LED 2G11 Tube light , use LED chip as lighting source , and use aluminum and PC as housing . it do not contain any of mercury or other harmful material and it is recyclable totally .

Details for high brightness 535MM 2G11 LED Tube 4 PIN PL light 2G11 LED 120D beam angle below

Item Name 2G11 LED Tube Model Number SMI-P03-22W
Watt 22Watt 2500LM Input Voltage AC90 - 277V 50 - 60Hz
Lumen Efficiency 120LM / Watt Quantity of LED 117PCS
Brand of LED Epistar Type of LED SMD LED 2835
Color temperature 2700K - 6600K RA / CRI 82
Beam Angle 120D Base 2G11
Material of housing 6063 Aluminum alloy Color of housing Silver
Powr Factor ( PF ) 0.95 THD < 12%

More information of 535MM 2G11 LED Tube 4 PIN PL light 2G11 LED 120D beam angle below

Brand of LED driver SINOMANU Efficiency of driver 89%
Type of driver Isolated and constant current UGR < 19%
Water Proof IP54 Shock Proof IK10
Dimension ( 2G11 ) L535*W42*H28MM Dimension ( 2G10 ) L535*W42*H28MM
Be used in enclosed fixture Positive Certificates UL CE PSE SAA
Working Temperature -30℃ -- 55℃ Application Commercial lighting
Life Span 50000 Hours Warranty 3 Years

Features of high brightness 535MM 2G11 LED Tube 4 PIN PL light 2G11 LED 120D beam angle as followed


A . In past years , 2G11 LED tube light used for retrofit lighting in super market, shopping mall , meeting room and so on . make the lighting effect of this place to a new level .


B . OSRAM LUMILEDS PHILIPS EPISTAR SAMSUNG BRIDGELUX MEANWELL , all of them are famous brand in LED lighting industry . SINOMANU have developed a very close working relationship with them , with the back up of partner , the performance of SINOMANU is better and better in the field of LED lighting , now ,SINOMANU as a brand in china and dedicated to become a worldwide brand in near future by high quality products and best service , let the best be best .

C . 2G11 LED Tube lights covered by PC cover , plus special design in aluminum housing , the the main body of 2G11 LED Tube can reach IP54 , it is not water proof , but it is enough to use in indoor environment , even some kind of damp location .

D . Different input voltage for different areas , for example , AC90 - 110V , AC200 - 240V , AC 277V 50 - 60Hz , and the driver have surge proof protection

4 Pin PL 2G114 Foot LED Tube Light Surge Proof Protection For Commercial

SINOMANU 2G11 LED Tube light have high lumen output 120LM / W , and high RA CRI 82 . such kind of excellent performance make it be a trend to replace old CFL 2G11 Tube . have any question , please do not hesitate to contact us .
