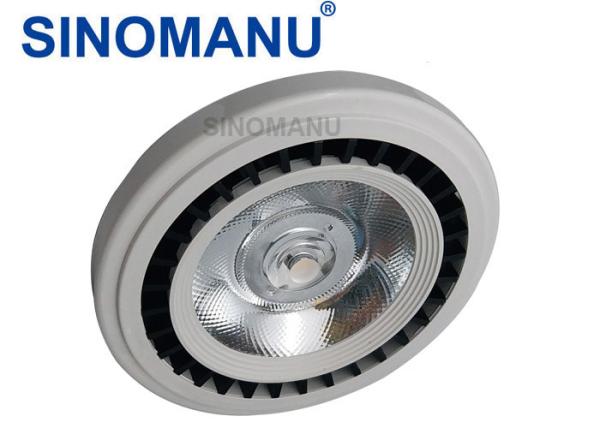

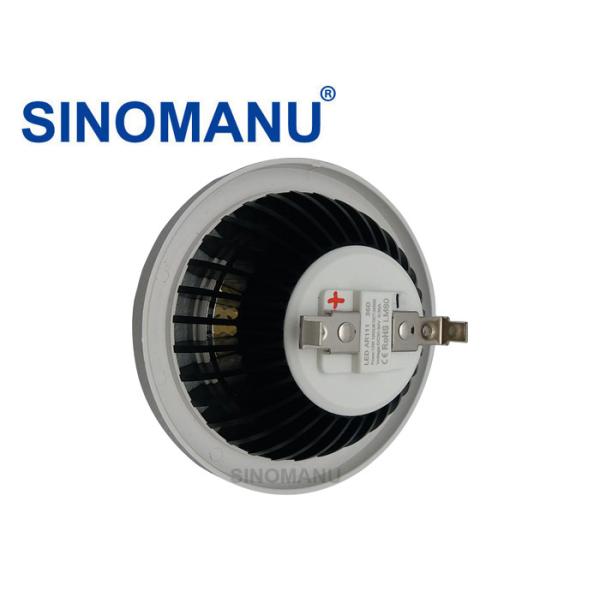

DC24V AR111 LED lamp 15W beam angle 12D replace AR111 halogen lamp bulb
About indoor ceiling lighting , PHLIPS and OSRAM G53 halogen AR111 lights has been used widely , the lighting source of this kind of AR111 lights is halogen lamp , which have 360Degree in beam angle , and it be changed to small beam angle we need by reflector . but in the process of changing , most of the light be wasted . so , the lumen efficiency of halogen AR111 lights is very low . to solve such kind of waste , SINOMANU has designed a kind of LED AR111 lamp , it use LED as lighting source , and can have small beam angle by lens directly . in application , it is 6 times better than halogen AR111 lamp in energy saving , that is a milestone for AR111 lamp for sure .
Details for DC24V AR111 LED lamp 15W beam angle 12D replace AR111 halogen lamp bulb below
Item Name | AR111 LED lamp |
Model Number | SMI-A02-15W |
Watt | 15Watt 1500LM |
Input Voltage | AC100-277V 50 - 60Hz or AC/DC12-24V |
Lumen Efficiency | 100LM/W |
Brand of LED | Epistar / Bridgelux |
Color Temperature | 2700K -- 6500K |
RA CRI | 82 |
Beam Angle | 12D 24D 36D |
Material of Heat sink | 6063 Aluminum alloy |
Color or Heat sink | Black |
Power Factor ( PF) | 0.95 |
THD | 12% |
Brand of LED driver | SINOMANU |
Effificency of LED driver | 88% |
Type of Base / socket | G53 / GU10 / E27 |
Dimension | D111*H55MM / D111*H69MM / D111*H76MM |
Application | Retrofit lighting |
Certificate | CE RoHS UL SAA PSE BIS |
Working Temperature | -20℃ -- 50℃ |
Working Lifespan | 50000Hours |
Warranty | 3 or 5 Years |
Features of DC24V AR111 LED lamp 15W beam angle 12D replace AR111 halogen lamp bulb
⑴. SINOMAU have 7 years experience in E27 GU10 G53 AR111 LED lamp , know this kind of retrofit spot lighting products very well , have plenty of experience in suck kind of lights , which let us have advantage in the market . in past years , SINOMANU dedicated to supply excellent AR111 LE Lamp , to let the customer have a positive feedback about Made in china . in addition , only premium AR111 LED lamp can be really energy saving and money saving when using , therefore , choose the best is always the best for best life .
⑵. G53 AR111 LED lamp use COB LED as lighting source , with Bridgelux LED chip inside . the COB LED are high lumen out put and low light decay . in addition , it can pass LM80 ERP test . the AR111 lamp can reach 100LM/W CRI82 when with small beam angle output .
⑶. Usually , G53 GU10 AR111 LED lamp has be used in retrofit lighting fixtures for spot lighting , in application , the lighting effect is good , not like halogen AR111 lamp , the heat sink of LED AR111 sink made of 6063 aluminum , which have an excellent performance in heat dissipation to let the led chip work in a proper temperature , therefore , AR111 LED lamp can be used in enclosed retrofit fixtures for a long time
⑷. 15W GU10 G53 AR111 LED lamp can replace 90W PHILIPS or OSRAM 90W halogen AR111 lamp , save more than 85% . that will bring a huge decrease in energy cost each day .
SINOMANU G53 LED AR111 lights can be used in retrofit lighting application in shopping mall and museum , it is an ideal replacement to previous old style Halogen AR111 lamp , if you have any question about this kind of new style LED AR111 lamp , please let us know ,thanks .
