Specifications
Brand Name :
SINOMANU
Model Number :
SMI-H08-800W
Certification :
CE UL SAA PSE UL
Place of Origin :
ShenZhen , China
MOQ :
6PCS
Price :
USD520.0 -- 542.0/PCS
Payment Terms :
T/T, L/C, Western Union, MoneyGram PAYPAL
Supply Ability :
6000PCS/Month
Delivery Time :
2-14 working days ( depend on quantity)
Packaging Details :
1pcs in a carton 860*720*280MM/CTN 29.0KG/CTN
Power :
800 Watt
Voltage :
AC90-305V
Brand of LED :
LUMILEDS
Lumen efficiency :
145LM/W
Lumen output :
120000
CCT :
2700K - 6000K
Beam angle :
25D 65*160D
UGR :
<19%
Description

CE UL SAA approved LED high mast lights 145LM/W CRI80 replace Metal halide HPS lamp high mast fixture

We are glad to introduce our solution to traditional high mast or high pole lighting replacement , that is our 800Watt LED high mast lights , which is brighter and higher in RA CRI ( 82 ) compare with traditional Metal halide lamp , high pressure sodium high mast fixtures ,compact fluorescent high mast fixtures , and so on

Details for CE UL SAA approved LED high mast lights 145LM/W CRI80 replace Metal halide HPS lamp high mast fixture below

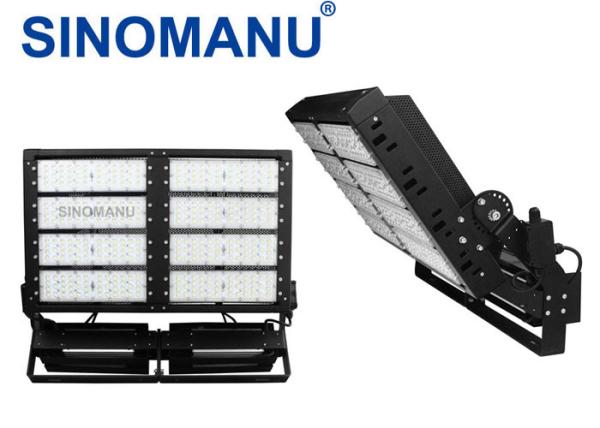

Item LED High Mast lights
Model Number SMI-H08-800W
Watt 800 Watt
Input Voltage AC90-305V 50-60Hz
Quantity of LED 352PCS
Lumen efficiency 145LM/W 120000LM in total
Type of LED SMD LED 5050 (8 LED chips inside)
Brand of LED LUMILEDS
Color Temperature 2600K - 6000K
RA CRI 82
Beam Angle 25Degree 65*140Degree
Material of heat sink Pure Aluminum
Color of heat sink Black
Power Factor(PF) 0.95
THD <12%
Brand of LED driver MEAN WELL (HLG series)
Efficiency of LED driver 92%
UGR <19%
Dimension L754*608*H166MM
Application Old style MHL HPS HID fixture replacement
Cetfificates CE RoHS UL SAA PSE BIS
Working Temperature -30℃ - 55℃
Working lifespan 50000 Hours
Warranty 7 Years

The advantage of CE UL SAA approved LED high mast lights 145LM/W CRI80 replace Metal halide HS lamp high mast fixture

A . SINOMANU Supply7 years warranty to 800watt high mast LED lights. The practical life span over 50000Hours .

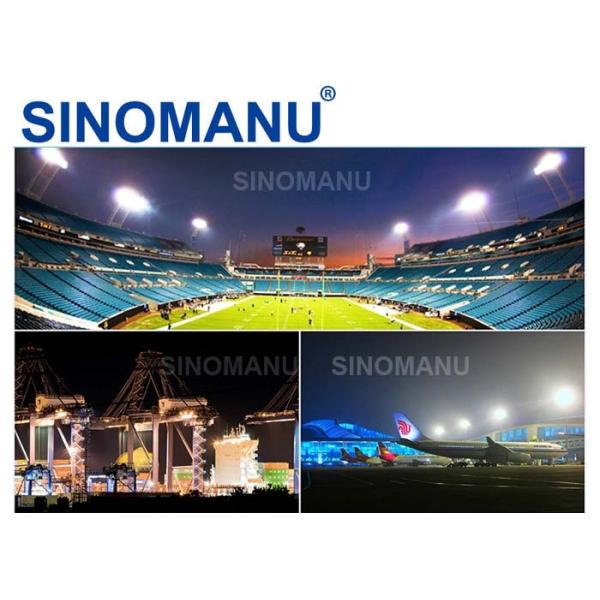

B. 800 watt High mast LED lights Applications : Huge warehouse lighting , big stadium lighting , sea port lighting , air pot lighting , and so on .


C. 800 watt High mast LED lights are CE RoHS SAA PSE UL BIS approved . it can meet demands of global market absolutely

D. Because of excellent performance in heat-dissipation , It can be used in enclosed fixtures for long time .

E . Old HPS MHL HID high mast fixtures have short life ,but high mast LED lights have a super long lifespan 50000hours above , that can save a lot of labor cost in changing failure lamp compare with old style MHL HID lamp fixtures .

.

F . 800 watt high mast LED lights can supply dimmable and non-dimmable version , the dimmable version including 0-10V 1-10V resistance dimming and DALI dimming , in a word ,we have all you want about highmast LED lights .

G . SINOMANBU 800 watt high mast LED lights with pre-install bracket , that make it is easier to replace old HID MHL HPS highmast fixtures directly .

120000 Lumen Output Street Light Mast , SAA Approved LED Lighting High Mast

SINOMANU 800Watt LED high mast lights can be widely used for Huge stadium lighting , airport lighting , sea port lighting square lighting and so on .
