Specifications
Brand Name :
SINOMANU
Model Number :
SMI-H08-800W
Certification :
CE UL SAA PSE UL
Place of Origin :
ShenZhen , China
MOQ :
5PCS
Price :
USD520.0 -- 542.0/PCS
Payment Terms :
T/T, L/C, Western Union, MoneyGram PAYPAL
Supply Ability :
5000PCS/Month
Delivery Time :
2-14 working days ( depend on quantity)
Packaging Details :
1pcs in a carton 860*720*280MM/CTN 29.0KG/CTN
Power :
800 Watt
Voltage :
AC90-305V
Brand of LED :
LUMILEDS
Type of LED :
SMD LED 5050 (8chips inside)
Water Proof :
IP67
CCT :
5000K
Beam angle :
25D 65*160D
UGR :
<19%
Description

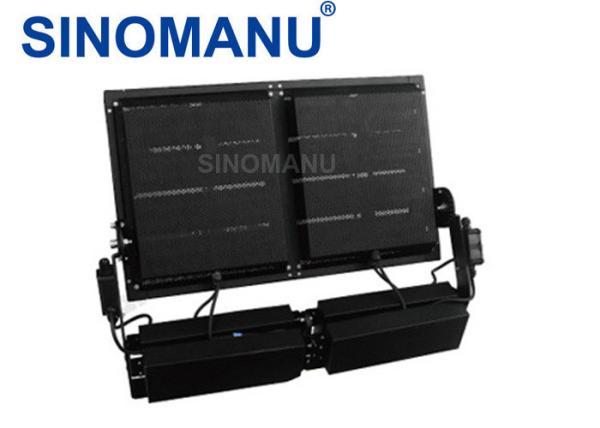

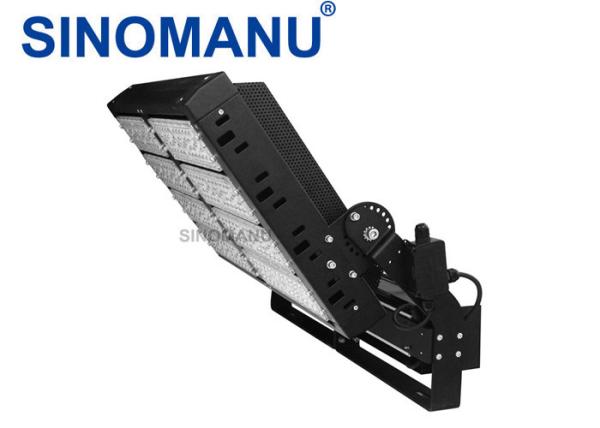

AC90 - 305V LED high mast lights IP65 800W for outdoor stadium high mast lighting square lighting

High mast lights play a very important part in out door high pole lighting , for example , stadium lighting , square lighting , Old fashioned metal halide fixtures , High pressure sodium fixtures , Compact fluorescent high mast fixtures , the defect of them are obviously , for instance , low lumen efficiency ( 50 --70LM/WATT) , low RA CRI (25 -- 60) . to make high mast lighting to a new history , we developed a kind of high mast LED lights to customers ,energy saving by 55% - 85%) . after use our high mast LED lights , customer have a obvious decrease in electricity bill .

Details for AC90 - 305V LED high mast lights IP65 800W for outdoor stadium high mast lighting square lighting below

Item LED High Mast lights
Model Number SMI-H08-800W
Watt 800 Watt
Input Voltage AC90-305V 50-60Hz
Quantity of LED 352PCS
Lumen efficiency 145LM/W 120000LM in total
Type of LED SMD LED 5050 (8 LED chips inside)
Brand of LED LUMILEDS
Color Temperature 2450K - 6000K
RA CRI 82
Beam Angle 25Degree 65*140Degree
Material of heat sink Pure Aluminum
Color of heat sink Black
Power Factor(PF) 0.95
THD <12%
Brand of LED driver MEAN WELL (HLG series)
Efficiency of LED driver 92%
UGR <19%
Dimension L754*608*H166MM

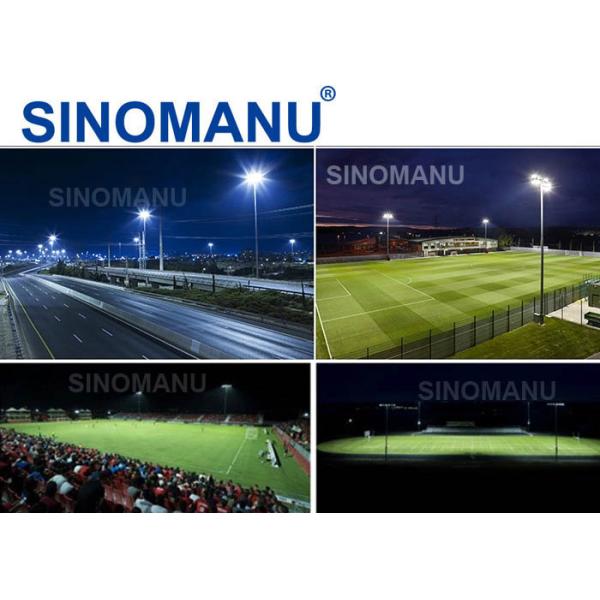

Application 2000watt Metal halide lamp high mast fixture replacement
Cetfificates CE RoHS UL SAA PSE BIS
Working Temperature -30℃ - 55℃
Working lifespan 50000 Hours
Warranty 7 Years

The advantage of AC90 - 305V LED high mast lights IP66 800W for outdoor stadium high mast lighting application below

A. 800Watt high mast LED lights have excellent lighting effect , without black spot , or black area , the light is very even on the working level .
B. SINOMANU high mast LED lights have Multiple power to choose , 300Watt , 400Watt , 500Watt , 600Watt , 800Watt , 1000Watt . you always can find the proper from us easily


C. SINOMANU 800watt High mast LED lights can be used to replace compact fluorescent high mast fixture , metal hairslide lamp high mast fixture, High pressure sodium lamp high mast fixture , and so on .


D . Unlike old fashioned highbay (need time to warm up ) , the stars time of 80watt high mast LED lights less than 0.4S , that make lighting feel good

Square 50000 Hours LED High Mast Light For Outdoor Stadium 160D Beam Angle

800watt high mast LED lights have 2 kind of beam angle to choose , 25D 65D*160D . when purchase , please choose right beam angle according to the installation height ,and lux you need on the ground . we also can supply IES test report and IES file , which can help you choose the right product . if you are interest in 800watt high mast LED lights , your feedback is highly welcomed , and your inquiry will be replied timely
