Specifications
Brand Name :
SINOMANU
Model Number :
SMI-H08-300W
Certification :
CE UL SAA PSE UL
Place of Origin :
ShenZhen , China
MOQ :
6 PCS
Price :
USD214.0 -- 232.0/PCS
Payment Terms :
T/T, L/C, Western Union, MoneyGram PAYPAL
Supply Ability :
4500PCS/Month
Delivery Time :
4-10 working days ( depend on quantity)
Packaging Details :
1pcs in a carton 620*540*280MM/CTN 12.0KG/CTN
Power :
300 Watt
Brand of LED :
LUMILEDS SMD LED 5050
Lumen output :
45000LM
CCT :
2700K - 6500K
Dimension :
L514*388*166MM
THD :
<12%
Input voltage :
AC90-305V
Certificate :
CE UL SAA PSE
Description

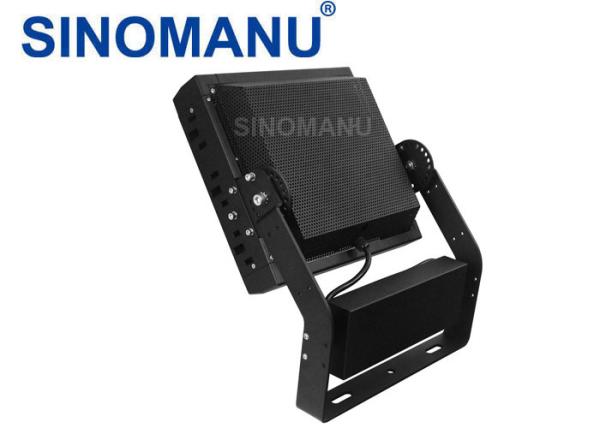

300Watt LED high mast lights for stadium lighting sea shore lighting square lighting 7 years warranty

In outdoor stadium lighting , huge square lighting , sea port lighting , air port lighting , High mast lights play an important part . in past years , people use old fashioned Metal halide lamp or HPS lamp high mast fixtures , the shortage of them are obviously , low lumen efficiency ( 50 --70LM/W) , low RA CRI (25 -- 60) . to make high mast lighting let customer satisfied , we developed a kind of LED high mast lights ,energy saving by 65% - 85%) . after use our LED high mast lights fixture, customer have an obvious decrease in electricity bill each month

Details for 300Watt LED high mast lights for stadium lighting sea shore lighting square lighting 7 years warranty below

Item LED high mast lights Color of Heat-sink Matted Black
Model Number SMI-H06-300W Power Factor(PF) 0.95
Watt 300W THD <12%
Input Voltage AC90-305V 50-60Hz Brand of LED driver MEAN WELL
Quantity of LED 132PCS Efficiency of Driver 92%
Lumen Efficiency 145LM/W 45000LM in total UGR <19
Type of LED SMD LED 5050 (8 chips inside) Dimension L514*W388*H166MM
Brand of LED OSRAM or LUMILEDS Application High mast fixtures
Color Temperature 2500K--6000K Certification CE UL PSE SAA BIS
CRI 83 Working Temperature -20℃--65℃
Beam Angle 25D 45D 60*145D Working life span 60000 Hours
Material of heat sink 1060 Aluminum (99.6%) Warranty 7 Years

The advantage of 300Watt LED high mast lights for stadium lighting sea shore lighting square lighting 7 years warranty

A . The surface of heat housing treated by power coated , looks well and easy to maintenance

B .300W LED high mast lights have excellent lighting effect , without black spot , or black area , the light is very even on the working ground .

C. SINOMANU 300 watt High mast LED lights can be used to replace compact fluorescent high mast fixture , metal hairslide lamp high mast fixture, High pressure sodium lamp high mast fixture , and so on .

D. SINOMANBU high mast LED lights with pre-install bracket , that make it is easier to replace old HID MHL HPS high mast fixtures directly .

F . 300W high mast LED lights can supply dimmable and non-dimmable version , the dimmable version including 0-10V 1-10V resistance dimming and DALI dimming , in a word ,we have all you want about highmast LED lights .

Sea Port Aluminum High Mast Luminaire With CE / UL / SAA / PSE Certificate

300watt high mast LED lights have 3 kind of beam angle to choose , 25D 45D 60D*145D . when make plan about high mast LED lights , please choose right beam angle according to the installation height ,and lumen output you need on the ground . if you are interested in 300watt high mast LED lights , please do not hesitate to contact us , your feedback is highly welcome , and your inquiry will be replied timely and professionally
