Super High Lumen 200W LED High Bay Matted Black Industry 7 Years Warranty
Super High Lumen 200W LED High Bay Matted Black Industry 7 Years Warranty
Super High Lumen 200W LED High Bay Matted Black Industry 7 Years Warranty
Super High Lumen 200W LED High Bay Matted Black Industry 7 Years Warranty
Specifications
Brand Name :
SINOMANU
Model Number :
SMI-H06-200W-A
Certification :
CE RoHS PSE SAA UL
Place of Origin :
Shenzhen , China
MOQ :
2 PCS
Price :
USD124 -- 132.0USD/PCS
Payment Terms :
T/T, Western Union, Western Union, L/C,
Supply Ability :
6000 PCS / month
Delivery Time :
3-8 working days
Packaging Details :
1pcs in a carton . 48*48*24CM/CTN . 7.5KG/CTN . 0.056CBM/CTN
Type of LED :
SMD LED 3030 (1.5W)
Lumen efficiency :
150LM/W
RA/CRI :
82
LED driver :
MEAN WELL
Dimension :
D400*H203MM
Warranty :
7 Years
Type of lights :
Round
Application :
Industrial lighting
Description

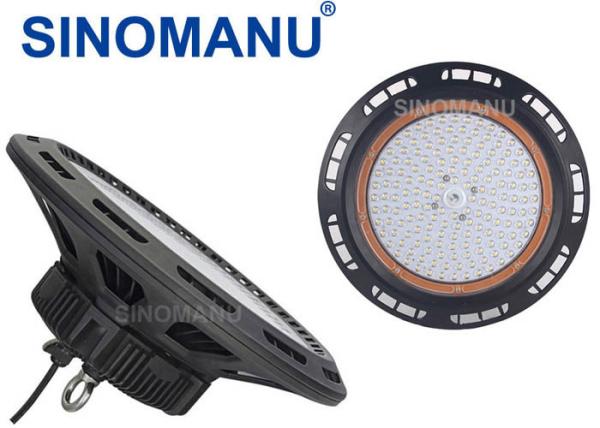

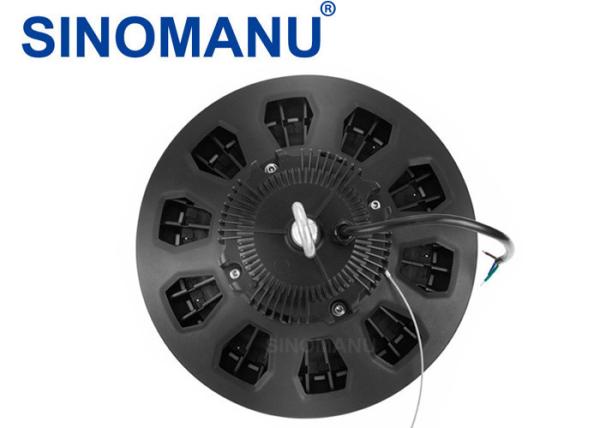

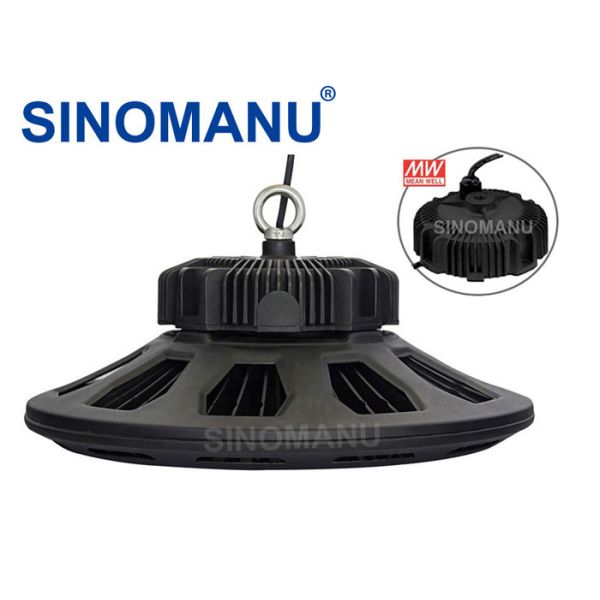

Super high lumen UFO high bay LED lights 200W for industrial LED lighting water proof

To solve the problem of industrial lighting , we designed a kind of UFO highbay LED lights for industrial use specially , with big lighting source area , for example , 200 watt , the diameter of lighting source area is 300MM , looks very nice like a small sun .

Details for Super high lumen UFO high bay LED lights for industrial LED lighting water proof

Item UFO High bay LED lights Color of Heat-sink Matted Black
Model Number SMI-H06-200W-A Power Factor(PF) 0.97
Watt 200W THD <11%
Input Voltage AC100-305V 50-60Hz Brand of LED driver MEAN WELL
Quantity of LED 360PCS Efficiency of Driver 91%
Lumen Efficiency 150LM/W 30000LM UGR <18
Type of LED SMD LED 3030 (2chips inside) Dimension D400*H203MM
Brand of LED Lumileds or OSRAM Application Industrial lighting
Color Temperature 2700K--6500K Certification CE RoHS UL PSE SAA
CRI 81 Working Temperature -25℃--65℃
Beam Angle 60D 90D 120D Working life span 60000 Hours
Material of heat sink 1060 Aluminum (Pure) Warranty 7 Years

The features of Super high lumen UFO high bay LED lights for industrial LED lighting water proof
NO1. the heat sink made of 1060 aluminum(99.6%) , and make up of 60 pcs aluminum fins , which is best in heat-dissipation and light in weight . the temperater of heat-sink is 45℃ Max when working . and just 4.5Kg/pcs (200 Watt) . If the working temperature of LED chip increase by 10℃ , the lifespan of LED light would decrease by 50% . so, the heat-dissipation function is very important to UFO highbay LED lights.

NO2. There are 3 kind of beam angle to choose , 60D 90D 120D , Which can make the arrangement of LED lights more accurate in industrial use


NO3. Constant current and isolated LED driver from MEAN WELL , which are experienced in this field over 20 years

NO4. 7 years warranty , practical life span over 10 years .


Super High Lumen 200W LED High Bay Matted Black Industry 7 Years Warranty



In practical application , please choose right watt accrording to the installation height ,and lux you need on the ground . we have IES file , which can help you find best solution . if you are interest in our industrial UFO LED highbay lights , please let us know . your feedback is highly welcomed
