Specifications
Brand Name :
SINOMANU
Model Number :
SMI-T01-200W
Certification :
CE UL SAA PSE UL
Place of Origin :
ShenZhen , China
MOQ :
3 PCS
Price :
USD93.0 -- 105.0/PCS
Payment Terms :
T/T, L/C, Western Union, MoneyGram PAYPAL
Supply Ability :
8000PCS/Month
Delivery Time :
3-12 working days ( depend on quantity)
Packaging Details :
1pcs in a carton 420*360*180MM/CTN 8.5KG/CTN
Watt :
200W
Lumen output :
24000LM
Dimension :
L373*W315*H130MM
Input voltage :
AC90-305V
Certificate :
CE PSE SAA UL
Warranty :
5 Years
Beam angle :
60D*60D 90*90D 60*150D
Life span :
50000hours
Description

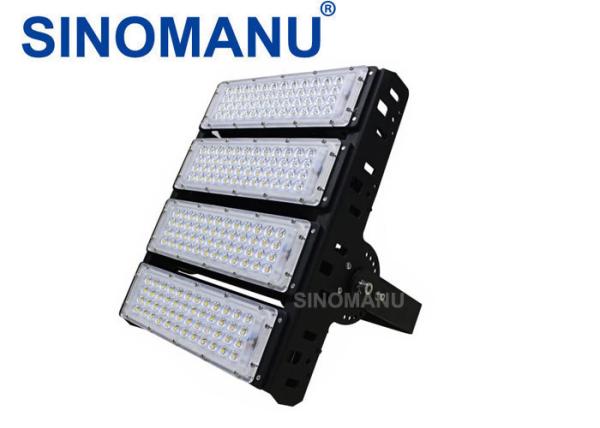

Daylights 200W 5000K LED tunnel lights IP65 LED tunnel light modular outdoor

There are many railway tunnel and highway tunnels ,which need 24 hours lighting . so , it usually need to use many lamps to light the dark tunnel completely , of course that consume a lot of energy each day . in past , Metal halide lamp fixture , High pressure sodium fixture are be used widely in tunnel lighting . but they all have obviously defects ,and that is unavoidable . for instance , low lumen output(20 - 75) , and low color rendering index ( CRI 25 - 70 ) . to solve the problems of tunnel lighting , we have made LED tunnel light . feature : high lumen output (120LM/W) , high RA CRI (82 -- 90). that can meet your demand for sure .

Details for Daylights 200W 5000K LED tunnel lights IP65 LED tunnel light modular outdoor below

Product Name LED tunnel lights Model Number SMI-T01-200W
Watt 200W Input Voltage AC90 - 305V
Quantity of LED 192PCS Type of LED SMD LED 3030
Lumen efficiency 120LM/W Brand of LED LUMILEDS or OSRAM
Color temperature 2700K - 6500K CRI 82
Beam angle 60*60D 90*90D 60*150D Material of Heat sink Pure aluminum
Color of heat sink Black Power Factor 0.95
THD < 12% Brand of LED driver MEAN WELL
Efficiency of LED driver 92% UGR <19%
Dimension L373*W315*H130 Application Bill board lighting
Certificate CE UL SAA Working temperature -20℃-- 50℃
Warranty 5 Years Working life span 50000 Hours

The advantage of Daylights 200W 5000K LED tunnel lights IP65 LED tunnel light modular outdoor

⑴ . SINOMANU value customers feedback much , any inquiry would be replied in 2 hours even shorter in working days .

⑵ . Old metal halide lamp (MHL ) , high pressure sodium lamp (HPS) tunnel lights fixtures have a very short lifespan (10000 hours , 5000hours) , however tunnel LED lights have a very long lifespan 50000hours above , that can save a lot in maintenance compare with old style HPS MHL CFL lamp tunnel lighting fixtures .


⑶ . Tunnel LED lights can be non-dimmable and dimmable , the dimmable style including DALI , 0-10V , 1-10V , resistance dimming , triac dimming , in one word ,we can meet all what you want about LED tunnel lights

⑷ . The mounting bracket of LED tunnel light is adjustable( Max 180D ) , you can get the proper angle you want easily to have a best lighting effect .

Daylights 5000K LED Tunnel Light Outdoor With 60 * 150 Degree Beam Angle

SINOMANU 200watt tunnel led lights can be widely used to replace traditional old fashioned tunnel fixtures . for instance , High pressure Sodium lamp( HPS ) , Metal halide lamp flood fixtures ( MHL ), Compact fluorescent lamp ( CFL ) flood fixtures. Amazing lighting effect make customers be satisfied . so , if you need such kind of LED tunnel light , please do not hesitate to contact us , your inquiry will be highly welcome .
