Specifications
Brand Name :
SINOMANU
Model Number :
SMI-T01-150W
Certification :
CE UL SAA PSE UL
Place of Origin :
ShenZhen , China
MOQ :
4 PCS
Price :
USD80.0 -- 85.0/PCS
Payment Terms :
T/T, L/C, Western Union, MoneyGram PAYPAL
Supply Ability :
12000PCS/Month
Delivery Time :
3-10 working days ( depend on quantity)
Packaging Details :
1pcs in a carton 370*320*180MM/CTN 6.5KG/CTN
Watt :
150W
Dimension :
L315*W283*H130MM
Input voltage :
AC90-305V
Warranty :
5 Years
Beam angle :
60D*60D 90*90D 60*150D
Life span :
50000hours
Application :
Tunnel lighting
Installation :
by bracket
Description

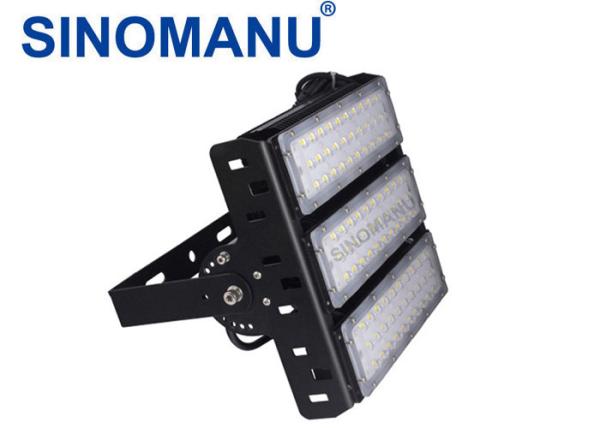

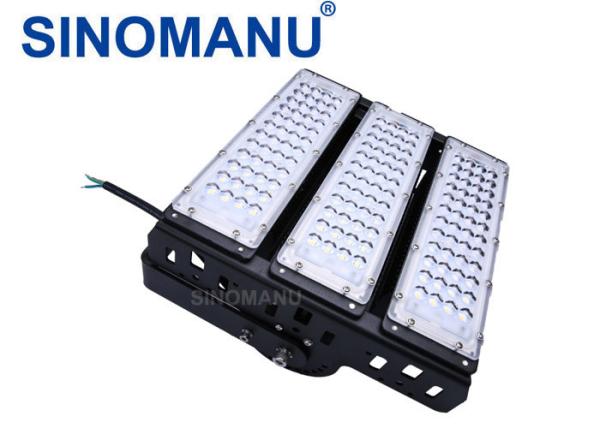

Water proof IP65 LED tunnel lights 150watt tunnel LED lamp for square lighting

The latest solution to tunnel lighting , that is our NEW style LED tunnel lights , which have bigger valid lighting square but lighter in weight compare with traditional MHL HPS CFL tunnel lighting fixtures , and easy to install , that make you have a fresh impression to tunnel lighting in lighting effect .

Details for Water proof IP65 LED tunnel lights 150watt tunnel LED lamp for square lighting below

Name of item Tunnel LED lights Model Number SMI-T01-150W
Watt 150W Input Voltage AC90 - 305V
Quantity of LED 144PCS Type of LED SMD LED 3030
Lumen efficiency 120LM/W Brand of LED LUMILEDS or OSRAM
Color temperature 2700K - 6500K CRI 82
Beam angle 60*60D 90*90D 60*150D Material of Heat sink Pure aluminum
Color of heat sink Black Power Factor 0.95
THD < 12% Brand of LED driver MEAN WELL
Efficiency of LED driver 92% UGR <19%
Dimension L315*W283*H130 Application railway tunnel lighting
Certificate CE UL SAA Working temperature -20℃-- 50℃
Warranty 5 Years Working life span 50000 Hours

The features of Water proof IP65 LED tunnel lights 150watt tunnel LED lamp for square lighting


A. It is better than old style metal halide lamp , HPS lamp tunnel light fixtures (need time to warm up ) , the stars time of LED tunnel lights less than 0.5S , that make feel much convenient in application

B. 1500W tunnel LED lights can replace 350W Metal halide lamp (MHL ) ,save more than 60% . that will bring an instant save in your electricity , and can save much in a long time , the cost of product will be back in a year


C. SINOMANU Supply 5 years warranty to tunnel LED lights fixtures , the failure lamp in warranty period would be replaced for free . let customer free the trouble of after sales . what is more , in practical , the failure rate is very low . the customer would have less trouble than they planed

D. do not need time to warm up , the light can be instant on , cold starts and hot starts , in a word you can turn on or turn off the lights at any time you want as your wish

E. Tunnel LED lights fixtures with pre-install adjustable bracket , it can replace traditional old style Metal halide lamp (MHL) , High pressure sodium lamp (HPS ) ,or compact fluorescent lamp (CFL) tunnel light fixture directly .

F . it have High lumen efficiency 120LM/W CRI>82 . can save 65 - 85% energy than old style Metal halide tunnel lighting fixtures , HPS lamp tunnel lighting fixtures

Waterproof IP65 LED Tunnel Light 150 Watt For Square Lighting IK10 Shock

SINOMANU 150watt tunnel LED lights can be widely used for railway tunnel lighting , highway tunnel lighting , square lighting , warehouse lighting , an so on . please let us know if you are interested , thanks .
