High Gain UHF Built In Antenna Handheld RFID Reader Gain 3dbic 860MHz-960MHz
High Gain UHF Built In Antenna Handheld RFID Reader Gain 3dbic 860MHz-960MHz
High Gain UHF Built In Antenna Handheld RFID Reader Gain 3dbic 860MHz-960MHz
High Gain UHF Built In Antenna Handheld RFID Reader Gain 3dbic 860MHz-960MHz
High Gain UHF Built In Antenna Handheld RFID Reader Gain 3dbic 860MHz-960MHz
High Gain UHF Built In Antenna Handheld RFID Reader Gain 3dbic 860MHz-960MHz
High Gain UHF Built In Antenna Handheld RFID Reader Gain 3dbic 860MHz-960MHz
High Gain UHF Built In Antenna Handheld RFID Reader Gain 3dbic 860MHz-960MHz
High Gain UHF Built In Antenna Handheld RFID Reader Gain 3dbic 860MHz-960MHz
High Gain UHF Built In Antenna Handheld RFID Reader Gain 3dbic 860MHz-960MHz
High Gain UHF Built In Antenna Handheld RFID Reader Gain 3dbic 860MHz-960MHz
High Gain UHF Built In Antenna Handheld RFID Reader Gain 3dbic 860MHz-960MHz
Specifications
Brand Name :
Broadradio
Model Number :
BRA-07
Place of Origin :
Shenzhen, China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T，Paypal
Delivery Time :
3-5work days
Packaging Details :
Plastics inner box and outer Carton
Frequency :
902-928MHz
Size :
61 mm×61 mm×16.3 mm
Gain :
3 dBic
Axial ratio :
＜3dB
Weight :
30g
Material :
FR4, stainless steel
Color :
Green
Description

Small Size High Gain UHF Built-In RFID Antenna, Handheld RFID Reader Antenna Gain 3dbic 860MHz-960MHz

Product Model

BRA-07 Antenna

Product Function and Features

Electrical Properties: It is a general antenna for terminal applications with high gain, miniaturization, low VSWR and etc.

Mechanical Properties: small size and suitable for various severe environments.

Product Applications

BRA-07 Antenna is of convenient application in UHF RFID handheld reader and other terminal application fields.

Performance Specifications

Frequency Range: 902MHz～928MHz

VSWR: ≤1.3:1

Gain: > 3 dBic

Polarization: Circular Polarization

Axial ratio: <3 dB

Relative humidity: 5%～95%

Impedance: 50±1Ω

Connector Type: SMA (IPX optional)

Mechanical Specifications

Size: 61 mm×61 mm×16.3 mm

Weight: 30g

Material: FR4, stainless steel

Color: green

Production Class: IP54

Operating Temperature: -40℃~+ 85℃

Storage Temperature: -40℃~+ 85℃

High Gain UHF Built In Antenna Handheld RFID Reader Gain 3dbic 860MHz-960MHz

Figure 1. Antenna Photo

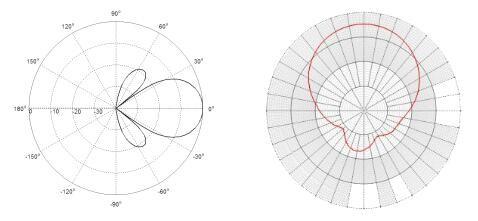

Antenna Pattern

High Gain UHF Built In Antenna Handheld RFID Reader Gain 3dbic 860MHz-960MHz

Broadradio is a high-tech enterprise focusing on R&D, production and sales of UHF rfid hardware for 10 years. It has excellent independent innovation capability, obtained many national and international patents, and has more than 10,000 square meters of R&D production in South China Base. more than 500 production staff to ensure production capacity, and equipped with more than 20 high-standard test equipment to ensure product quality, is your ideal partner.
