WinCE Linux 4 Ports Impinj R2000 RFID Fixed Reader For Race Timing System

Product Applications

1. Manufacturing management, goods flow management, warehouse management, and the flow management of mail, parcel and luggage, etc.
2. Library management, school management, asset management, inventory management, attendance management, etc.

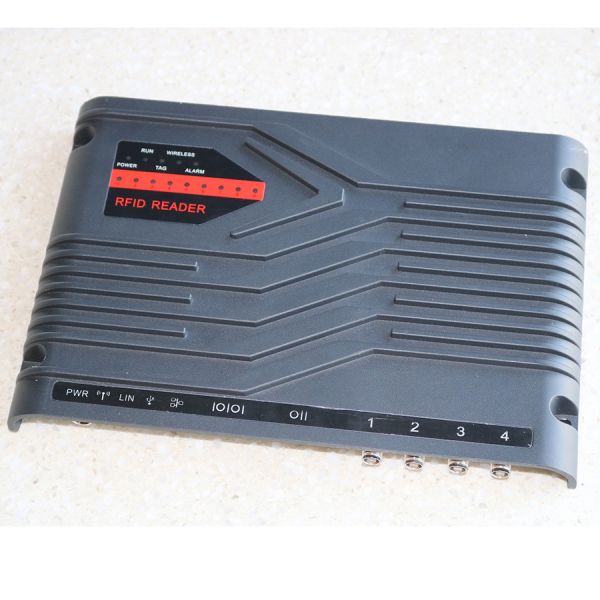

Sample Pictures

Features

1.Self-intellectual property;

2.Designed with Impinj R2000 RFID engine;

3.Support ISO18000-6C(EPC C1G2) , ISO18000-6B protocol tag;

4.860~868MHz/902~928MHz frequency band(frequency customization optional);

5.FHSS or Fix Frequency transmission;

6.RF output power up to 30dbm(adjustable);

7.4 TNC antenna port with antenna auto-tuning and failure-detection;

8.Support auto-running, answer, trigger and real-time-inventory work mode;

9.Tag buffer size up to 800PCS (Max. 496bits EPC length);

10.Support EPC and TID inventory;

11.Low power dissipation with single +9 DC power supply;

12.Support RS232, RS485, RJ45(TCPIP) with WiFi and POE optional;

13.High reliability design;

14.Support on-the-site firmware upgrading and optional Wince or Linux Operation System.

Mechanical Data

Interface

1.Power J1

2.WiFi Antenna J2 (SMA Female)

3. USB J3 (Slave)

4. USB J4 (Reserved)

5. TCPIP RJ45 Socket J5

6. UART J6 (RS232 DB9 Female)

7. GPIO J7 (DB15 Female)

8.TNC Antenna Port1~Port4 J8~J11

9.LED indicator

Certification & factory's View

FAQ

1. Are you a factory?

Yes, we’re a factory that manufactured UHF RFID Readers and Antenna since 2010. Warmly welcome to visit our factory!

2. We are not an expert buyer in your technology, what information do you need from us to quote ?

Dear friend, please inform us clearly you use reader in what working environment of project, what goal do you want to achieve, we would propose you the suitable product in good price.

Our Service

1, 12 months warranty

2, ODM/OEM customization services according to your needs.

3, Completely Free SDK and technical support for you.

4, Fast Delivery Time: 1-3 working days for sample order; 5-15 working days for bulk order

5, Fast Response: Reply inquiries within 24 hours
