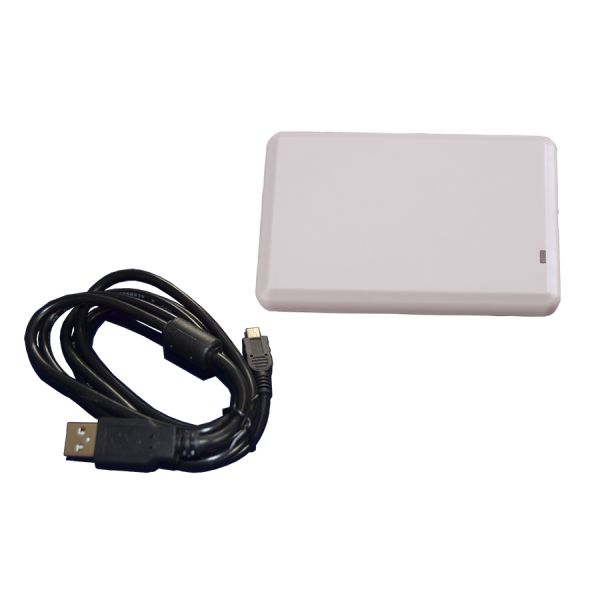

Mini Usb Uhf Rfid Desktop Reader 2dbi 30dbm 180mm Reading Range
Mini Usb Uhf Rfid Desktop Reader 2dbi 30dbm 180mm Reading Range
Mini Usb Uhf Rfid Desktop Reader 2dbi 30dbm 180mm Reading Range
Mini Usb Uhf Rfid Desktop Reader 2dbi 30dbm 180mm Reading Range
Specifications
Brand Name :
ZKHY
Model Number :
ZK-RFID105
Certification :
CE Rohs FCC
Place of Origin :
China （mainland）
MOQ :
1
Price :
US$85/pc
Payment Terms :
Western Union, T/T，Paypal
Supply Ability :
1000pcs per month
Delivery Time :
5-8days
Packaging Details :
Carton packing
Product Name :
2dbi 30dbm 180mm reading range mini usb uhf rfid desktop reader
Protocol :
ISO18000-6B、EPC CLASS1 G2 standards.
Working Mode :
FHSS or Fixed frequency transmission
Output power :
Maximum 13dbm(adjustable)
Material :
Plastic
Inner size :
105mmx70mmx11mm
Net Weight :
80g
Description

Mini Usb Uhf Rfid Desktop Reader 2dbi 30dbm 180mm Reading Range

ZK-RFID105 is a high performance Multiple Protocol UHF RFID Reader. It is designed upon fully self-intellectual property. Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, attendance system, anti-counterfeit and industrial production process control system.

Features:

1, Self-intellectual property;

2, Support UHF EPC Gen2(ISO18000-6C),ISO18000-6B protocol tags;

3, Advanced tag processing algorithm, high identification rate;

4, Built-in antenna with effective distance up to 100mm;

5, Low power dissipation design;

6, USB interface to get power from computer

7, Provide DLL and Demonstration Software Source code to facilitate further development;

Characteristics

Absolute Maximum Rating

ITEM SYMBOL VALUE UNIT
Power Supply VCC 5 V
Operating Temp. TOPR -20~+60 ℃
Storage Temp. TSTR -25~+70 ℃

Electrical and Mechanical Specification

Under Ta=25℃, VCC=9V unless specified

ITEM SYMBOL MIN TYP MAX UNIT
Power Supply VCC 3.3 5 5.5 V
Current Dissipation IC 90 150 mA
Frequency FREQ 902 928 MHz
Effective Distance* Dis 0 100 150 mm

* Effective distance depends on protocol, tag and environment

Applications:

Widely applied for RFID systems like Logistics,personal identification,intelligent parking lot,access system,anti-counterfeiting system and production process control,etc.
