Free SDK Passive UHF RFID Integrated Reader 5m long distance Multiple Protocol
Free SDK Passive UHF RFID Integrated Reader 5m long distance Multiple Protocol
Free SDK Passive UHF RFID Integrated Reader 5m long distance Multiple Protocol
Free SDK Passive UHF RFID Integrated Reader 5m long distance Multiple Protocol
Specifications
Brand Name :
ZKHY
Model Number :
ZK-RFID101
Certification :
CE
Place of Origin :
China
MOQ :
1piece
Price :
negotiated price
Payment Terms :
T/T, Western Union, MoneyGram,Paypal
Supply Ability :
5000pcs/month
Delivery Time :
2-3 working day
Packaging Details :
inner box+export carton/Standard packing or to be customized for big orders.
Application :
Parking System
Dimension :
235*235*57(US); 255*255*60(EU)
Reading Distance :
6M
Interface :
RS232,RS485
Protocol :
EPC, CLASS1,G2,ISO18000-6B
Frequency :
902-928MHZ
Support Operation :
EPC, TID
Housing :
IP54 Seal
Description

Free SDK Passive 5m long distance Multiple Protocol UHF 902~928MHz RFID Reader

Advantage

Shell adopt high strength die-casting aluminum, firm and durable, PCB is high density 6 layer board design, good for working under bad environment for a long time.

high-performance multi-tag identification algorithms.

Low power consumption and low voltage design, guarantee the products safe and stable operation for a long time.

Support Protocol ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag
Frequency 902~928MHz frequency band(frequency customization optional)
Power RF output power up to 30dbm(adjustable
Reading Distance 8dbi antenna optional with effect distance up to 5m
Work Mode Support auto-running, interactive and trigger-activating work mode
Power Supply Low power dissipation with single +9 DC power supply
Support Interface Support RS232, RS485, Wiegand interface

Applications

Item can be widely applied in many areas,such as:

1.Logistics& warehouse management: goods flow management,warehouse management, etc.

2.Intelligent parking management: parking lot management and automatic charge(E-Toll).

3.Production line management: fixed-point identification in production process.

4.Product counterfeit inspection: Using tag’s memory write-protect function to identify true-false of products.

5.Other fields: Library management, school management, asset management, access control, etc.

Free SDK Passive UHF RFID Integrated Reader 5m long distance Multiple Protocol

Characteristics

Absolute Maximum Rating

ITEM SYMBOL VALUE UNIT
Power Supply VCC 16 V
Operating Temp. TOPR -20~+70 C
Storage Temp. TSTR -25~+80 C

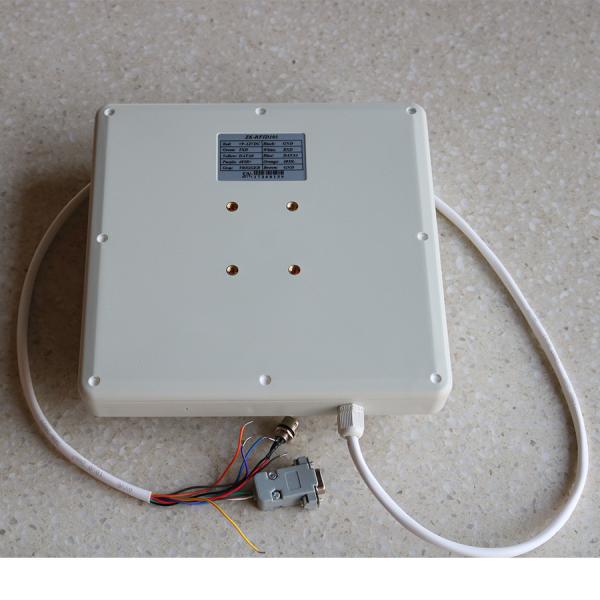

Interface

ITEM COMMENT
Red +9V
Black GND
Yellow Wiegand DATA0
Blue Wiegand DATA1
Purple RS485 R+
Orange RS485 R-
Brown GND
White RS232 RXD
Green RS232 TXD
Grey Trigger input(TTL level)


PS1: This model has US Standard(902-928 frequency) and EU Standard(865-868 frequency)

PS2: The standard interface of model is RS232, RS485, Wiegand; Besides, also has TCP/IP and WIFI interface.

Free SDK Passive UHF RFID Integrated Reader 5m long distance Multiple Protocol

Free SDK Passive UHF RFID Integrated Reader 5m long distance Multiple Protocol

Free SDK Passive UHF RFID Integrated Reader 5m long distance Multiple Protocol

User Manual

Step one: connect the adapter with power supply
Step two: Connect reader with PC /laptop through RS232 interface or RS232-USB converter, put tag close to the reader
Step three:Open demo software, click "open com port"
Step four: Click "EPC GEN2 Test", click "Query tag", then the card EPC number will output on the right list.

Free SDK Passive UHF RFID Integrated Reader 5m long distance Multiple ProtocolFree SDK Passive UHF RFID Integrated Reader 5m long distance Multiple Protocol

Package & Delivery

Free SDK Passive UHF RFID Integrated Reader 5m long distance Multiple Protocol

More Models

Free SDK Passive UHF RFID Integrated Reader 5m long distance Multiple Protocol

Our Company

We’re a Chinese factory that has manufactured UHF RFID (Radio Frequency Identification Device) Reader, Antenna and Accessory since 2010. Our RFID products cover almost all frequencies. Our company has special RFID techniques, so we can make characteristic designs and tests according to site conditions.

Our company gathers the best technical talents in China's RFID field and builds RFID technical R&D center. The advanced anti-collision algorithm and high identification rate of our products are in the leading level in the same industry among peers.

Website: www.zk-rfid.com

Address: Shenzhen, China

Our Service

1, 12 months warranty

2, ODM/OEM customization services according to your needs.

3, Completely Free SDK and technical support for you.

4, Fast Delivery Time: 1-3 working days for sample order; 5-15 working days for bulk order

5, Fast Response: Reply inquiries within 24 hours

Free SDK Passive UHF RFID Integrated Reader 5m long distance Multiple Protocol
