3M Anti - Theft UHF RFID Gate Reader With 40kg Net Weight For Retail Shops And Library
3M Anti - Theft UHF RFID Gate Reader With 40kg Net Weight For Retail Shops And Library
Specifications
Brand Name :
ZKHY
Model Number :
ZK-RFID808
Certification :
CE
Place of Origin :
China
MOQ :
1piece
Price :
negotiated price
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
5000pcs/month
Delivery Time :
2-3 working day
Packaging Details :
inner box+export carton/Standard packing or to be customized for big orders.
Application :
Vehicle Tracking System
Dimension :
1700*600*150MM
Reading Distance :
3m
Net Weight :
40kg
Frequency :
902~928MHz or 865~868MHz
Support tag :
NXP, ALIEN, IMPINJ
Support Protocol :
EPC Gen2 ISO18000-6C
Antenna :
Built in antenna
Housing :
ABS
Alarm :
Light & Buzzer
Description

3M Anti-theft UHF RFID Gate Door Reader for Retail Shops/Library

General Description
ZK_RFID808 comprises main panel and auxiliary panel. Main panel includes Antenna Array, UHF Fixed Reader, Controller, Infrared Sensor Receiver, Power Supply and Interface Port. Auxiliary panel includes Antenna Array, Infrared Sensor Transmitter and Interface Port. Other accessories include AC power cord, Panel link DC cable, Panel link Alarm cable, Panel link RF cable and RS232 communication cable.
3M Anti - Theft UHF RFID Gate Reader With 40kg Net Weight For Retail Shops And Library


Features

Specification
Tag Protocol EPC C1 Gen2(ISO18000-6C), ISO18000-6B standards.
Working frequency 865~868MHz, 902~928MHz (frequency can be customized)
RF Output Power Maximum 30dbm(adjustable)
Read Range 1-3 meters
Interface RS232,RS485,RJ45(TCP/IP) network interface, etc.
Work mode FHSS or Fix Frequency transmission
Power supply. 220/50 (V/Hz)
Current 160 (mA)
Alarm Light and buzzer
Direction Judgment Built-in 3 line infrared motion detection sensor
Extend Function Support plug-in camera, large screen display/television to realize controlling and managing in a more intuitive way
Sizes: 170(H)*60(W)*15cm(T)
Housing ABS/Metal
N.W 40KG
G.W 77KG
Operating Temperature -10°C ~ +60°C
Storage Temperature -25°C ~ +70°C



Product Applications
1. Manufacturing management, goods flow management, warehouse management, and the flow management of mail, parcel and luggage, etc.
2. Library management, school management, asset management, inventory management, attendance management, etc.
3M Anti - Theft UHF RFID Gate Reader With 40kg Net Weight For Retail Shops And Library


CHARACTERISTICS

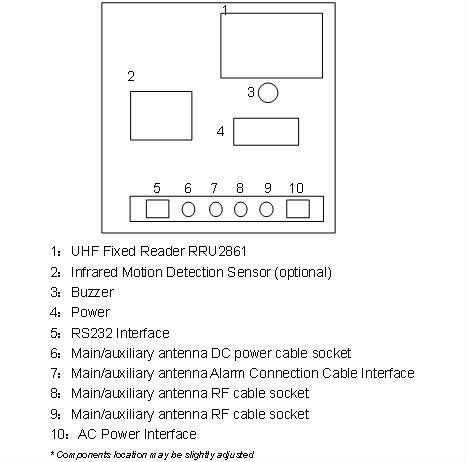

Main panel base box
3M Anti - Theft UHF RFID Gate Reader With 40kg Net Weight For Retail Shops And Library

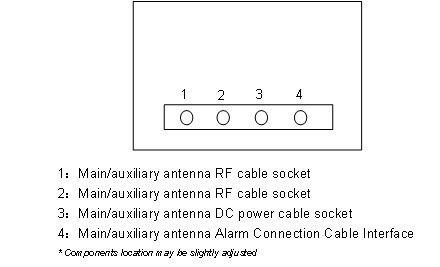

Auxiliary panel base box
3M Anti - Theft UHF RFID Gate Reader With 40kg Net Weight For Retail Shops And Library


More Products

3M Anti - Theft UHF RFID Gate Reader With 40kg Net Weight For Retail Shops And Library

Packaging & Shipping

3M Anti - Theft UHF RFID Gate Reader With 40kg Net Weight For Retail Shops And Library

Our Service
1, 12 months warranty
2, ODM/OEM customization services according to your needs.
3, Completely Free SDK and technical support for you.
4, Fast Delivery Time: 1-3 working days for sample order; 5-15 working days for bulk order
5, Fast Response: Reply inquiries within 24 hours

3M Anti - Theft UHF RFID Gate Reader With 40kg Net Weight For Retail Shops And Library
