External Miniature 0 DBi UHF RFID Antenna 915MHz ISM Band Straight Monopole Terminal Antenna
External Miniature 0 DBi UHF RFID Antenna 915MHz ISM Band Straight Monopole Terminal Antenna
Specifications
Brand Name :
MS
Model Number :
MS-915MZ-001
Certification :
RoHS
Place of Origin :
China
MOQ :
100 PCS
Price :
USD$ 0.3 / PCS - USD$ 0.35 / PCS
Payment Terms :
D/P
Supply Ability :
100000 PCS
Delivery Time :
5-8 days
Packaging Details :
100 PCS / BAG
Product Name :
External Miniature 915MHz Straight Monopole Terminal Antenna
Keyword :
915MHz Terminal Antenna
Frequency :
915 MHz
Peak Gain :
0 dBi
VSWR :
< 2.0
Impedance :
50 Ohm
Polarization :
Linear
Radiation Pattern :
Omni-Directional
Connector :
SMA Male
Antenna Length :
28 mm
Description

External Miniature 0dBi 915MHz ISM Band Straight Monopole Terminal Antenna

1. Product Name

External Miniature 0dBi 915MHz ISM Band Straight Monopole Terminal Antenna

2. Description

--2.1 Applications

Remote Mesh Networks

NB-IoT

Public Safety

Smart Meters

--2.2 Features

0dBi Peak Gain

28mm in Length

High Efficiency

Monopole Terminal Antenna

SMA Male Connector

3. Introduction

This is a high efficient SMA ISM band omni antenna operating at 915MHz, with a very high-performance ideal for maintaining constant network connectivity. This antenna is designed for LoRa & Sigfox IoT applications in mind. This also is ideal for telematics systems, remote surveillance, asset tracking and any IoT system applications.

The high performance makes it ideal for the most challenging installations. This SMA mount antenna is easy to install with maximum durability offering IP65 rated housing and anti-rotation mounting .

4. Specs

Electrical Properties

1.1 Frequency 915 MHz
1.2 Gain (peak) 0 dBi
1.3 V.S.W.R 2.0 MAX
1.4 Return Loss -10dB Maximum
1.5 Radiation Omni-Directional
1.6 Polarization Linear
1.7 Power Handling 1W

Mechanical Properties

2.1 Cable
2.2 Antenna Cover TPU
2.3 Antenna Length 28 mm
2.4 Operating Temperature -20℃ ~ +65℃
2.5 Storage Temperature -30℃ ~ +75℃
2.6 Color Black
2.7 Connector SMA Plug

5. Antenna Drawing

External Miniature 0 DBi UHF RFID Antenna 915MHz ISM Band Straight Monopole Terminal Antenna

6. VSWR

External Miniature 0 DBi UHF RFID Antenna 915MHz ISM Band Straight Monopole Terminal Antenna

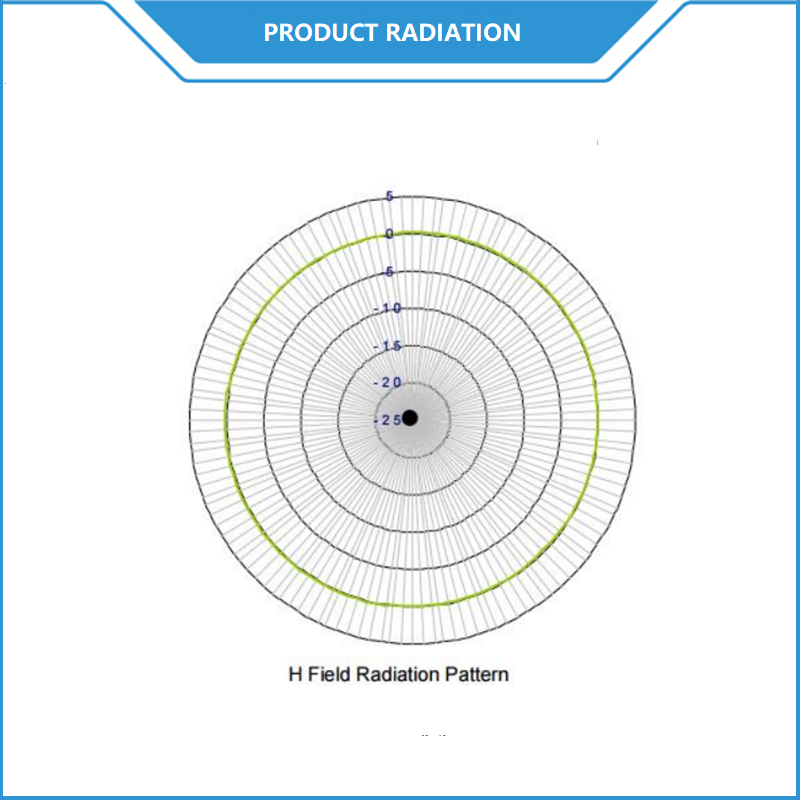

7. Radiation Pattern

External Miniature 0 DBi UHF RFID Antenna 915MHz ISM Band Straight Monopole Terminal Antenna
