External UHF RFID Antenna 3dBi ISM 915MHz Terminal Mount Dipole Antenna
External UHF RFID Antenna 3dBi ISM 915MHz Terminal Mount Dipole Antenna
Specifications
Brand Name :
MS
Model Number :
MS-915JT-003
Certification :
RoHS
Place of Origin :
China
MOQ :
100 PCS
Price :
USD$ 1.2 / PCS - USD$ 1.5 / PCS
Payment Terms :
D/P
Supply Ability :
100000 PCS
Delivery Time :
5-8 days
Packaging Details :
100 PCS / BAG
Product Name :
External 3dBi ISM 915MHz Terminal Mount Dipole Antenna
Keyword :
915MHz Terminal Antenna
Frequency Range :
902-928 MHz
Gain :
3dBi
VSWR :
< 2.0
Impedance :
50 Ohm
Polarization :
Linear
Radiation Pattern :
Omni-Directional
Connector :
SMA Male
Length :
198mm
Description

External 3dBi ISM 915MHz Terminal Mount Dipole Antenna

1. Product Name

External 3dBi ISM 915MHz Terminal Mount Dipole Antenna

2. Description

--2.1 Applications

Smart Metering

Remote Monitoring

Industrial IoT

Connected Enterprise

--2.2 Features

3dBi Gain

ISM 915MHz Band Operation

High Efficiency up to 60%

Hinged and Rotated

Height :198 mm

3. Introduction

This is a high performance 915MHz terminal SMA mount dipole antenna which has 198mm length and 13mm in diameter and also can be mounted straight or right angle.

This antenna performs quite well in free space, making it an ideal solution in areas where there may be no ground plane .

4. Specs

Electrical Properties

1.1 Frequency 902-928 MHz
1.2 Gain (peak) 3 dBi
1.3 V.S.W.R 2.0 MAX
1.4 Return Loss -10dB Maximum
1.5 Radiation Omni-Directional
1.6 Polarization Linear
1.7 Power Handling 5W

Mechanical Properties

2.1 Cable RG178
2.2 Antenna Cover TPE
2.3 Antenna Base PC+PBT
2.4 Operating Temperature -20℃ ~ +65℃
2.5 Storage Temperature -30℃ ~ +75℃
2.6 Color Black / White
2.7 Connector SMA Plug

5. Antenna Drawing

External UHF RFID Antenna 3dBi ISM 915MHz Terminal Mount Dipole Antenna

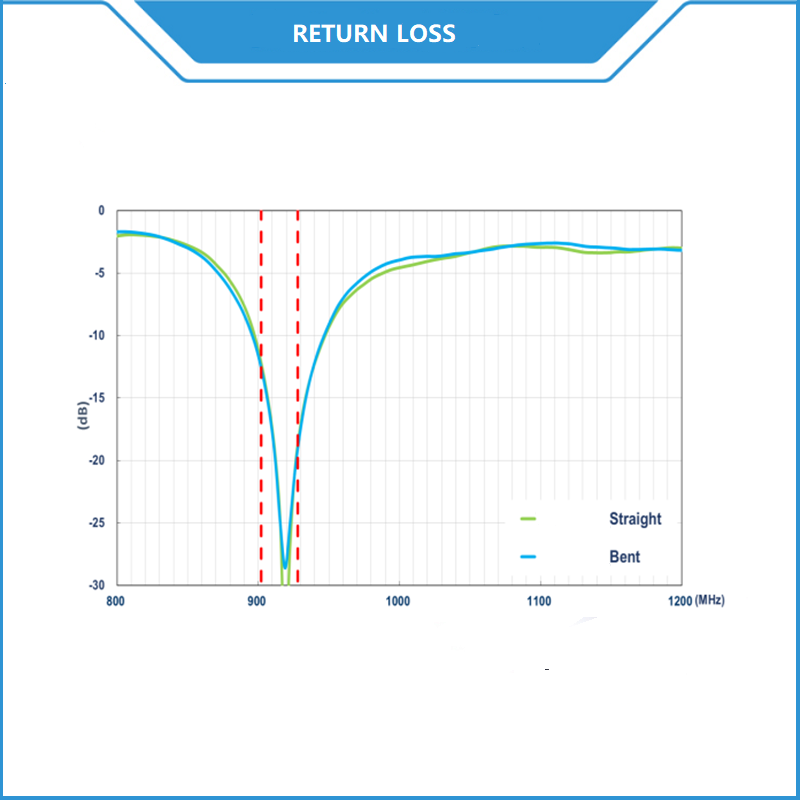

6. VSWR

External UHF RFID Antenna 3dBi ISM 915MHz Terminal Mount Dipole Antenna

7. Radiation Pattern

External UHF RFID Antenna 3dBi ISM 915MHz Terminal Mount Dipole Antenna
