915MHz 3dBi ISM Band Omni Directional Outdoor Fiberglass Antenna
915MHz 3dBi ISM Band Omni Directional Outdoor Fiberglass Antenna
Specifications
Brand Name :
MS
Model Number :
MS-915BLG-001
Certification :
RoHS
Place of Origin :
China
MOQ :
10 PCS
Price :
USD$ 15 / PCS - USD$ 18 / PCS
Payment Terms :
D/P
Supply Ability :
10000 PCS
Delivery Time :
5-8 days
Packaging Details :
10 PCS / BOX
Product Name :
915MHz Fiberglass Omni Directional Outdoor Antenna
Keyword :
915MHz Fiberglass Antenna
Frequency Range :
902-928 MHz
Gain :
3dBi
VSWR :
< 2.0
Impedance :
50 Ohm
Polarization :
Linear
Radiation Pattern :
Omni-Directional
Horizontal Bandwidth :
360 Deg
Vertical Bandwidth :
60 Deg
Input Power :
50 W
Connector :
N Male / N Female
Description

Outdoor 915MHz 3dBi ISM Band Omni Directional Fiberglass Antenna

1. Product Name

Outdoor 915MHz 3dBi ISM Band Omni Directional Fiberglass Antenna

2. Description

--2.1 Applications

Metering

Industrial / Environmental Monitoring

Remote Asset Monitoring

Mesh Network

--2.2 Features

3dBi Peak Gain

Omni Directional

360mm in Length

Efficiency > 60 %

Connector : N Male or N Female

Wall / Pole Mount (U Bracket)

3. Introduction

This is a fiberglass omni directional outdoor antenna operating in 902-928MHz ISM band, which is designed to offer long distance coverage .

It is one of the most widely used license free ISM bands with 3dBi Peak Gain.

4. Specs

Electrical Properties

1.1 Frequency 902-928MHz
1.2 Gain (peak) 3dBi
1.3 V.S.W.R 2.0 MAX
1.4 Return Loss -10dB Maximum
1.5 Radiation Omni-Directional
1.6 Polarization Linear
1.7 Power Handling 50 W

Mechanical Properties

2.1 Cable
2.2 Antenna Cover Fiberglass
2.3 Antenna Base U Bracket
2.4 Operating Temperature -20℃ ~ +65℃
2.5 Storage Temperature -30℃ ~ +75℃
2.6 Color Black
2.7 Connector N Male / N Female

5. Antenna Drawing

915MHz 3dBi ISM Band Omni Directional Outdoor Fiberglass Antenna

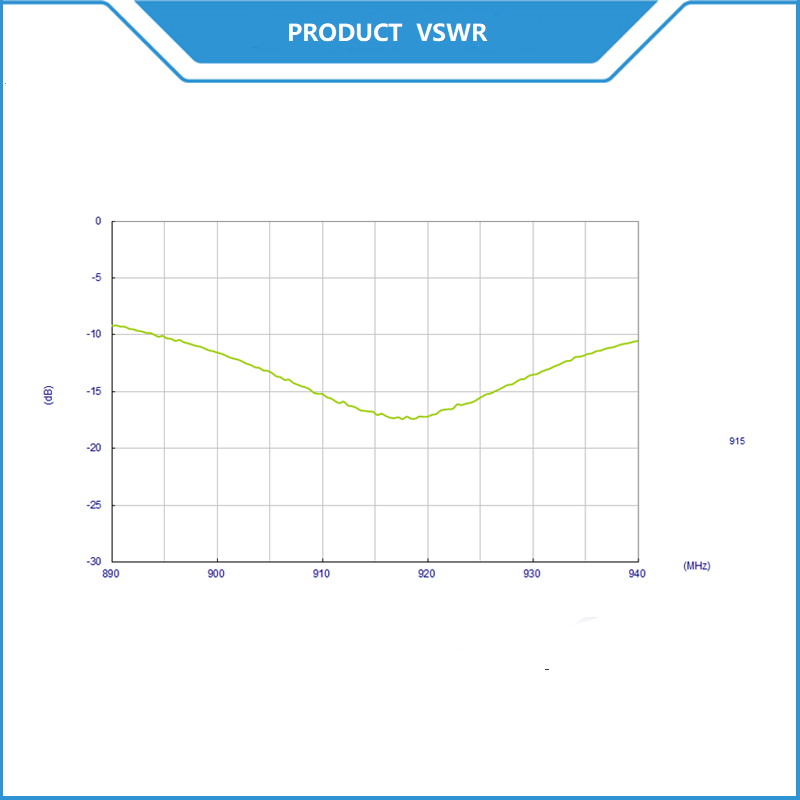

6. VSWR

915MHz 3dBi ISM Band Omni Directional Outdoor Fiberglass Antenna

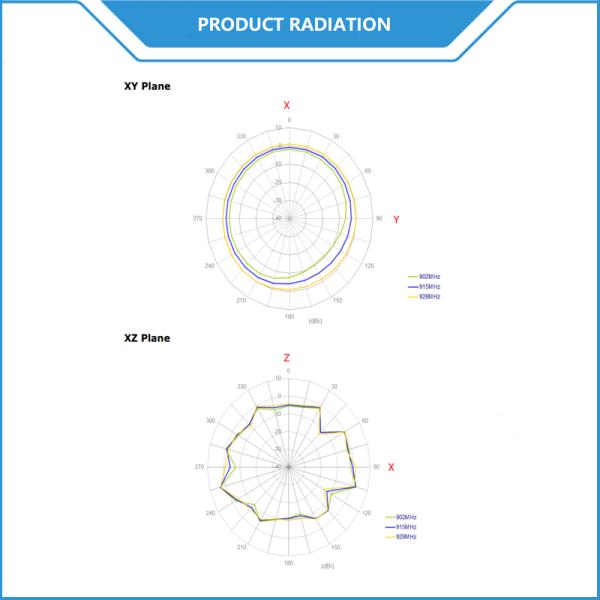

7. Radiation Pattern

915MHz 3dBi ISM Band Omni Directional Outdoor Fiberglass Antenna
