Screw Mount ISM Band Antenna Low Profile Waterproof 915 Mhz High Gain Antenna
Screw Mount ISM Band Antenna Low Profile Waterproof 915 Mhz High Gain Antenna
Specifications
Brand Name :
MS
Model Number :
MS-915-MGT-001
Certification :
RoHS
Place of Origin :
China
MOQ :
10 PCS
Price :
USD$ 1.5 / PCS - USD$ 2 / PCS
Payment Terms :
D/P
Supply Ability :
10000 PCS
Delivery Time :
5-8 days
Packaging Details :
10 PCS / Box
Product Name :
Waterproof 915MHz ISM Band Puck Mount Antenna
Keyword :
915MHz Puck Mount Antenna
Frequency Range :
902-928 MHz
Gain :
3dBi
VSWR :
< 2.0
Impedance :
50 Ohm
Polarization :
Linear
Radiation Pattern :
Omni-Directional
Max Input Power :
5W
Cable Type :
RG174 Coaxial Cable
Dimensions :
46*17 mm
Connector :
SMA Male (Customized)
Description

Low Profile Waterproof 915MHz ISM Band Screw Mount (Fixed Mount) Antenna

1. Product Name

Low Profile Waterproof 915MHz ISM Band Screw Mount (Puck Mount) Antenna

2. Description

--2.1 Applications

LoRa

ISM Applications

Network Devices

Smart Cities

M2M

Consumer Tracking

--2.2 Features

3dBi High Gain

Low Profile

Heavy Duty Screw Mount

IP65 Rated- Waterproof

RG174 Coaxial Cable

3. Introduction

This 915MHz ISM band antenna is a high performance brass thread-mount antenna for outdoor external uses on vehicles and assets . Also, the omni directional high gain ensures constant reception and transmission.

The antenna can be mounted on metal surface.

4. Specifications

Electrical Properties

1.1 Frequency 902-928 MHz
1.2 Gain (peak) 3 dBi
1.3 V.S.W.R 2.0 MAX
1.4 Return Loss -10dB Maximum
1.5 Radiation Omni-Directional
1.6 Polarization Linear / Vertical
1.7 Power Handling 5W

Mechanical Properties

2.1 Cable RG174
2.2 Antenna Cover TPE
2.3 Antenna Base Brass
2.4 Operating Temperature -20℃ ~ +65℃
2.5 Storage Temperature -30℃ ~ +75℃
2.6 Color Black / White
2.7 Connector SMA Plug

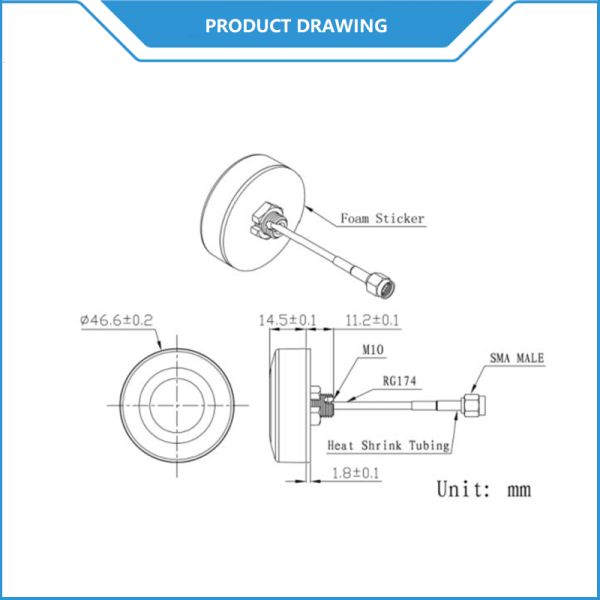

5. Antenna Drawing

Screw Mount ISM Band Antenna Low Profile Waterproof 915 Mhz High Gain Antenna

6. VSWR

Screw Mount ISM Band Antenna Low Profile Waterproof 915 Mhz High Gain Antenna

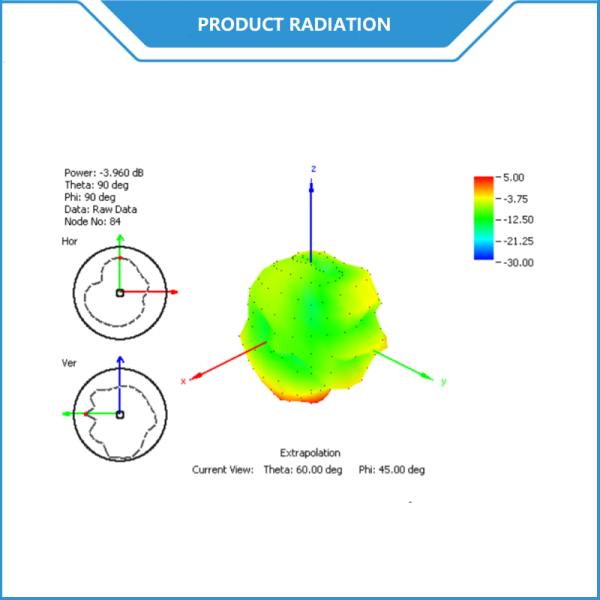

7. Radiation Pattern

Screw Mount ISM Band Antenna Low Profile Waterproof 915 Mhz High Gain Antenna
