Outdoor 6dBi High Gain UHF RFID Antenna ISM 433MHz Omni Directional Fiberglass Antenna
Outdoor 6dBi High Gain UHF RFID Antenna ISM 433MHz Omni Directional Fiberglass Antenna
Specifications
Brand Name :
MS
Model Number :
MS-433BLG-001
Certification :
RoHS
Place of Origin :
China
MOQ :
10 PCS
Price :
USD$ 20 / PCS - USD$ 21 / PCS
Payment Terms :
D/P
Supply Ability :
1000 PCS
Delivery Time :
5-8 days
Packaging Details :
According to the quantity
Product Name :
Outdoor 433MHz Fiberglass Antenna
Keywords :
433MHz Fiberglass Antenna
Frequency :
433 MHz
Bandwidth :
10 MHz
Gain :
6 dBi
VSWR :
< 1.5
Impedance :
50 Ohm
Polarization :
Linear
Radiation Pattern :
Omni-Directional
Max Input Power :
100 W
Antenna Length :
1200 mm
Weight :
1.3 kg
Description

Outdoor 6dBi High Gain ISM 433MHz Omni Directional Fiberglass Antenna

1. Product Name

Outdoor 6dBi High Gain ISM 433MHz Omni Directional Fiberglass Antenna

2. Description

--2.1 Applications

ISM, RFID, TETRA

LoRa 433MHz

Metering

Industrial / Environmental Monitoring

Remote Asset Monitoring

Mesh Network Applications

--2.2 Features

Omni Directional Radiation Pattern

6dBi High Gain

Fiberglass Housing

Robust Design For ALL Weather Operation

IP65 Rating

N Male or N Female Connector

Mounting Bracket Included

3. Introduction

This is a 6dBi fiberglass omni-directional outdoor antenna, operating in 433 MHz ISM band. The antenna is designed for applications such as metering, industrial/environmental monitoring, remote asset monitoring and mesh network applications.

4. Specs

Electrical Properties

1.1 Frequency 433 MHz
1.2 Gain (peak) 6 dBi
1.3 V.S.W.R 1.5 MAX
1.4 Return Loss -15dB Maximum
1.5 Radiation Omni-directional
1.6 Polarization Linear Vertical
1.7 Power Handling 100 W

Mechanical Properties

2.1 Cable
2.2 Antenna Cover Fiberglass
2.3 Antenna Base Brass
2.4 Operating Temperature -20℃ ~ +65℃
2.5 Storage Temperature -30℃ ~ +75℃
2.6 Color Grey
2.7 Connector N Male or N Female

5. Antenna Drawing

Outdoor 6dBi High Gain UHF RFID Antenna ISM 433MHz Omni Directional Fiberglass Antenna

6. VSWR

Outdoor 6dBi High Gain UHF RFID Antenna ISM 433MHz Omni Directional Fiberglass Antenna

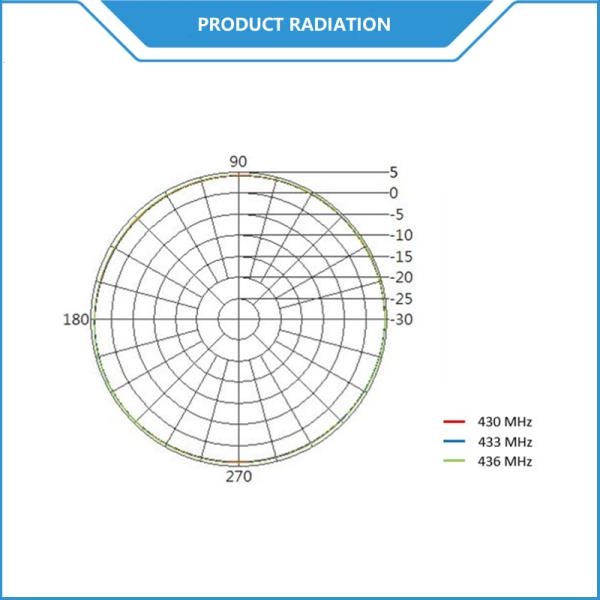

7. Radiation Pattern

Outdoor 6dBi High Gain UHF RFID Antenna ISM 433MHz Omni Directional Fiberglass Antenna
