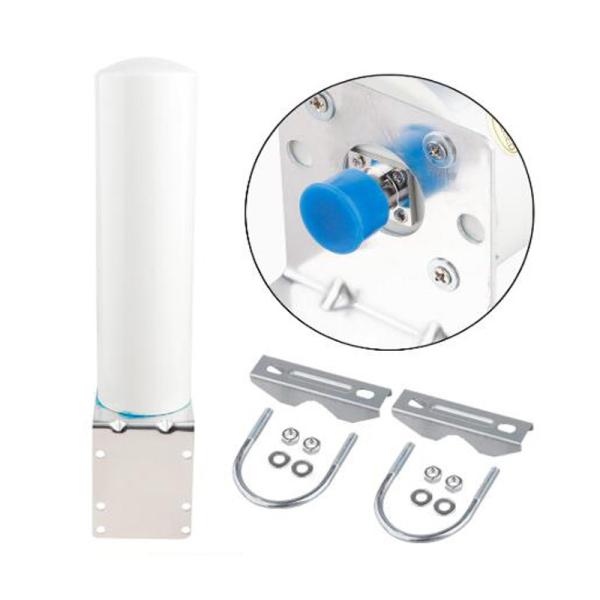

Outdoor High Gain 2G/3G/4G LTE Bracket Mount Omni Directional Antenna
Outdoor High Gain 2G/3G/4G LTE Bracket Mount Omni Directional Antenna
Specifications
Brand Name :
MS
Model Number :
MS-4GLTE-PT-001
Certification :
RoHS
Place of Origin :
China
MOQ :
100 PCS
Price :
USD$ 10 / PCS - USD$ 15 / PCS
Payment Terms :
D/P
Supply Ability :
1000 PCS
Delivery Time :
5-8 days
Packaging Details :
50 PCS / Box
Product Name :
Outdoor 4G LTE Wall Mount Antenna
Frequency Range :
690-960 / 1710-2700 MHz
Gain :
5 dBi
VSWR :
< 2.5
Power Handling :
20 W
Polarization :
Vertical / Linear
Impedance :
50 Ohm
Dimension :
240 * 60 mm
Weight :
0.52 kg
Connector :
FME / SMA / N
Radiator :
Aluminium
Radome :
PVC
Lightning Protection :
Direct Ground
Mounting Method :
Wall Mount
Description

1. Product Name

Outdoor High Gain 2G 3G 4G LTE Bracket Mount Omni Directional Antenna

2. Description

--2.1 Applications

Machine to Machine (M2M)

Caravans. RTV

RFID,ISM,WISP Equipments

Public Security Wireless Systems

Cover Cellular GSM / PCS (US and Worldwide)

LTE,3G,GSM, CDMA,DCS,PCS or WIFI Repeaters

--2.2 Features

Vertical or Horizontal

DC Grounded for Lightning Protection

Wall Mount or Mast Mount

Indoor or Outdoor Use

3. Introduction

This high gain omni-directional antenna covers all frequencies bands needed for 4G LTE, but also the bands for HSDPA , 3G , EDGE , GPRS , VOICE and 2.4G WIFI bands. Its configuration makes it suitable for fixed installations of any frequency band. This is one of the few omni-directional antennas in the world that offers consistent high gain over a quite wide frequency band with excellent radiation pattern performance. It also makes it a very popular choice with installers because of its base station agile. It is also ideal for machine to machine (M2M) applications that are communicating through GSM networks (GPRS,EDGE,3G,HSPA,LTE)

4. Specs

Electrical Properties

1.1 Frequency 690-960 / 1710-2700 MHz
1.2 Gain (peak) 5 dBi
1.3 V.S.W.R 2.5 MAX
1.4 Return Loss -5 dB Maximum
1.5 Radiation Omni-directional
1.6 Polarization Linear Vertical
1.7 Power Handling 20W

Mechanical Properties

2.1 Cable RG 58U
2.2 Antenna Cover PC
2.3 Antenna Base Bracket
2.4 Operating Temperature -20℃ ~ +65℃
2.5 Storage Temperature -30℃ ~ +75℃
2.6 Color Black
2.7 Connector SMA Plug / FME / N

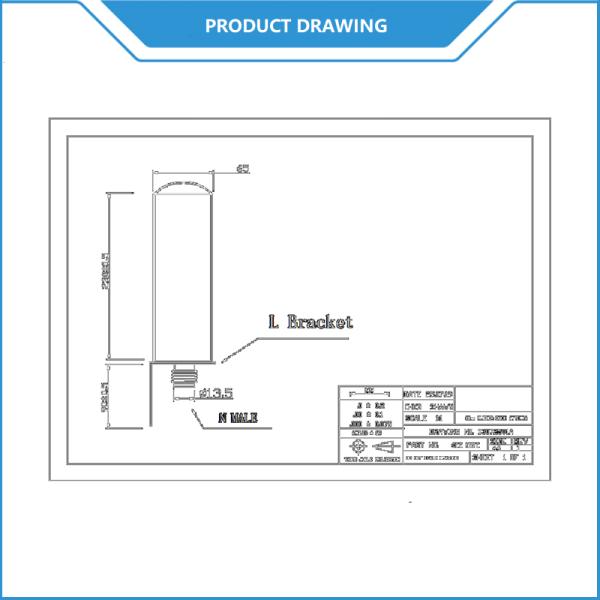

5. Antenna Drawing

Outdoor High Gain 2G/3G/4G LTE Bracket Mount Omni Directional Antenna

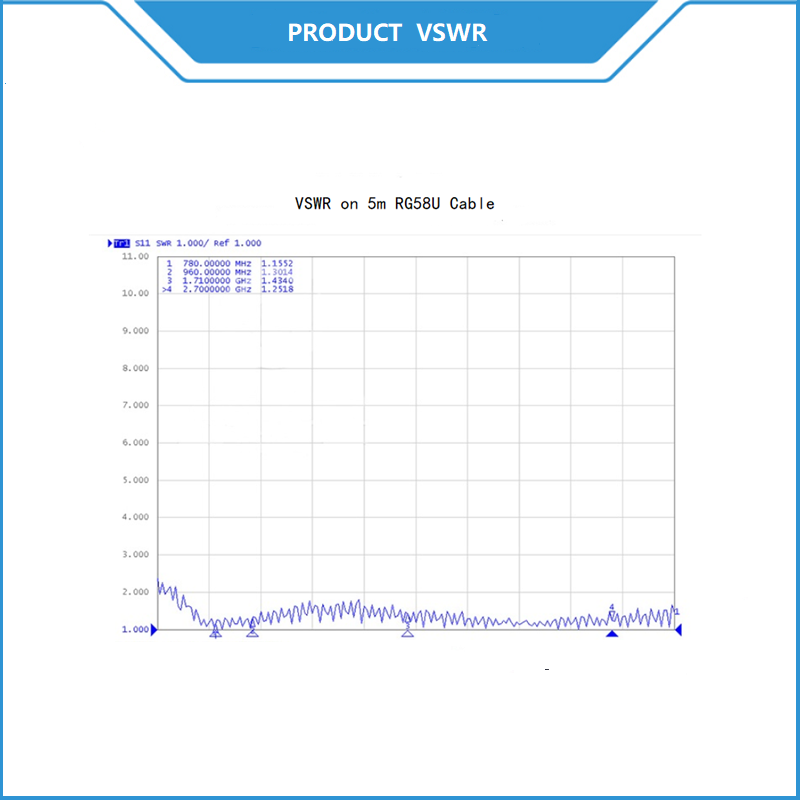

6. VSWR

Outdoor High Gain 2G/3G/4G LTE Bracket Mount Omni Directional Antenna

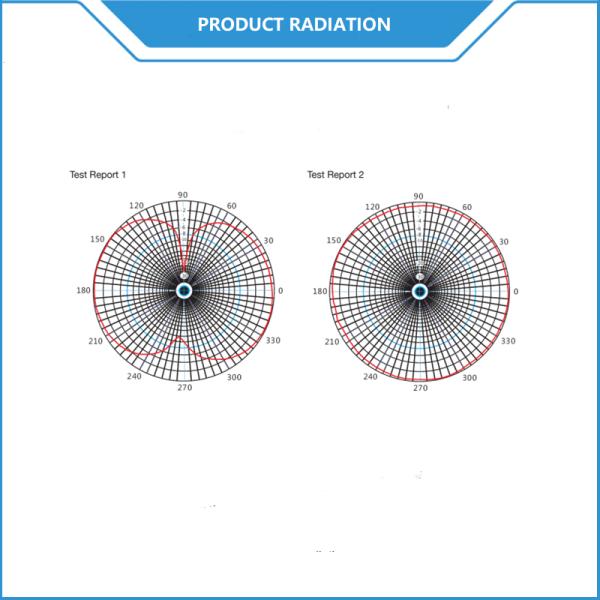

7. Radiation Pattern

Outdoor High Gain 2G/3G/4G LTE Bracket Mount Omni Directional Antenna
