Outdoor 9dBi High Gain GSM/3G/4G LTE Cellular LPDA Antenna
Outdoor 9dBi High Gain GSM/3G/4G LTE Cellular LPDA Antenna
Specifications
Brand Name :
MS
Model Number :
MS-4GDS-001
Certification :
RoHS
Place of Origin :
China
MOQ :
10 PCS
Price :
USD$ 15 / PCS - USD$ 20 / PCS
Payment Terms :
D/P
Supply Ability :
10000 PCS
Delivery Time :
5-8 days
Packaging Details :
10 PCS / BOX
Product Name :
Outdoor GSM/3G/4G LTE Cellular LPDA Antenna
Keyword :
Outdoor LPDA Antenna
Frequency Range :
700-2700MHz
Gain :
9dBi
VSWR :
< 2.0
Impedance :
50 Ohm
Polarization :
Vertical
Radiation Pattern :
Directional
Connector :
N Female
Dimensions :
295*207*60 mm
Description

1. Product Name

Outdoor 9dBi High Gain GSM/3G/4G LTE Cellular LPDA Antenna

2. Description

--2.1 Applications

GSM/CDMA/PCS/DCS/3G/4G/WLAN

Distributed Antenna Systems, DAS

Fixed Wireless Voice and Data Applications

IEEE802.11b/g/n Access Points and Routers

M2M Communications (ATMs, Financial Data Processing, Telemetry)

--2.2 Features

9dBi High Gain

Broad Band, Low VSWR

All Weather Operation

Ideal For Multiband Access Points and Routers

Supplied with Tilt and Swivel Mast Bracket

3. Introduction

This is a high performance wide band log periodic antenna designed to operate from 698-2700MHz. This wide design eliminates the need to purchase different antennas for each frequency. The simplified installation since the same antenna can be used for a wide array of wireless applications where wide coverage desired .

It is also ideal for distributed antenna system ,DAS. A DAS system is used to distribute cellular and WIFI signals throughout a building or area. It is suited for directional and multipoint IEEE 802.11b/g/n wireless LANs, public wireless hotspot applications and other systems operating in the 2.4GHz ISM band.

4. Specs

Electrical Properties

1.1 Frequency 700-2700MHz
1.2 Gain (peak) 9 dBi
1.3 V.S.W.R 2.0 MAX
1.4 Return Loss -10dB Maximum
1.5 Radiation Directional
1.6 Polarization Vertical
1.7 Power Handling 10W

Mechanical Properties

2.1 Cable RG58
2.2 Antenna Cover ABS
2.3 Antenna Base ABS
2.4 Operating Temperature -20℃ ~ +65℃
2.5 Storage Temperature -30℃ ~ +75℃
2.6 Color Black / White
2.7 Connector N Female

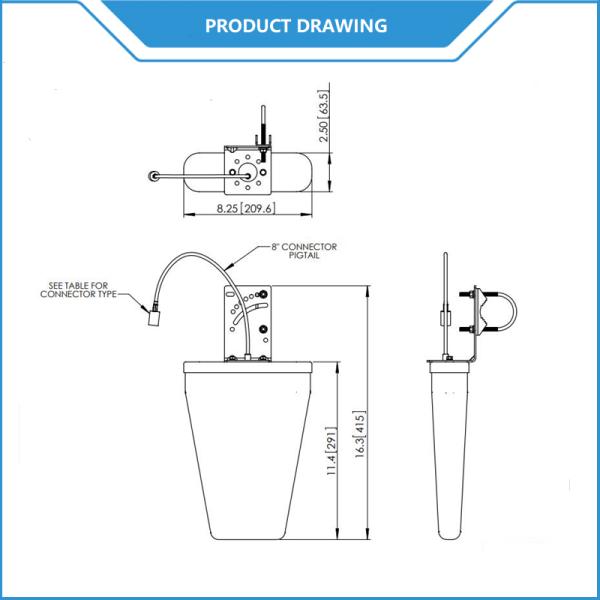

5. Antenna Drawing

Outdoor 9dBi High Gain GSM/3G/4G LTE Cellular LPDA Antenna

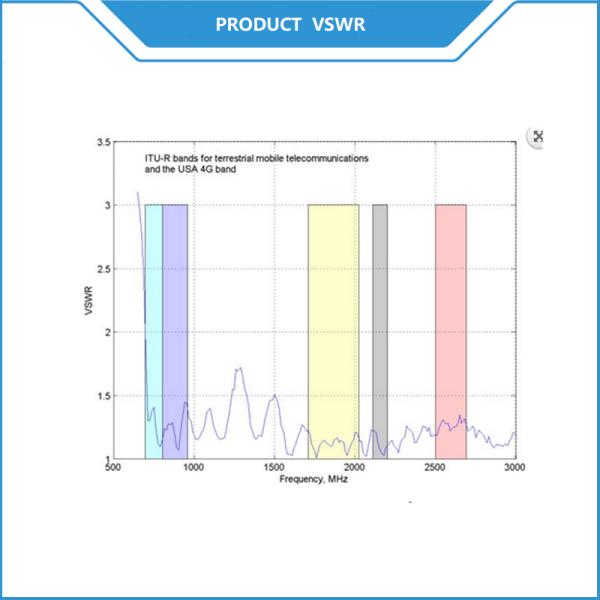

6. VSWR

Outdoor 9dBi High Gain GSM/3G/4G LTE Cellular LPDA Antenna

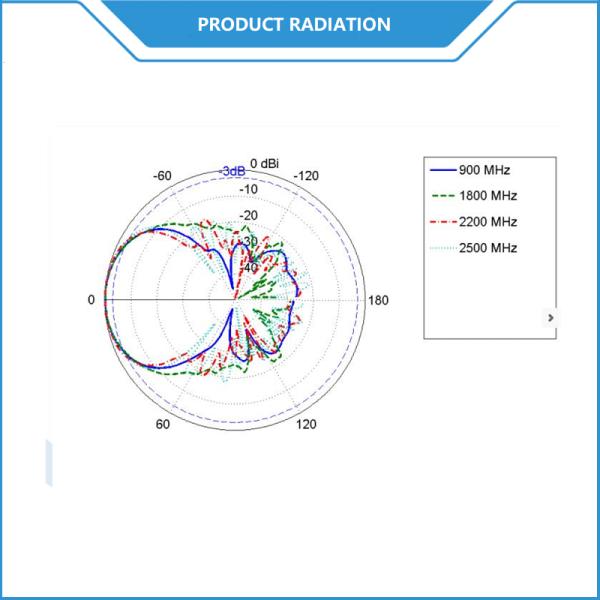

7. Radiation Pattern

Outdoor 9dBi High Gain GSM/3G/4G LTE Cellular LPDA Antenna
