External Penta Band GSM UMTS 2G 3G Antenna Hinged SMA Male Dipole Antenna
External Penta Band GSM UMTS 2G 3G Antenna Hinged SMA Male Dipole Antenna
Specifications
Brand Name :
MS
Model Number :
MS-GSMJT-003
Certification :
RoHS
Place of Origin :
China
MOQ :
100 PCS
Price :
USD$ 0.6 / PCS - USD$ 0.8 / PCS
Payment Terms :
D/P
Supply Ability :
10000 PCS
Delivery Time :
5-8 days
Packaging Details :
100 PCS / BAG
Product Name :
External Penta-Band GSM UMTS Hinged SMA Male Dipole Antenna
Keyword :
GSM Terminal Antenna
Frequency Range :
824-960 /1710-2170 MHz
Gain :
2 dBi
VSWR :
< 2.0
Impedance :
50 ohm
Polarization :
Linear
Radiation Pattern :
Omni
Length :
108 mm
Connector :
SMA Male or Customized
Description

External Penta-Band GSM UMTS Hinged SMA Male Dipole Antenna

1. Product Name

External Penta-Band GSM UMTS Hinged SMA Male Dipole Antenna

2. Description

--2.1 Applications

900MHz ISM Band
Cellular Band Applications
900MHz Digital Spread Spectrum Radios
900MHz Telemetry Products
LoRa, IoT, M2M Applications

--2.2 Features

2dBi Gain

Omni Directional

Rubber Duck Terminal Type

SMA Male Connector

108mm In Length

3. Introduction

This high performance GSM (900/1800MHz) omnidirectional “rubber-duck” antenna provides broad coverage and 3 dBi gain.
Connection is made via RA SMA Male connector with a hardened TPEE casing, this antenna is a good compact 2G antenna for remote monitoring devices or telematics applications.

4. Specs

Electrical Properties

1.1 Frequency 824-960 / 1710-2170 MHz
1.2 Gain (peak) 2dBi
1.3 V.S.W.R 2.0 MAX
1.4 Return Loss -10dB Maximum
1.5 Radiation Omni-directional
1.6 Polarization Linear Vertical
1.7 Power Handling 5W

Mechanical Properties

2.1 Cable RG178
2.2 Antenna Cover TPEE
2.3 Antenna Base PC+PBT
2.4 Operating Temperature -20℃ ~ +65℃
2.5 Storage Temperature -30℃ ~ +75℃
2.6 Color Black
2.7 Connector SMA Plug or Customized

5. Antenna Drawing

External Penta Band GSM UMTS 2G 3G Antenna Hinged SMA Male Dipole Antenna

6. VSWR

External Penta Band GSM UMTS 2G 3G Antenna Hinged SMA Male Dipole Antenna

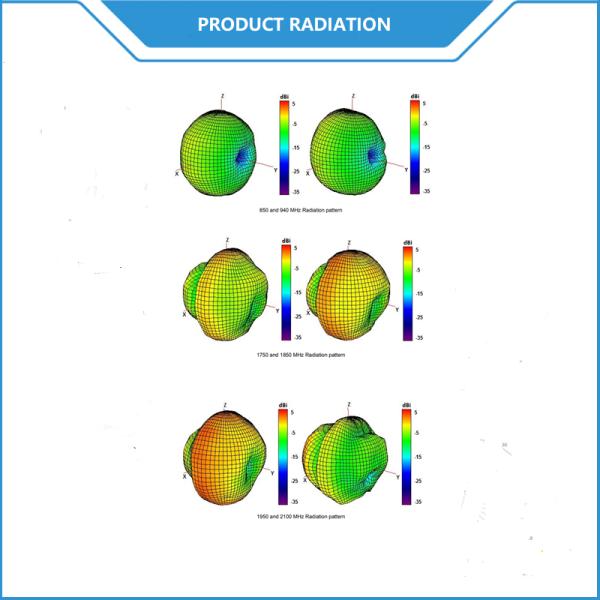

7. Radiation Pattern

External Penta Band GSM UMTS 2G 3G Antenna Hinged SMA Male Dipole Antenna
