Internal BT 2.4GHz WIFI Embedded Ceramic Chip Antenna
Internal BT 2.4GHz WIFI Embedded Ceramic Chip Antenna
Specifications
Brand Name :
MS
Model Number :
MS-2400TC-001
Certification :
RoHS
Place of Origin :
China
MOQ :
100 PCS
Price :
USD$ 0.3 / PCS - USD$ 0.35 / PCS
Payment Terms :
D/P
Supply Ability :
10000 PCS
Delivery Time :
5-8 days
Packaging Details :
100 PCS / BAG
Product Name :
BT / 2.4GHz WIFI Embedded Chip Antenna
Keyword :
2.4GHz Chip Antenna
Frequency Range :
2400-2483 MHz
Gain :
2 dBi
VSWR :
< 2.0
Impedance :
50 Ohm
Polarization :
Linear
Radiation Pattern :
Omni-Directional
Weight :
< 0.02 g
Size :
3.2*1.6*1.2 mm
Description

Internal BT/WIFI 2.4GHz Embedded Ceramic Chip Antenna

1. Product Name

Internal BT/WIFI 2.4GHz Embedded Ceramic Chip Antenna

2. Description

--2.1 Applications

2.4GHz WIFI

Bluetooth

Zigbee

Wireless LANs

--2.2 Features

Embedded Ceramic Chip Antenna

2dBi Gain

On Board SMD Antenna

Available in Tape & Reel

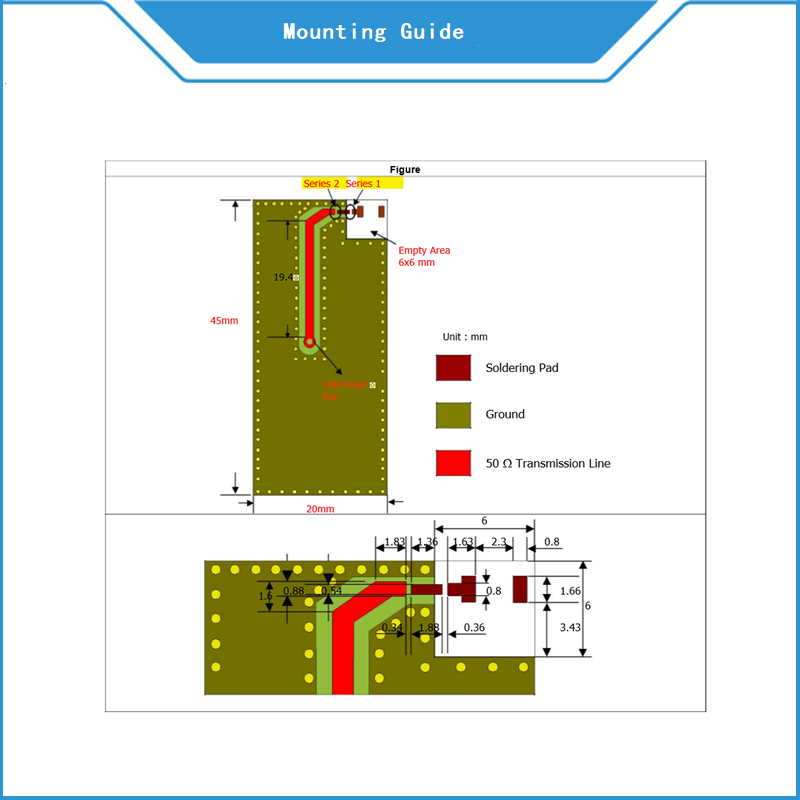

3. Mounting Guide

Internal BT 2.4GHz WIFI Embedded Ceramic Chip Antenna

4. Specs

Electrical Properties

1.1 Frequency 2.4 GHz ~ 2.5 GHz
1.2 Gain (peak) 2dBi
1.3 V.S.W.R 2.0 MAX
1.4 Return Loss -10dB Maximum
1.5 Radiation Omni-directional
1.6 Polarization Linear
1.7 Power Handling 1W

Mechanical Properties

2.1 Cable
2.2 Antenna Cover
2.3 Antenna Base
2.4 Operating Temperature -20℃ ~ +65℃
2.5 Storage Temperature -30℃ ~ +75℃
2.6 Color Blue
2.7 Connector Solder Plate

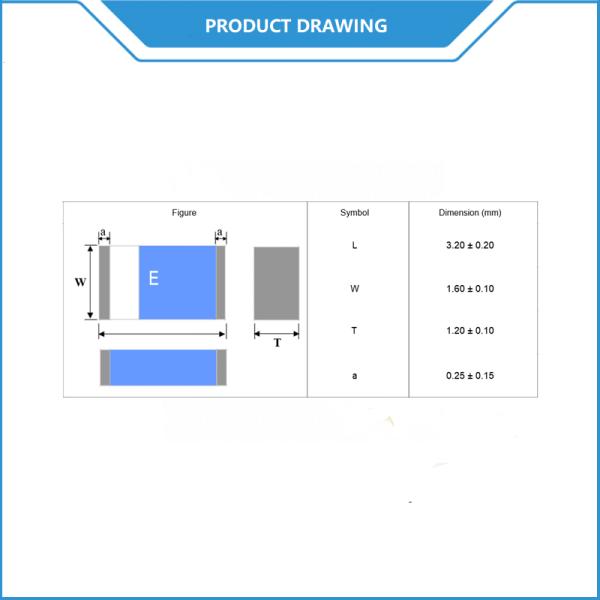

5. Antenna Drawing

Internal BT 2.4GHz WIFI Embedded Ceramic Chip Antenna

6. VSWR

Internal BT 2.4GHz WIFI Embedded Ceramic Chip Antenna

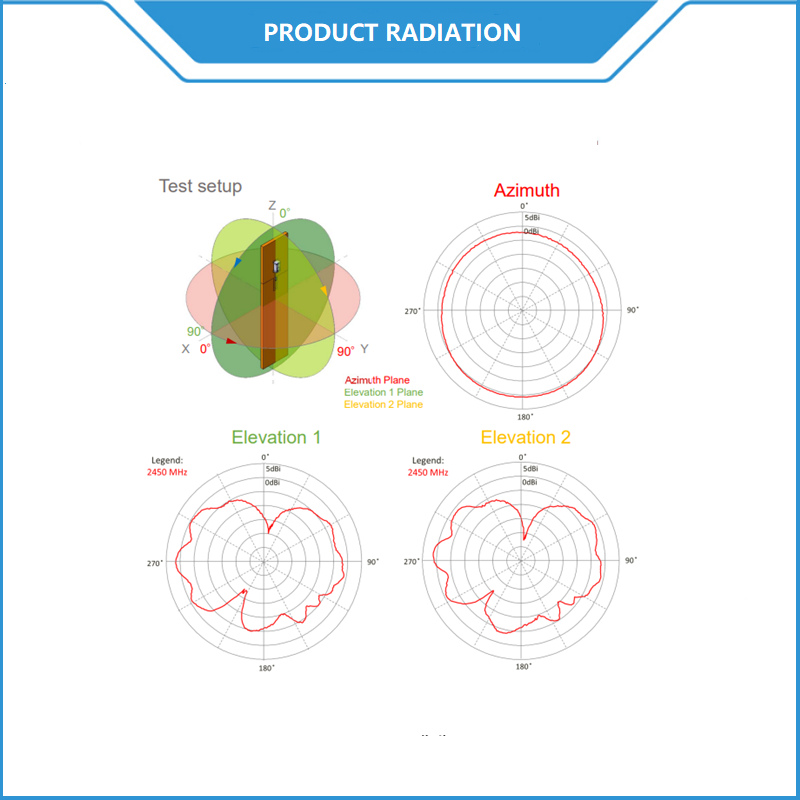

7. Radiation Pattern

Internal BT 2.4GHz WIFI Embedded Ceramic Chip Antenna
