External 2.4GHz WIFI Bluetooth Antenna Through Hole Mount WLAN Puck Antenna
External 2.4GHz WIFI Bluetooth Antenna Through Hole Mount WLAN Puck Antenna
Specifications
Brand Name :
MS
Model Number :
MS-24JG-005
Certification :
RoHS
Place of Origin :
China
MOQ :
100 PCS
Price :
USD$ 1.5 / PCS - USD$ 2 / PCS
Payment Terms :
D/P
Supply Ability :
100000 PCS
Delivery Time :
5-8 days
Packaging Details :
100 PCS / BAG
Product Name :
Through Hole Mount 2.4GHz WIFI Puck Antenna
Frequency Range :
2400-2483 MHz
BandWidth :
100 MHz
VSWR :
< 1.8
Impedance :
50 Ohm
Polarization :
Vertical
Power Capacity :
2 W
Dimensions :
46 * 15 mm
Connector :
SMA Plug
Cable Type :
RG 174
IP Rated :
IP 67
Mounting :
Screw Mount
Description

External 2.4GHz Through Hole Mount WIFI/WLAN Puck Antenna

1. Product Name

External 2.4GHz Through Hole Mount WIFI/WLAN Puck Antenna

2. Description

--2.1 Applications:

Access Points

Base Station

Public Safety

Repeaters

Small Cell

--2.2 Features:

ISM Band on 2.4GHz

Omni-Directional with 3dBi Gain

IP 67 Rated

SMA Plug

3. Introduction

This is a very compact, puck shaped antenna, tuned to 2.4GHz - WiFi / WLAN / Bluetooth / Zigbee frequencies. It has a diameter of 46mm and height of 15mm, so this antenna will fit comfortably on to most surfaces. Achieving an IP67 rating, this puck antenna is well suited to mounting securely inside or outside, with its 8mm long screw thread that provides a firm fix to its mounting surface. Furthermore, it has an adhesive base for dual mounting purposes and to prevent the risk of water ingress when used in outdoor environments. Also, it is ideal for WiFi based applications that need a high performance antenna that can be mounted securely and remotely from the modem.

This type of antenna is tuned to operate within the 2.4 to 2.5GHz frequencies, making this antenna perfect for WiFi, Bluetooth and Zigbee applications. It achieves a high peak gain of 3dBi, helping to improve the short range signal transmission/reception of your WiFi modems, Bluetooth gadgets or even your low power ZigBee sensor

4. Specs

Electrical Properties

1.1 Frequency 2.4 GHz ~ 2.5 GHz
1.2 Gain (peak) 3 dBi
1.3 V.S.W.R 2.0 MAX
1.4 Return Loss -10dB Maximum
1.5 Radiation Omni-directional
1.6 Polarization Linear Vertical
1.7 Power Handling 2 W

Mechanical Properties

2.1 Cable RG174
2.2 Antenna Cover TPE
2.3 Antenna Base Screw Mount
2.4 Operating Temperature -20℃ ~ +65℃
2.5 Storage Temperature -30℃ ~ +75℃
2.6 Color Black
2.7 Connector SMA Plug

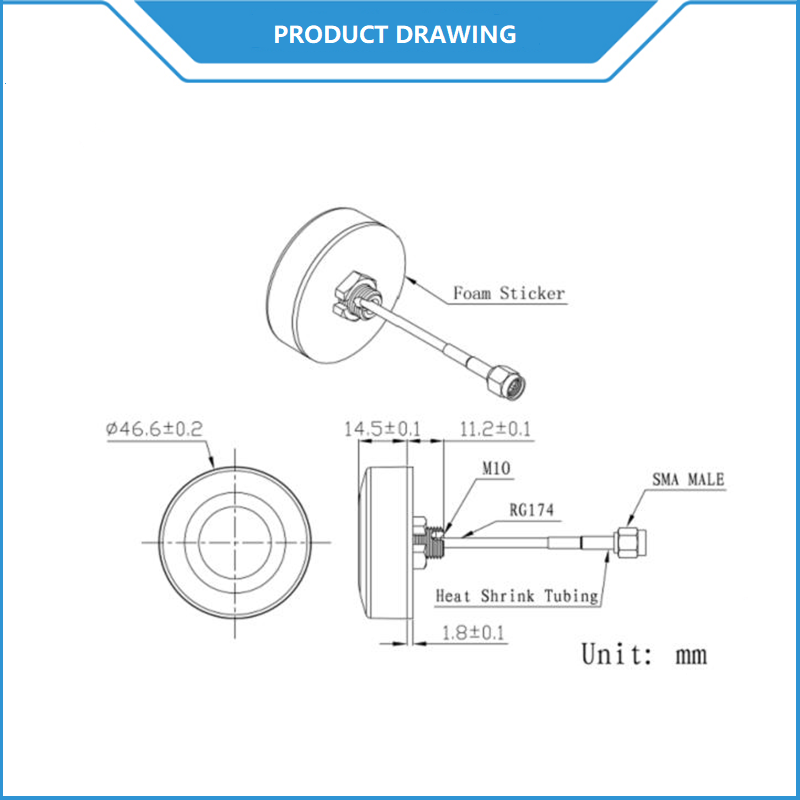

5. Antenna Drawing

External 2.4GHz WIFI Bluetooth Antenna Through Hole Mount WLAN Puck Antenna

6. VSWR

External 2.4GHz WIFI Bluetooth Antenna Through Hole Mount WLAN Puck Antenna

7. Radiation Pattern

External 2.4GHz WIFI Bluetooth Antenna Through Hole Mount WLAN Puck Antenna
