External 2.4GHz 9dBi High Performance Rubber Duck Wireless LAN Antenna
External 2.4GHz 9dBi High Performance Rubber Duck Wireless LAN Antenna
Specifications
Brand Name :
MS
Model Number :
MS-2400JT-007
Certification :
RoHS
Place of Origin :
China
MOQ :
100 PCS
Price :
USD$ 1.5 / PCS - USD$ 2 / PCS
Payment Terms :
D/P
Supply Ability :
100000 PCS
Delivery Time :
5-8 days
Packaging Details :
100 PCS / BAG
Product Name :
2.4GHz 9dBi Wireless LAN Antenna
Frequency Range :
2400-2483 MHz
Gain :
9dBi
VSWR :
< 2.0
Impedance :
50 Ohm
Horizontal Beam Width :
360 Degree
Vertical Beam Width :
25 Degree
Length :
375 mm
Polarization :
Vertical
Connector :
SMA Male / RP SMA Male
Description

External 2.4GHz 9dBi High Performance Rubber Duck Wireless LAN Antenna

1. Product Name

External 2.4GHz 9dBi High Performance Rubber Duck Wireless LAN Antenna

2. Description

--2.1 Applications:

2.4GHz ISM Band

IEEE 802.11b, 802.11g Wireless LAN

IEEE 802.11n

WIFI Access Points

Bluetooth

Wireless Video Systems

Multipoint and Mobile Applications

--2.2 Features:

High Performance 9dBi

Flexible Rubber Duck Antenna

Tilt and Swivel Design

SMA Male Connector / RP SMA Male Connector

3. Introduction

This high performance 2.4GHz omni-directional rubber duck wifi antenna provides broad coverage with 9dBi high gain. It is a coaxial sleeve design with an omni-directional pattern. It is ideally suited for IEEE802.11b,802.11g and 802.11n wireless LANs, Bluetooth and other WLAN applications

4. Specs

Electrical Properties

1.1 Frequency 2.4 GHz ~ 2.5 GHz
1.2 Gain (peak) 9 dBi
1.3 V.S.W.R 2 MAX
1.4 Return Loss -10dB Maximum
1.5 Radiation Omni-directional
1.6 Polarization Linear Vertical
1.7 Power Handling 1W

Mechanical Properties

2.1 Cable RG178
2.2 Antenna Cover TPE
2.3 Antenna Base PC+PBT
2.4 Operating Temperature -20℃ ~ +65℃
2.5 Storage Temperature -30℃ ~ +75℃
2.6 Color Black
2.7 Connector RP-SMA Plug / SMA Plug

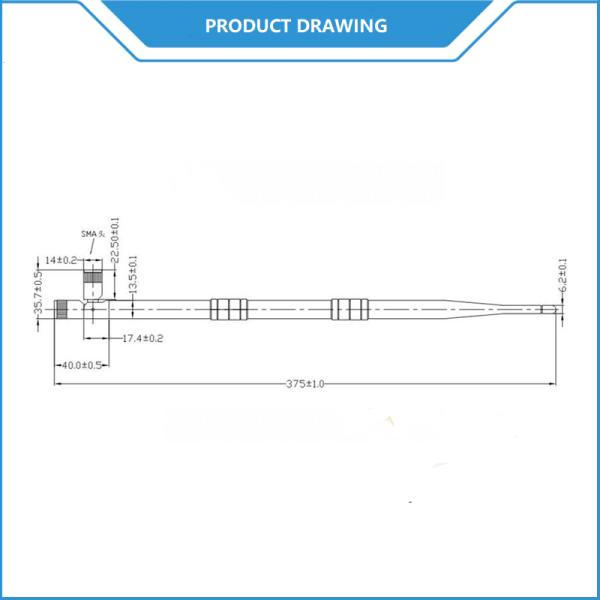

5. Antenna Drawing

External 2.4GHz 9dBi High Performance Rubber Duck Wireless LAN Antenna

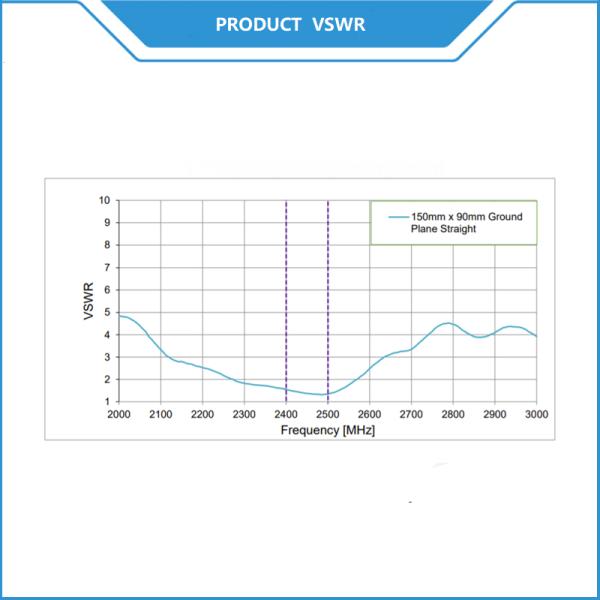

6. VSWR

External 2.4GHz 9dBi High Performance Rubber Duck Wireless LAN Antenna

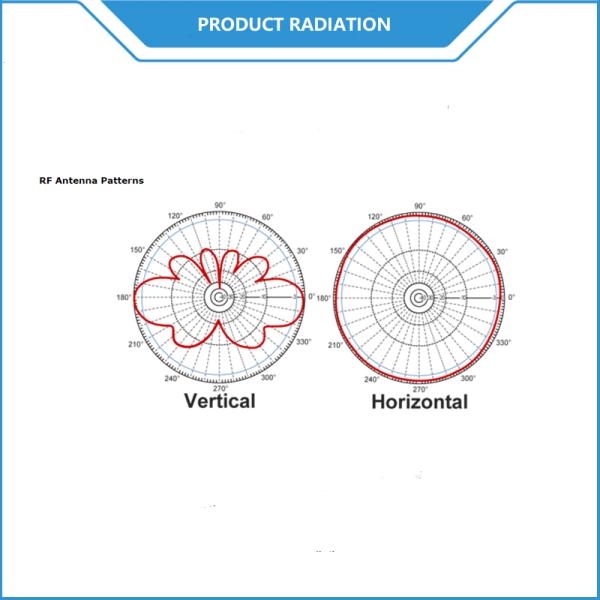

7. Radiation Pattern

External 2.4GHz 9dBi High Performance Rubber Duck Wireless LAN Antenna
