Fixed Mount WIFI Bluetooth Antenna External IP65 2.4 5.8GHz Dual Band Vhf Uhf Antenna
Fixed Mount WIFI Bluetooth Antenna External IP65 2.4 5.8GHz Dual Band Vhf Uhf Antenna
Specifications
Brand Name :
MS
Model Number :
MS-2458GK-001
Certification :
RoHS
Place of Origin :
China
MOQ :
100 PCS
Price :
USD$ 1.5 / PCS - USD$ 2 / PCS
Payment Terms :
D/P
Supply Ability :
10000 PCS
Delivery Time :
8-10 days
Packaging Details :
100 PCS / BAG
Product Name :
Dual Band Fixed Mount WIFI Antenna
Frequency Range :
2400-2500 / 5150-5850 MHz
Gain :
2 dBi
VSWR :
< 2.0
Impedance :
50 Ohm
Polarization :
Linear
Cable Type :
RG178
Connector :
IPEX (U.FL) or SMA Plug
Description

1. Product Name

External IP65 Dual Band 2.4/5.8GHz Fixed Mount WIFI Antenna

2. Description

--2.1 Applications:

ISM Band on 2.4GHz and 5.8GHz

Bluetooth, Zigbee, BLE

M2M Applications

Wireless LANs

Hotspots

Wireless Videos

--2.2 Features:

2dBi Gain

IPEX (U.FL) Connector , SMA Male (optional)

RG178 Coaxial Cable

IP65

Fixed M4 Screw Mount

3. Specs

Electrical Properties

1.1 Frequency 2.4 GHz ~ 2.5 GHz / 5.15 GHz ~ 5.85 GHz
1.2 Gain (peak) 2 dBi
1.3 V.S.W.R 2.0 MAX
1.4 Return Loss -10dB Maximum
1.5 Radiation Omni-directional
1.6 Polarization Linear Vertical
1.7 Power Handling 1W

Mechanical Properties

2.1 Cable RG178
2.2 Antenna Cover TPE
2.3 Antenna Base M4 Screw Mount
2.4 Operating Temperature -20℃ ~ +65℃
2.5 Storage Temperature -30℃ ~ +75℃
2.6 Color Black
2.7 Connector IPEX (U.FL) or SMA Plug

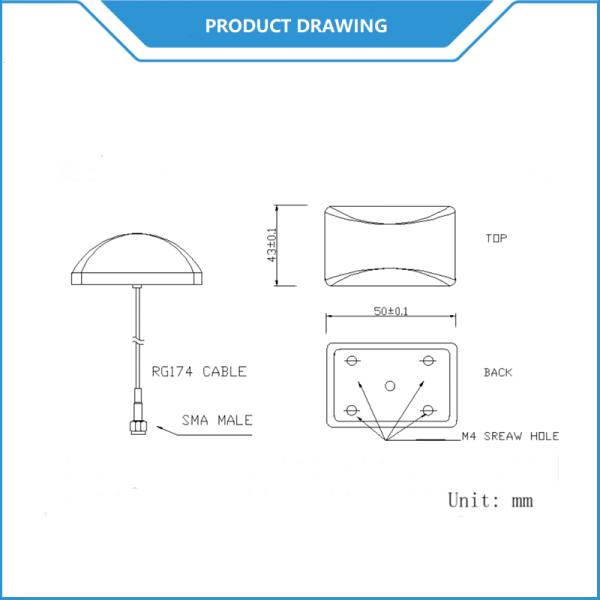

4. Antenna Drawing

Fixed Mount WIFI Bluetooth Antenna External IP65 2.4 5.8GHz Dual Band Vhf Uhf Antenna

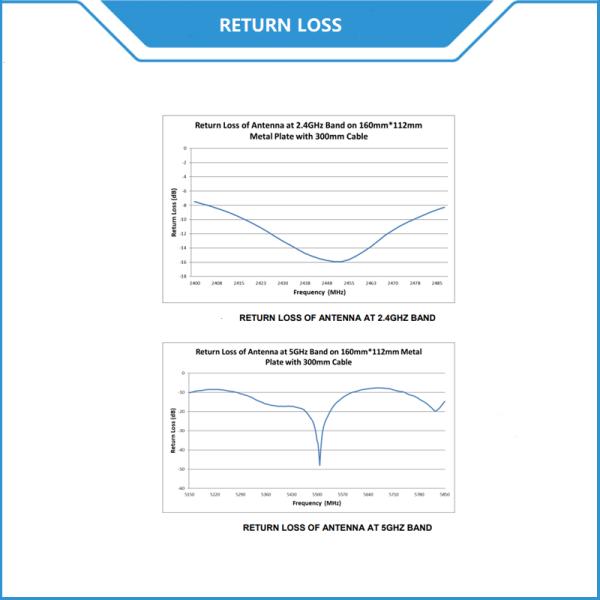

5. Return Loss

Fixed Mount WIFI Bluetooth Antenna External IP65 2.4 5.8GHz Dual Band Vhf Uhf Antenna

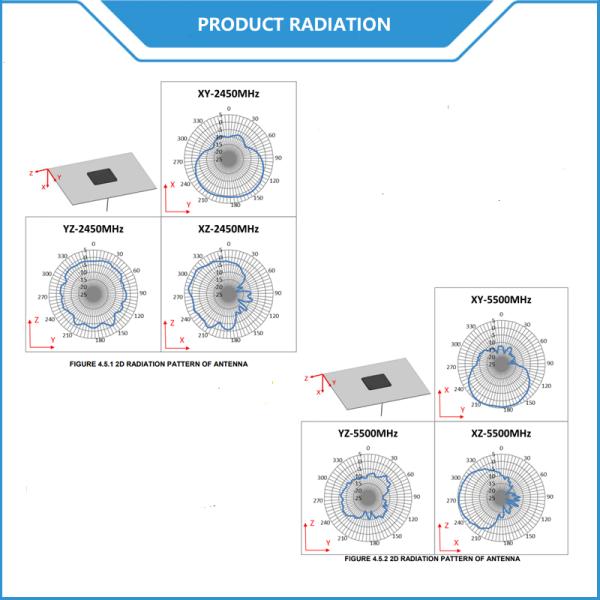

6. Radiation Pattern

Fixed Mount WIFI Bluetooth Antenna External IP65 2.4 5.8GHz Dual Band Vhf Uhf Antenna
