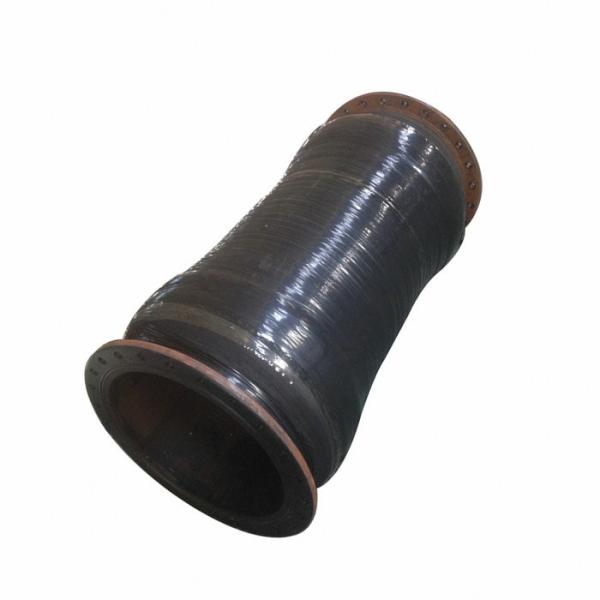

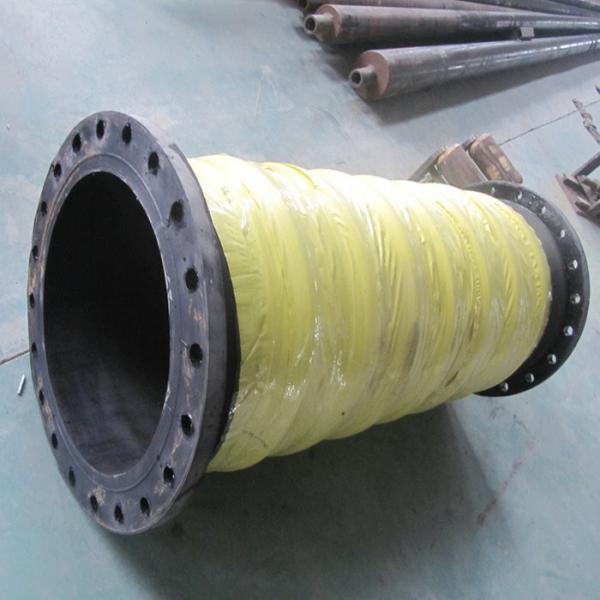

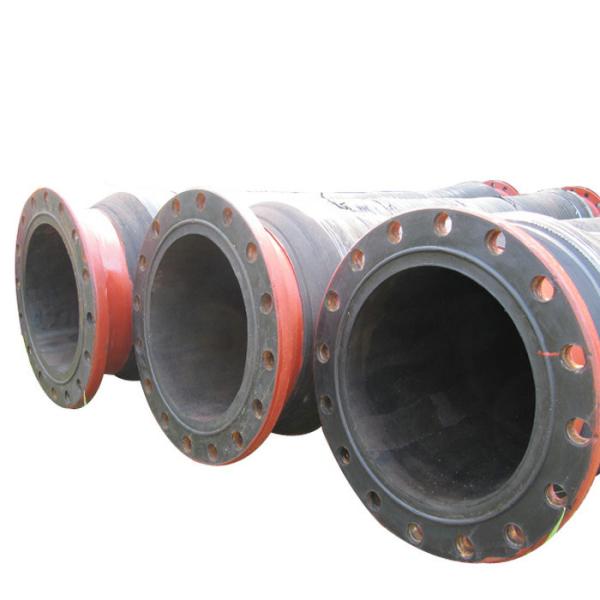

Slurry Suction Rubber Dredge Hose , Oil Suction And Discharge Hose
Slurry Suction Rubber Dredge Hose , Oil Suction And Discharge Hose
Slurry Suction Rubber Dredge Hose , Oil Suction And Discharge Hose
Slurry Suction Rubber Dredge Hose , Oil Suction And Discharge Hose
Slurry Suction Rubber Dredge Hose , Oil Suction And Discharge Hose
Slurry Suction Rubber Dredge Hose , Oil Suction And Discharge Hose
Specifications
Brand Name :
ZEBUNG
Model Number :
ZB-D-D02
Certification :
ISO 9000
Place of Origin :
Hengshui,China
MOQ :
6PCS
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
Within 20days
Packaging Details :
steel pallet or standard sea-worthy packaging
Model NO. :
300mm-1100mm
Working pressure :
4bar-12bar
Safety factor :
3:1
Ideal working temperature :
-20℃-+80℃
Usage :
For port,dock,discharge seawater,sand,flood and etc
Logo :
Customized
Package :
steel pallet or standard sea-worthy packaging
Delivery time :
within 20days
Flange material :
Q235, A105 or others
Tube :
NR BR SBR
Reinforcement :
High tensile strength fabrics
Characteristics :
flexible anti-wave abrasion resistance
Description
Excellent quality Large Diameter slurry suction dredge rubber hose Oil Suction and Discharge Hose

Characters
1. Inner cover with excellent abrasion resistant and high quality.
2. Outer cover with excellent ageing resistance and corrosion resistance.
3. Wearing colored indicator layer.
4. Easy installation,good adhesion,long service life, easy assembly.
5. The large diameter can be up to 1100mm.
6. Other technical parameters can be made by clients' requirements

Application

For port,dock,discharge seawater,sand,flood and etc.Particularly suited to the work of dredging

construction for dock and port,building project and so on.the hose has good stiffness,can not be

abnormal abrasion,the arch and eddy of some part place of inner rubber that is formed by the

bend of the storm and tide

Technical Parameters:

ID

MM

Tolerance

mm

 Inner Diameter(mm)

W.P

BAR

B.P

BAR

 Length
300 ±2 300 4-12bar 36 1-11.8m
450 ±2 450 4-12bar 36 1-11.8m
560 ±2 560 4-12bar 36 1-11.8m
600 ±2 600 4-12bar 36 1-11.8m
700 ±2 700 8-15bar 45 1-11.8m
800 ±2 800 12-25bar 55 1-11.8m
900 ±2 950 15-25bar 75 1-11.8m
1000 ±2 1000 20-25bar 75 1-11.8m
1100 ±2 1100 25-30bar 80 1-11.8m

Slurry Suction Rubber Dredge Hose , Oil Suction And Discharge Hose
