Flexible Rubber Water Suction And Discharge Hose 1-1/4 Inch Impact Resistant
Flexible Rubber Water Suction And Discharge Hose 1-1/4 Inch Impact Resistant
Flexible Rubber Water Suction And Discharge Hose 1-1/4 Inch Impact Resistant
Flexible Rubber Water Suction And Discharge Hose 1-1/4 Inch Impact Resistant
Flexible Rubber Water Suction And Discharge Hose 1-1/4 Inch Impact Resistant
Flexible Rubber Water Suction And Discharge Hose 1-1/4 Inch Impact Resistant
Specifications
Brand Name :
Zebung
Model Number :
ZBWS09
Certification :
ISO9001
Place of Origin :
Hebei, China
MOQ :
500m
Price :
negotiate
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
5000m per day
Delivery Time :
10days
Packaging Details :
Plastic woven bags
Material :
Synthetic Rubber (NBR,EPDM,SBR,etc)
Cover :
Neoprene, EPDM,SBR,Synthetic rubber,etc
Reinforcement :
Tire Cord and one wire helix
Color :
Black,synthetic rubber
Safety Factor :
3:1
W.P :
10bar
Length: :
40m or 60m
Surface: :
Fabric, weathering and ozone resistant.
Character: :
flexible and Low pressure
Sample: :
Available
Description

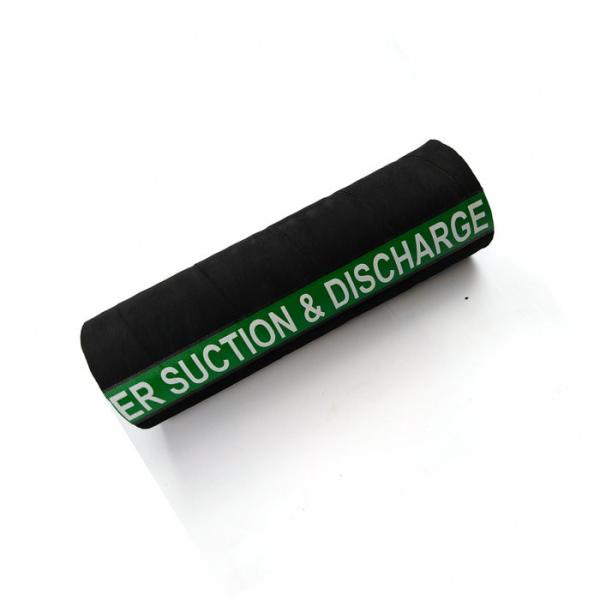

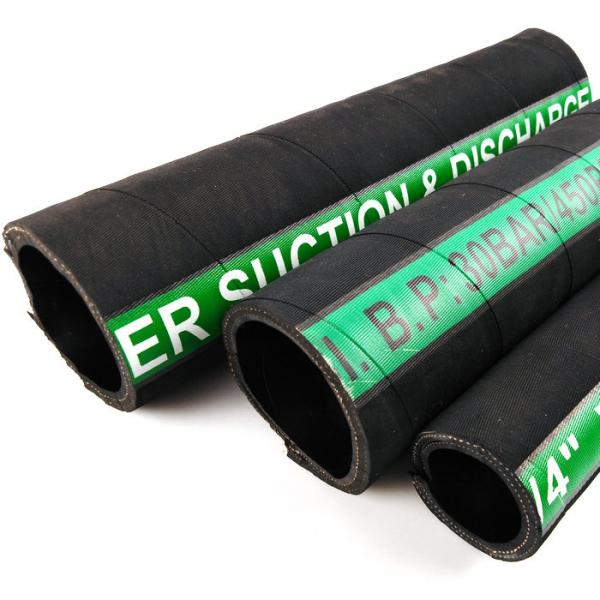

1-1/4 inch Flexible Rubber Water Suction and Discharge Hose

Structure:

1. The inner synthetic tube is black synthetic rubber, wear-resistant and impact-resistant
2. The framework is a layer of compound synthetic fabric laminate (High strength synthetic cord and helix wire)
3. The synthetic rubber cover can be black, smooth (wrapped finish) synthetic rubber, weathering and ozone resistant..

Characteristics:

The rubber hose is soft and convenient, the layer has good property of anti-aging and soft in flexibility. The hose has good property of bearing both the positive and negative pressure. The performance of the hose remains good even under the pressure of -80kpa (600mm mercury) at the vacuum. The burst pressure of the hose is 3 times or higher than the working pressure

Specification:

I.D.
O.D.
W.P.
B.P.
B.R.
Weight
Length
mm inch mm psi bar psi bar mm kg/m ft m
19 3/4" 30 150 10 450 30 100 0.67 200 61
25 1" 36 150 10 450 30 150 0.84 200 61
32 1-1/4" 44 150 10 450 30 190 1.2 200 61
38 1-1/2" 51 150 10 450 30 220 1.5 200 61
51 2" 64 150 10 450 30 300 1.93 200 61
64 2-1/2" 78 150 10 450 30 380 2.55 200 61
76 3" 90 150 10 450 30 450 3.08 200 61
102 4" 120 150 10 450 30 550 4.97 200 61
152 6" 171 150 10 450 30 750 8.17 100 30.5
203 8" 224 150 10 450 30 1100 12.5 100 30.5

Flexible Rubber Water Suction And Discharge Hose 1-1/4 Inch Impact Resistant

Flexible Rubber Water Suction And Discharge Hose 1-1/4 Inch Impact Resistant
