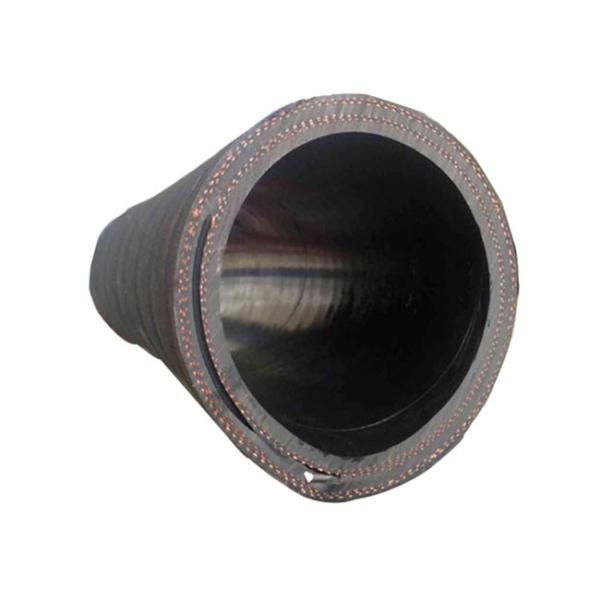

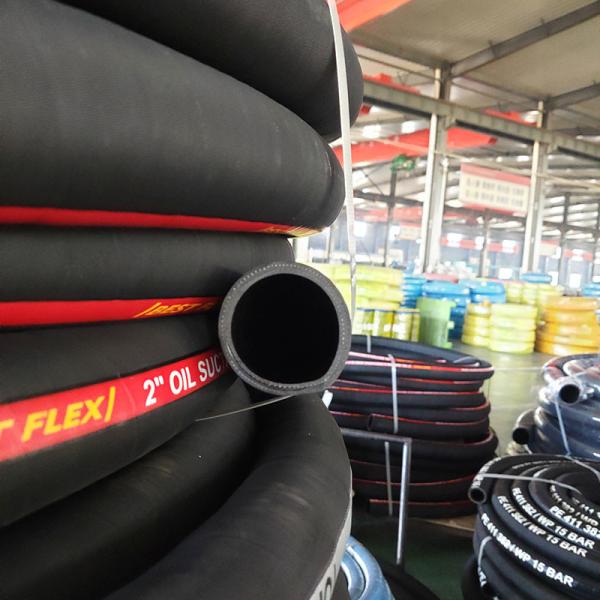

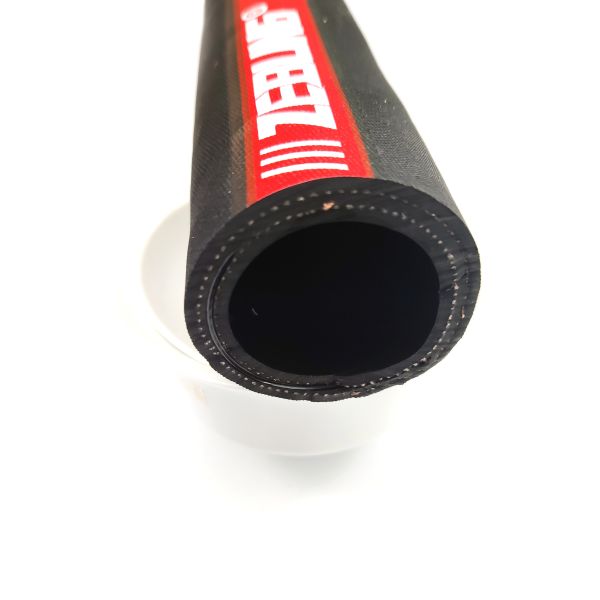

Flexible Reinforced Hydraulic Oil Hose For Suction Abrasion And Wear Resistance
Flexible Reinforced Hydraulic Oil Hose For Suction Abrasion And Wear Resistance
Flexible Reinforced Hydraulic Oil Hose For Suction Abrasion And Wear Resistance
Flexible Reinforced Hydraulic Oil Hose For Suction Abrasion And Wear Resistance
Flexible Reinforced Hydraulic Oil Hose For Suction Abrasion And Wear Resistance
Flexible Reinforced Hydraulic Oil Hose For Suction Abrasion And Wear Resistance
Specifications
Brand Name :
Zebung
Model Number :
ZBHO02
Certification :
ISO9001
Place of Origin :
China
MOQ :
500m
Price :
negotiate
Payment Terms :
T/T
Supply Ability :
5000m per day
Delivery Time :
10day
Packaging Details :
Plastic woven bags
Material :
NBR
Size :
6-254mm
Color :
Black
B.P :
30bar
Length :
50m,60m
Sample :
Available
Description

Steel Reinforced Expandable Hydraulic Oil Suction and Discharge Hose

Hydraulic Oil Suction Hose, also called flexible reinforced hydraulic oil hose, hydraulic oil discharge hose is a type of flexible hose for suction, discharge and delivery of oil with aromatic content. The inner and outer rubber material has excellent oil, abrasion and wear resistance performance. Additional, it has up to 50% aromatic content resistant performance for heavy duty applications. Besides, the hydraulic oil rubber hose can be customized into armoured hose or added with steel spiral wires to improve the abrasion resistance performance and extend service life.

Flexible Reinforced Hydraulic Oil Hose For Suction Abrasion And Wear ResistanceFlexible Reinforced Hydraulic Oil Hose For Suction Abrasion And Wear Resistance

Hydraulic Oil Suction Hose Construction:
Tube: Black, smooth, Nitrile rubber.
Reinforcement: Multi plies high strength synthetic fabric and steel wire helix skeleton.
Cover: Black, wrapped surface, weather and ozone resistant, synthetic rubber

I.D. O.D. W.P. B.P. B.R. Weight Length
mm inch mm psi bar psi bar mm kg/m ft m
19 3/4" 30 150 10 450 30 100 0.67 200 61
25 1" 36 150 10 450 30 150 0.84 200 61
32 1-1/4" 44 150 10 450 30 190 1.2 200 61
38 1-1/2" 51 150 10 450 30 220 1.5 200 61
51 2" 64 150 10 450 30 300 1.93 200 61
64 2-1/2" 78 150 10 450 30 380 2.55 200 61
76 3" 90 150 10 450 30 450 3.08 200 61
102 4" 120 150 10 450 30 550 4.97 200 61
152 6" 171 150 10 450 30 750 8.17 100 30.5
203 8" 224 150 10 450 30 1100 12.5 100 30.5

Hydraulic Oil Suction Hose Application:
For suction and discharge of petroleum-based products, gasoline, with aromatic content up to 50%.

Hydraulic Oil Suction Hose Temperature: -32°C to +120°C

Hydraulic Oil Suction Hose Characteristic:
Weather and abrasion resistant cover
Both smooth and corrugated cover available
Flexible and full vacuum
For aromatic content up to 50%
