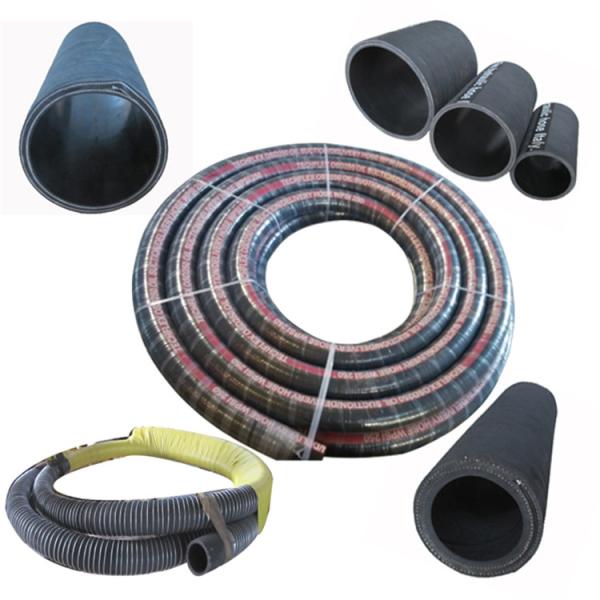

Electricity 20m 6mm Oil Suction And Delivery Hose With Steel Helix
Electricity 20m 6mm Oil Suction And Delivery Hose With Steel Helix
Electricity 20m 6mm Oil Suction And Delivery Hose With Steel Helix
Electricity 20m 6mm Oil Suction And Delivery Hose With Steel Helix
Electricity 20m 6mm Oil Suction And Delivery Hose With Steel Helix
Electricity 20m 6mm Oil Suction And Delivery Hose With Steel Helix
Electricity 20m 6mm Oil Suction And Delivery Hose With Steel Helix
Electricity 20m 6mm Oil Suction And Delivery Hose With Steel Helix
Electricity 20m 6mm Oil Suction And Delivery Hose With Steel Helix
Electricity 20m 6mm Oil Suction And Delivery Hose With Steel Helix
Specifications
Brand Name :
Zebung
Model Number :
GB-ZB0425F
Certification :
ISO9001
Place of Origin :
China
MOQ :
600m
Price :
usd 0.8-2.0 Per meter
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1500m per day
Delivery Time :
between 15-20 days for one 20GP
Packaging Details :
woven sheet or pallets
length :
20m 30m 40m 60m
Reinforced :
textile
Safety factor :
3times
Application :
heavy duty fuel oil handling
Description

Fuel And Diesel Oil Delivery And Suction Hose from 6mm to 304mm with 5times bending radius
Ø Inner rubber: Black NBR synthetic rubber
Ø Reinforcement layer: High tensile textile cord with helix steel wire
Ø Cover rubber: CR
Anti-static electricity with copper wire for handle fuel oil
Length:30m.40m.60m ,other parameters can be do as your requirements

Description:

1. Flexible Fuel&Oil Suction and Delivery Hose is used in plant and oil field loading operations requiring a strong

and flexible hose. Handles gasoline, oil and petroleum .

2. The wide corrugated cover provides perfect kink resistance and outstanding flexibility.

3. The hose is designed for off shore drilling and other demanding applications where longer lengths and fewer

connections are desired. High quality hose design for superior pressure and higher working pressure in tough

environments, cover resistance to weather,salt water, sunlight and oil.

4. OS&D design to handle petroleum products up to 50% aromatics on marine docks , ships and barges. Can

meet the longest possible service conditions.

5. Exclusive design for rugged oil field serve where full suction and working pressure are required.

Ideal for handling crude, brine,,drilling, mud, tank bottoms, mild solutions of hydrochloric acids, and diesel fuels.

Electricity 20m 6mm Oil Suction And Delivery Hose With Steel Helix
Electricity 20m 6mm Oil Suction And Delivery Hose With Steel Helix
Electricity 20m 6mm Oil Suction And Delivery Hose With Steel Helix

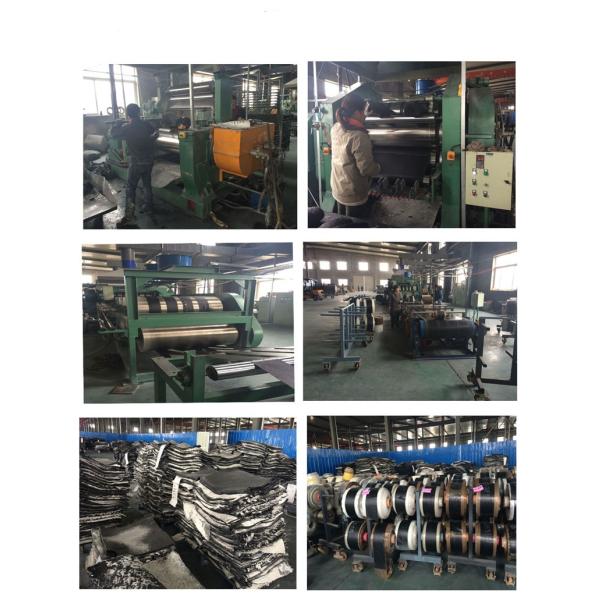

Raw materials
The production of the new intensive refining workshop has greatly improved the quality and output of rubber
film raw materials, the raw material rubber adopts the segmented treatment mode, the black rubber and the
colored rubber are separated, in order toensure the quality of the colored rubber. Strict inspection standards
are applied in each process, put into use after qualified inspection.
Electricity 20m 6mm Oil Suction And Delivery Hose With Steel Helix


Specification

I.D. O.D. W.P. B.P. B.R. Weight Length
mm inch mm psi bar psi bar mm kg/m ft m
19 3/4" 30 150 10 450 30 100 0.69 200 61
25 1" 36 150 10 450 30 150 0.86 200 61
32 1-1/4" 44 150 10 450 30 190 1.23 200 61
38 1-1/2" 51 150 10 450 30 220 1.54 200 61
2" 64 150 10 450 30 300 1.98 200 61
64 2-1/2" 78 150 10 450 30 380 2.61 200 61
76 3" 90 150 10 450 30 450 3.16 200 61
102 4" 120 150 450 30 550 5.08 200 61
152 6" 171 150 10 450 30 750 8.34 30.5
203 8" 224 150 10 450 30 1100 12.71 100 30.5
254 10" 280 150 10 450 30 19.9 10
304 12" 332.6 150 10 450 30 26.94 10

Electricity 20m 6mm Oil Suction And Delivery Hose With Steel Helix
Electricity 20m 6mm Oil Suction And Delivery Hose With Steel Helix

Company profile

Hebei Zebung Rubber Hose Technology co,ltd
Hebei Zebung Rubber Technology CO., LTD located in Dong Zi's hometown, Jing County, the company is
located in Jing County high-tech development zone, covers a total area of 60,000 square meters, of which
the construction area is nearly 30,000 square meters. The company has introduced a number of 40 meters,
60 meters automated production lines from Italy, greatly improved the production efficiency, and has a
number of large-diameter production lines ready to meet the needs of customers in various orders.
