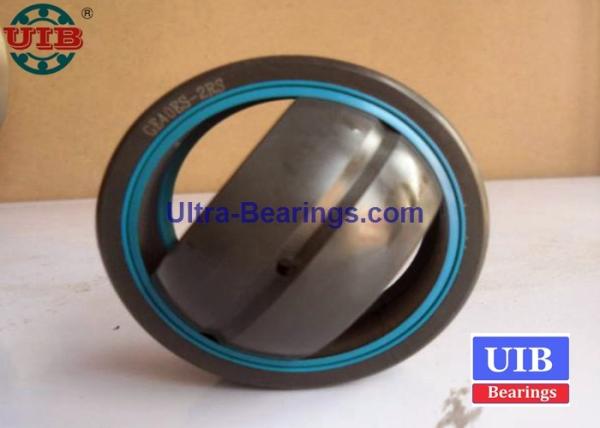

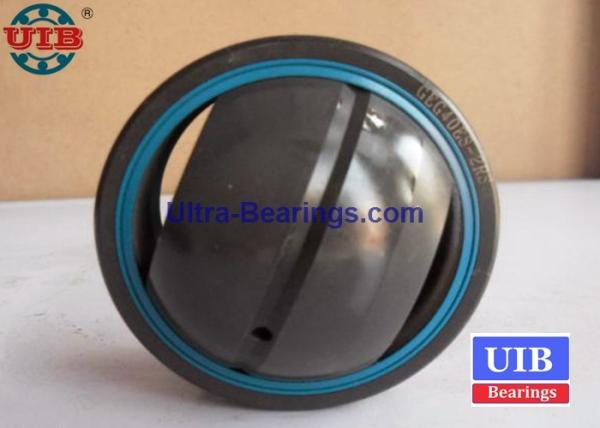

Truck Replacement Sealed Spherical Plain Bearings 150mm Chrome Steel AISI 52100
Truck Replacement Sealed Spherical Plain Bearings 150mm Chrome Steel AISI 52100
Truck Replacement Sealed Spherical Plain Bearings 150mm Chrome Steel AISI 52100
Truck Replacement Sealed Spherical Plain Bearings 150mm Chrome Steel AISI 52100
Truck Replacement Sealed Spherical Plain Bearings 150mm Chrome Steel AISI 52100
Truck Replacement Sealed Spherical Plain Bearings 150mm Chrome Steel AISI 52100
Specifications
Brand Name :
UIB
Model Number :
GEG40ES 2RS
Certification :
ISO901:2008
Place of Origin :
China
MOQ :
1000PCS
Price :
negotiable
Payment Terms :
L/C, D/P, T/T
Delivery Time :
10days
Packaging Details :
as per customer request
dynamic load :
156KN
static load :
780KN
bearing weight :
0.562 kg
bearing size :
50*75*35 mm
surface treatment :
phosphating
Material :
GCR15, ANSI 52100 chrome steel
Applicant :
exavator , truck replacement
Tolerance Grade :
ABEC-1, P0
Description

Truck Replacement Sealed Spherical Plain Bearings 150mm Chrome Steel AISI 52100

Product description:

1, phosphating surface treatment;

2, sealed time;

3, self-lubricated.

The structure of the Spherical Plain Bearing is simpler than the rolling bearing, which consists of an inner ring with an outer sphere and an outer ring with an inner sphere.

Spherical Plain Bearing is generally used in low speed of the swinging motion (that is, the angular motion), due to the sliding surface of spherical shape, can be tilted movement in certain Angle range (that is, the heart movement), the supporting shaft and the shaft shell hole concentricity is bigger, can still work normally.

The characteristics of Spherical Plain Bearing


Spherical Plain Bearing can withstand greater load. According to its different types and structures, it can bear the combined load of radial load, axial load or radial and axial.

Since the outer sphere of the inner circle is encrusted with composite material, the bearing can produce self-lubrication at work. Generally used for low-speed swing motion and low speed rotation, it can also be tilted at a certain Angle, and it can work normally when the supporting axis and the axial shell hole are not concentric.

Self-lubricating Spherical Plain Bearing is applied in water conservancy, professional machinery and other industries.

GEG40ES 2RS Self-lubricated details
brand UIB type Spherical Plain Bearing Inner diameter 100(mm)
outer diameter 150(mm) thickness 30(mm) weight 2.34(kg)
application food industrial usage characteristic universal grease self-lubrication
