105 KN Press Steel GCR15 Wheel Hub Unit Bearing 23mm With Taper Rollers
105 KN Press Steel GCR15 Wheel Hub Unit Bearing 23mm With Taper Rollers
105 KN Press Steel GCR15 Wheel Hub Unit Bearing 23mm With Taper Rollers
105 KN Press Steel GCR15 Wheel Hub Unit Bearing 23mm With Taper Rollers
105 KN Press Steel GCR15 Wheel Hub Unit Bearing 23mm With Taper Rollers
105 KN Press Steel GCR15 Wheel Hub Unit Bearing 23mm With Taper Rollers
105 KN Press Steel GCR15 Wheel Hub Unit Bearing 23mm With Taper Rollers
105 KN Press Steel GCR15 Wheel Hub Unit Bearing 23mm With Taper Rollers
105 KN Press Steel GCR15 Wheel Hub Unit Bearing 23mm With Taper Rollers
105 KN Press Steel GCR15 Wheel Hub Unit Bearing 23mm With Taper Rollers
Specifications
Brand Name :
UIB
Model Number :
32209
Certification :
TS14909
Place of Origin :
China
MOQ :
1000PCS
Price :
negotiable
Payment Terms :
L/C, D/P, T/T
Supply Ability :
3000pcs per month
Delivery Time :
30days
Packaging Details :
industrial package or single UIB color box
Weight :
0.573kg
grease lubricate speed :
4500 (r/min)
oil lubricate speed :
5600 (r/min)
Cr :
80.8 KN
Cor :
105 KN
Bearing Grade :
P6, P5 grade
Description

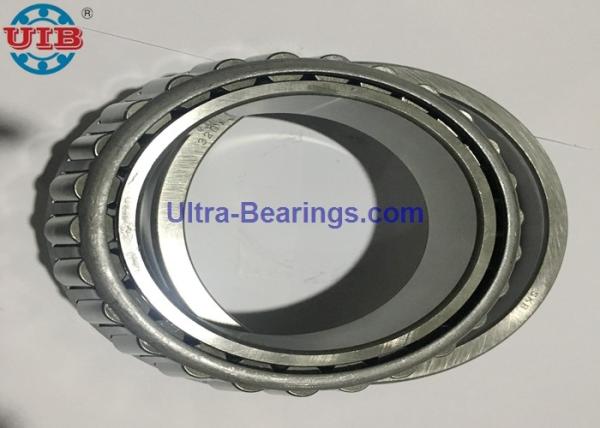

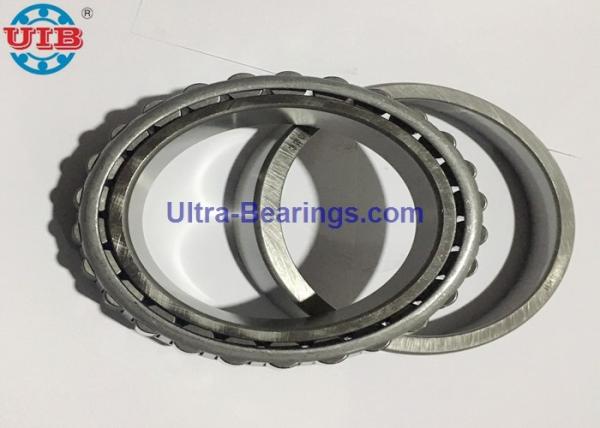

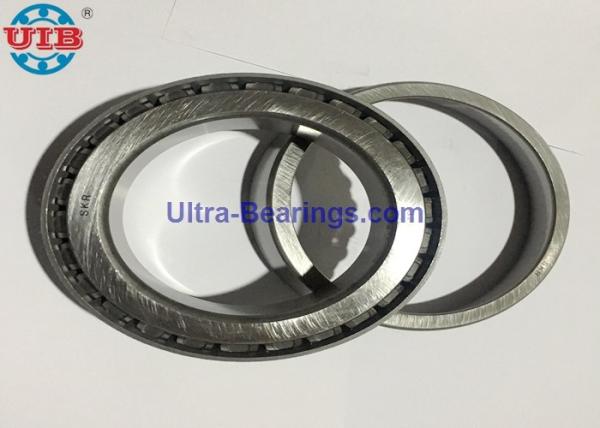

105 KN Press Steel GCR15 Wheel Hub Unit Bearing 23mm With Taper Rollers

Our product advantage:

1, Standard Gcr15 material,

2, Heat Treatment Hardness HRC60~65

Bearing type: Taper roller bearing Roller row: Single
cage material : Press steel Ring material: GCR15/ AISI52100
Dynamic load Cor(KN): 105 Oil hole: NON
Static load Cr (KN): 80.8 Bearing clearance: C3
Bearing weight: 0.573kg Inner diameter: 45mm
Bearing applicant: automobile and universal Outer diameter: 85mm
Certification: ISO9001:2008 Thickness: 23 mm
Heat treatment method: bainite heat treatment Brand: UIB,PBQ,ZBY

auto wheel bearing 32209 specification
bearing type ISO bearing NO. OLD bearing NO. ID OD WIDTH Cr Cor grease lubricatedx
speed		 oil lubricated
speed		 weight
auto wheel bearing (mm) (mm) (mm) (kN) (kN) (r/min) (r/min) (kg)
auto wheel bearing 32209 7509E 45 85 23 80.8 105 4500 5600 0.573
auto wheel bearing 32209R 67509 45 85 24.75 - - - - 0.606
auto wheel bearing 32209X2B 27509E 45 85 25 - - - - 0.584
auto wheel bearing 46T32209J/43.5 - 45 85 55 123 167 3700 4900 1.32
auto wheel bearing 32209CR - 45 85 23 80.7 102 4600 6200 0.625
auto wheel bearing 32209JR-1 - 45 85 23 84.2 104 4600 6100 0.597
