Specifications
Brand Name :
UIB
Model Number :
UC206
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
100pcs
Price :
negotiable
Payment Terms :
L/C, T/T, D/P, Western Union, Paypal
Supply Ability :
10000pcs per month
Delivery Time :
as per order quantity
Packaging Details :
UIB single color box, industrial package
Bearing Material :
Chrome steel Gcr15, 52100, SUS440
weight :
0.33kg
Bearing Grade :
ABEC-1, ABEC-3, P0, P6
Housing color :
Blue, Green, Gray
Bearing size :
UC206
Housing size :
FL206, P206, T206
Description

High Speed Anti Friction Insert Agriculture Bearings Blue Gray Custom Sealed

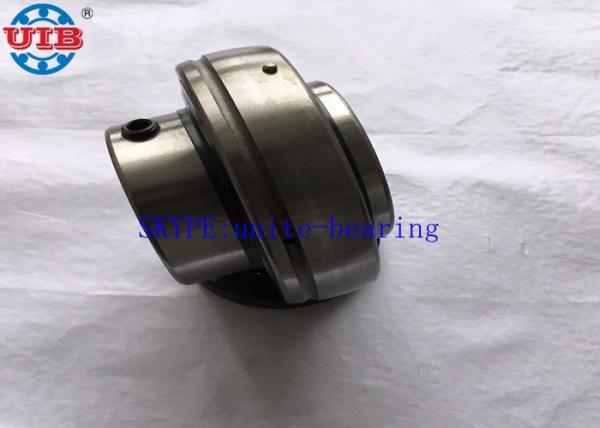

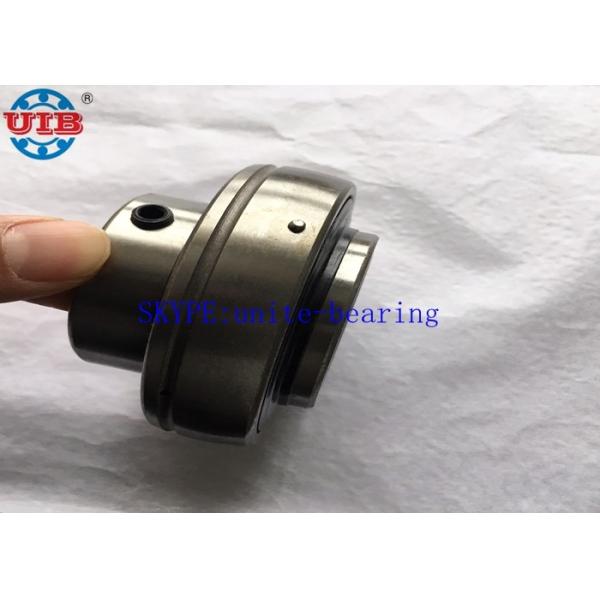

1, Product description: Pillow block bearing is very popular in agriculture machines applicant, conveyor systems, transportation lines etc. UC206 is a regular size in UC200 series.

P is short for housing P type, our product range from P202~ P218, UC is for insert ball bearing, UC200 series.

2, Applicant: agriculture machines applicant, conveyor systems, transportation lines etc, industrial fans, industrial blowers.

3, specification: size see below attached the UC bearing specification

We accept customized size for stronger product requirement.Some small machine require normal prouct which is enough and some customer require high strong power machines require stronger bearings.

We could enlarge our product external size,in this way to improve the quality.


Each process in production line we have quality inspection,finished product random checking4,Quality checking:

5, Package and delivery: Single UIB color box and UIB color box and export wooden pallet.

UC bearing specification
bearing type ISO bearing NO. OLD bearing NO. ID OD WIDTH Cr Cor grease lubricatedx
speed		 oil lubricated
speed		 weight
spherical ball bearing UC206-20 90509-20 31.75 62 38.1 - - - - 0.33
spherical ball bearing UC206-19 90506-19 30.162 62 38.1 - - - - 0
spherical ball bearing UC206-18 90506-18 28.575 62 38.1 - - - - 0
spherical ball bearing UC206-17 90506-17 26.987 62 38.1 - - - - 0.34
spherical ball bearing UC206NW3/YA1 250506 30 62 38.1 - - - - 0.39

bearing type ISO bearing NO. OLD bearing NO. ID OD WIDTH Cr Cor grease lubricatedx
speed		 oil lubricated
speed		 weight
spherical ball bearing UC208-25 90508-25 39.688 80 49.2 - - - - 0
spherical ball bearing UC208-24 90508-24 38.1 80 49.2 - - - - 0
spherical ball bearing UC207-23 90507-23 36.512 72 42.9 - - - - 0
spherical ball bearing UC207-22 90507-22 34.952 72 42.9 - - - - 0
spherical ball bearing UC207-21 90507-21 33.338 72 42.9 - - - - 0
spherical ball bearing UC206-20 90509-20 31.75 62 38.1 - - - - 0.33
spherical ball bearing UC206-19 90506-19 30.162 62 38.1 - - - - 0
spherical ball bearing UC206-18 90506-18 28.575 62 38.1 - - - - 0
spherical ball bearing UC206-17 90506-17 26.987 62 38.1 - - - - 0.34
spherical ball bearing UC205-16 90505-16 25.4 52 34.1 - - - - 0
spherical ball bearing UC205-15 90505-15 23.812 52 34.1 - - - - 0.22
spherical ball bearing UC205-14 90505-14 22.225 52 34.1 - - - - 0
spherical ball bearing UC204-12 90504-12 19.05 47 31 - - - - 0
spherical ball bearing UC203X3 90503Y 17 47 31 - - - - 0
spherical ball bearing UC203-11 90503-11 17.462 40 27.4 - - - - 0.14
spherical ball bearing UC203 90503 17 40 27.4 - - - - 0.12
spherical ball bearing UC202X3 90502Y 15 47 31 - - - - 0.19
spherical ball bearing UC202-9 90502Y-9 14.287 40 31 - - - - 0
spherical ball bearing UC202-10 90502Y-10 15.875 47 31 - - - - 0
spherical ball bearing UC201X3 90501Y 12 47 31 - - - - 0.21
spherical ball bearing UC201-8 90501-8 12.7 47 31 - - - - 0.21
spherical ball bearing UC201-12 90501-12 19.05 47 31 - - - - 0.21

High Speed Anti Friction Insert Agriculture Bearings Blue Gray Custom Sealed
