Transportation Lines Gcr15 Pillow Block Bearings UCFL207 Cast Iron Steel
Transportation Lines Gcr15 Pillow Block Bearings UCFL207 Cast Iron Steel
Transportation Lines Gcr15 Pillow Block Bearings UCFL207 Cast Iron Steel
Transportation Lines Gcr15 Pillow Block Bearings UCFL207 Cast Iron Steel
Transportation Lines Gcr15 Pillow Block Bearings UCFL207 Cast Iron Steel
Transportation Lines Gcr15 Pillow Block Bearings UCFL207 Cast Iron Steel
Transportation Lines Gcr15 Pillow Block Bearings UCFL207 Cast Iron Steel
Transportation Lines Gcr15 Pillow Block Bearings UCFL207 Cast Iron Steel
Specifications
Brand Name :
UIB
Model Number :
UCFL207
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
100pcs
Price :
negotiable
Payment Terms :
L/C, T/T, D/P, Western Union, Paypal
Supply Ability :
10000pcs per month
Delivery Time :
as per order quantity
Packaging Details :
UIB single color box, industrial package
Bearing Material :
Chrome steel Gcr15, 52100
Housing material :
HT200, HT250 cast iron
Bearing Grade :
ABEC-1, ABEC-3, P0, P6
Housing color :
Blue, Green, Gray
Bearing size :
UC207
Housing size :
FL207
weight :
0.75kg
applicant :
conveyor system bearing unit
Description

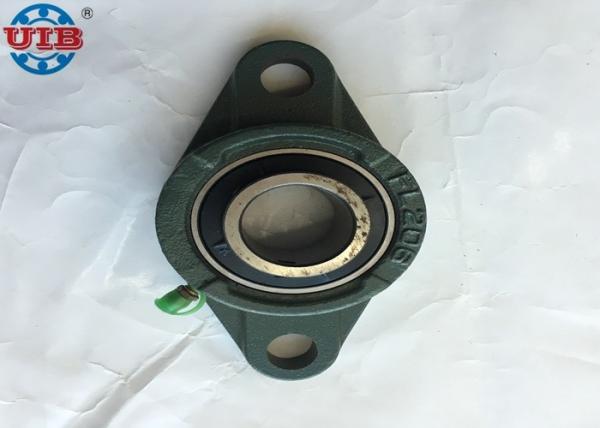

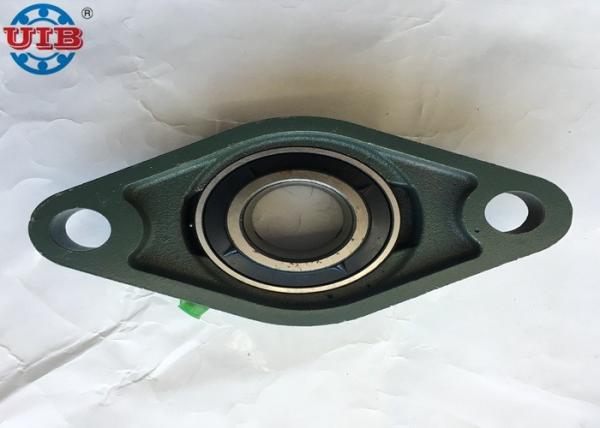

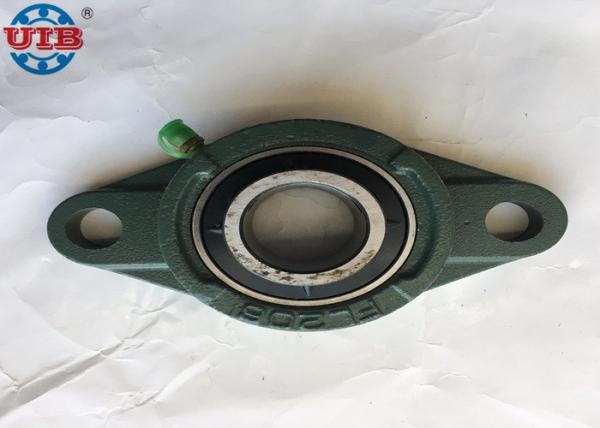

Transportation Lines Gcr15 Pillow Block Bearings UCFL207 Cast Iron Steel

1, Product description: Pillow block bearing is very popular in agriculture machines applicant, conveyor systems, transportation lines etc. UCPA205 is a regular size in UCP series.P is short for housing P type, our product range from P202~ P218, UC is for insert ball bearing, UC200 series.

2, Applicant: agriculture machines, conveyor systems, transportation lines etc, children toy device.

We accept customized size for stronger product requirement.Some small machine require normal prouct which is enough and some customer require high strong power machines require stronger bearings.

We could enlarge our product external size,in this way to improve the quality.


Each process in production line we have quality inspection,finished product random checking4,Quality checking.

Package and delivery: Single UIB color box and UIB color box and export wooden pallet.

3, specification: size

axle demension(mm) bolt bearing housing weight(kg)
d H J L A2 A1 A E N S A4
in. mm N
UCFL211-34 2-1/8 224 184 130 25 18 48 58.4 18 22.2 64 M16 UC211-34 FL211 3.1 19
UCFL211-32 2 224 184 130 25 18 48 58.4 18 22.2 64 M16 UC211-32 FL211 3.1 19
FCFL211-34 37264 224 184 130 25 18 48 58.4 18 22.2 64 M60 UC211-34 FL211 3.1 19
UCFL211-34 37264 224 184 130 25 18 48 58.4 18 22.2 64 M16 UC211-34 FL211 3.1 19
UCFL211 55 224 184 130 25 18 48 58.4 18 22.26 64 M16 UC211 FL211 3.1 19
UCFL211-35 37331 224 184 130 25 18 48 58.4 18 22.2 64 M16 UC211-35 FL211 3.1 1.9
UCFL212-36 37260 250 202 140 29 18 48 68.7 18 25.4 74.5 M16 UC212-36 FL212 4 23
UCFL201S 12 99 76.5 57 15 11 24.5 30.9 11.5 11.5 M10 UC201S FL203 0.45
UCFL201-8S 42737 99 76.5 57 15 11 24.5 30.9 11.5 11.5 M10 UC201-8S FL203 0.45
UCFL202S 15 99 76.5 57 15 11 24.5 30.9 11.5 11.5 M10 UC202S FL203 0.45
UCFL202-10S 42863 99 76.5 57 15 11 24.5 30.9 11.5 11.5 M10 U202-10S FL203 0.45
UCFL203C 17 99 76.5 57 15 11 24.5 30.9 11.5 11.5 M10 UC203S FL203 0.45
UCFL203-11S 43055 99 76.5 57 15 11 24.5 30.9 11.5 11.5 M10 UC203-11S FL203 0.45
UCFL201 12 113 90 60 15 11 25.5 33.3 11.5 12.7 37.5 M10 UC201 FL204 0.51 12
UCFL201-8 42737 113 90 60 15 11 25.5 33.3 11.5 12.7 37.5 M10 UC201-8 FL204 0.51 12
UCFL202 15 113 90 60 15 11 25.5 33.3 11.5 12.7 37.5 M10 UC202 FL204 0.51 12
UCFL202-10 42863 113 90 60 15 11 25.5 33.3 11.5 12.7 37.5 M10 UC202-10 FL204 0.51 12
UCFL203 17 113 90 60 15 11 25.5 33.3 11.5 12.7 37.5 M10 UC203 FL204 0.51 12
UCFL203-11 43055 113 90 60 15 11 25.5 33.3 11.5 12.7 37.5 M10 UC203-11 FL204 0.51 12
UCFL204-12 42798 113 90 60 15 11 25.5 33.3 11.5 12.7 37.5 M10 UC204-12 FL204 0.51 12
UCFL204 20 113 90 60 15 11 25.5 33.3 11.5 12.7 37.5 M10 UC204 FL204 0.51 12
UCFL205-14 42924 130 99 68 16 13 27 35.7 11.5 14.3 40 M10 UC205-14 FL205 0.6 16
UCFL205-15 15/16 130 99 68 16 13 27 35.7 11.5 14.3 40 M10 UC205-15 FL205 0.6 16
UCFL205 25 130 99 68 16 13 27 35.7 11.5 14.3 40 M10 UC205 FL205 0.6 16
UCFL205-16 1 130 99 68 16 13 27 35.7 11.5 14.3 40 M10 UC205-16 FL205 0.6 16
UCFL206-18 36899 148 117 80 18 13 31 40.2 11.5 15.9 44 M10 UC206-18 FL206 0.9 16
UCFL206 30 148 117 80 18 13 31 40.2 11.5 15.9 44 M10 UC206 FL206 0.9 16
UCFL206-19 36966 148 117 80 18 13 31 40.2 11.5 15.9 44 M10 UC206-19 FL206 0.9 16
UCFL206-20 36895 148 117 80 18 13 31 40.2 11.5 15.9 44 M10 UC206-20 FL206 0.9 16
UCFL207-20 36895 161 130 90 19 14 34 44.4 14 17.5 48.5 M12 UC207-20 FL207 1.2 16
UCFL207-21 37027 161 130 90 19 14 34 44.4 14 17.5 48.5 M12 UC207-21 FL207 1.2 16
UCFL207-22 36958 161 130 90 19 14 34 44.4 14 17.5 48.5 M12 UC207-22 FL207 1.2 16
UCFL207 35 161 130 90 19 14 34 44.4 14 17.5 48.5 M12 UC207 FL207 1.2 16
UCFL207-23 37088 161 130 90 19 14 34 44.4 14 17.5 48.5 M12 UC207-23 FL207 1.2 16
UCFL208-24 36893 175 144 100 21 14 36 51.2 14 19 55 M12 UC208-24 FL208 1.5 16
UCFL208-25 37150 175 144 100 21 14 36 51.2 14 19 55 M12 UC208-25 FL208 1.5 16
UCFL208 40 175 144 100 21 14 36 51.2 14 19 55 M12 UC08 FL208 1.5 16
UCFL209-26 37019 188 148 108 22 16 38 52.2 18 19 57 M16 UC209-26 FL209 1.9 19
UCFL209-27 37211 188 148 108 22 16 38 52.2 18 19 57 M16 U209-27 FL209 1.9 19
UCFL209-28 36954 188 148 108 22 16 38 52.2 18 19 57 M16 UC209-28 FL209 1.9 19
UCFL209 45 188 148 108 22 16 38 52.2 18 19 57 M16 UC209 FL209 1.9 19
UCFL210-30 37080 197 157 115 22 16 40 54.6 18 19 60 M16 UC210-30 FL210 2.2 19
UCFL210-31 1-15/16 197 157 115 22 16 40 54.6 18 19 60 M16 UC210-31 FL210 2.2 19
UCFL210 50 197 157 115 22 16 40 54.6 18 19 60 M16 UC210 FL210 2.2 19
UCFL210 50 197 157 115 22 16 40 54.6 18 19 60 M16 UC210 FL210 2.2 19
UCFL210-32 2 197 157 115 22 16 40 54.6 18 19 60 M16 UC210-32 FL210 2.2 19
UCFL212 60 250 202 140 29 18 48 68.7 18 25.4 74.5 M16 UC212 FL212 4 23
UCFL212-38 37323 250 202 140 29 18 48 68.7 18 25.4 74.5 M16 UC212-38 FL212 4 23
UCFL212-39 37453 250 202 140 29 18 48 68.7 18 25.4 74.5 M16 UC212-39 FL212 4 23
UCFL213-40 37258 258 210 155 30 20 50 69.7 23 25.4 79 M20 UC213-40 FL213 5 23
