4 Bolt Flange Mounted Pillow Block Bearings UCF209 45mm Heavy Low Friction
4 Bolt Flange Mounted Pillow Block Bearings UCF209 45mm Heavy Low Friction
4 Bolt Flange Mounted Pillow Block Bearings UCF209 45mm Heavy Low Friction
4 Bolt Flange Mounted Pillow Block Bearings UCF209 45mm Heavy Low Friction
4 Bolt Flange Mounted Pillow Block Bearings UCF209 45mm Heavy Low Friction
4 Bolt Flange Mounted Pillow Block Bearings UCF209 45mm Heavy Low Friction
Specifications
Brand Name :
UIB
Model Number :
UCF209
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
100 PCS
Price :
negotiable
Payment Terms :
L/C, T/T, D/P, Western Union, Paypal
Supply Ability :
1000pcs per month
Delivery Time :
15 days
Packaging Details :
UIB single color box, industrial package
Bearing Grade :
ABEC-1, ABEC-3, P0, P6
Housing material :
HT200, HT250 cast iron, Cast steel
Housing color :
Blue, Green, Black
Bearing size :
UC209, UC209-45
Housing size :
Flange Housing F209
Aplicant :
Agriculture, Automotive, Pump
Stock list :
2000PCS
Description

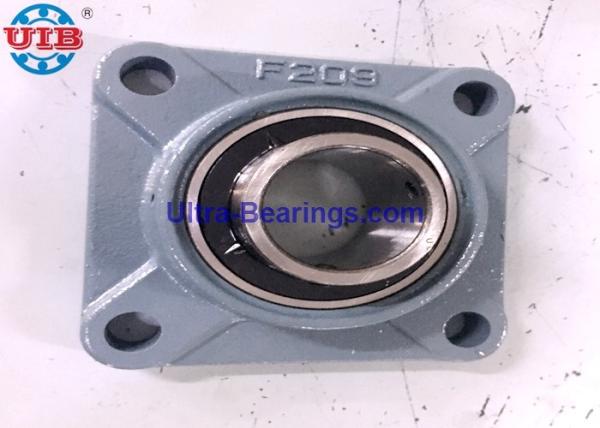

4 Bolt Flange Mounted Pillow Block Bearings UCF209 45mm Heavy Low Friction

1, Product description:


UCF209, 4-Bolt Flange Bearing has combination of a set screw chrome steel insert bearing with slinger seal design and cast iron 4-Bolt flange housing with anti-rotation device

2, Produce applicant:
Common usage for UCF 4-Bolt Flange Bearing include:

Agriculture, Automotive, Pump, Sporting and Consumer Goods, Construction, Manufacturing Equipment, Conveyor and Fan Assemblies, Farm Machinery, HVAC, Feed Mill, Economical housed bearing solution and many other Industrial Equipment

3, Interchange List to other brand:
AMI: UCF209-45
Browning: VF4S
Dodge Part #: 125891
Dodge: F4B-SC-45M
Fafnir: YCJ-45
IPTCI: UCF209-45
Link-Belt: F3-U2M45N
NTN: UCF209D1
Peer: UCF209-45
Sealmaster: SF-209

UCF209 45mm Flange Mounted Pillow Block Bearings DRAWING:

4 Bolt Flange Mounted Pillow Block Bearings UCF209 45mm Heavy Low Friction

UCF209 45mm Flange Mounted Pillow Block Bearings CATALOG
Unit NO. Dimensions(mm/in.) Bolt Size mm/in. Bearing NO. Bearing NO. Housing NO.
d a e i g l s z t n B
UCF209 45 137 105 22 18 38 16 52.2 56.5 2 49.2 19 M14 UC209 F209
UCF 209-26 1-5/8 5-13/32 4-9/64 55/64 23/32 1-1/2 5/8 2-1/16 2-7/32 2.1 1.937 0.748 1/2 UC209-26 F209
UCF 209-27 1-11/16 5-13/32 4-9/64 55/64 23/32 1-1/2 5/8 2-1/16 2-7/32 2.06 1.937 0.748 1/2 UC209-27 F209
UCF 209-28 1-3/4 5-13/32 4-9/64 55/64 23/32 1-1/2 5/8 2-1/16 2-7/32 2.02 1.937 0.748 1/2 UC209-28 F209
UCF210 50 143 111 22 18 40 16 54.6 59.5 2.32 51.6 19 M14 UC210 F210
UCF 210-29 1-13/16 5-5/8 4-3/8 55/64 23/32 1-9/16 5/8 2-5/32 2-11/32 2.44 2.0315 0.748 1/2 UC210-29 F210
UCF 210-30 1-7/8 5-5/8 4-3/8 55/64 23/32 1-9/16 5/8 2-5/32 2-11/32 2.39 2.0315 0.748 1/2 UC210-30 F210
UCF 210-31 1-15/16 5-5/8 4-3/8 55/64 23/32 1-9/16 5/8 2-5/32 2-11/32 2.34 2.0315 0.748 1/2 UC210-31 F210
UCF 210-32 2 5-5/8 4-3/8 55/64 23/32 1-9/16 5/8 2-5/32 2-11/32 2.3 2.0315 0.748 1/2 UC210-32 F210
UCF 211-32 2 6-3/8 5-1/8 63/64 25/32 1-11/16 3/4 2-5/16 2-31/64 3.27 2.189 0.874 5/8 UC211-32 F211
UCF211 55 162 130 25 20 43 19 58.4 63 3.12 55.6 22.2 M16 UC211 F211
UCF 211-33 2-1/16 6-3/8 5-1/8 63/64 25/32 1-11/16 3/4 2-5/16 2-31/64 3.21 2.189 0.874 5/8 UC211-33 F211
UCF 211-34 2-1/8 6-3/8 5-1/8 63/64 25/32 1-11/16 3/4 2-5/16 2-31/64 3.17 2.189 0.874 5/8 UC211-34 F211
