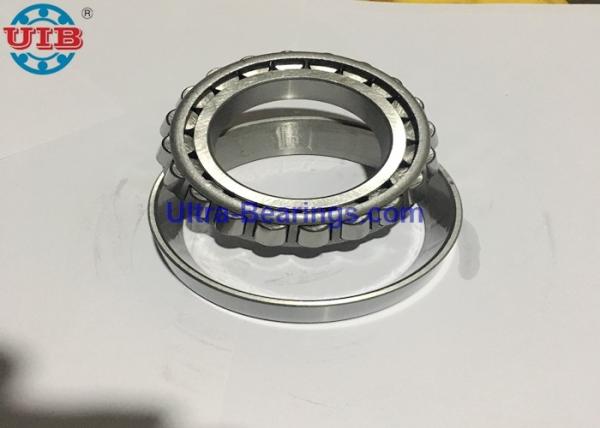

32207 GCr15 Press Steel Auto Wheel Bearing OEM P5 P6 Single Row High Precision
32207 GCr15 Press Steel Auto Wheel Bearing OEM P5 P6 Single Row High Precision
32207 GCr15 Press Steel Auto Wheel Bearing OEM P5 P6 Single Row High Precision
32207 GCr15 Press Steel Auto Wheel Bearing OEM P5 P6 Single Row High Precision
32207 GCr15 Press Steel Auto Wheel Bearing OEM P5 P6 Single Row High Precision
32207 GCr15 Press Steel Auto Wheel Bearing OEM P5 P6 Single Row High Precision
32207 GCr15 Press Steel Auto Wheel Bearing OEM P5 P6 Single Row High Precision
32207 GCr15 Press Steel Auto Wheel Bearing OEM P5 P6 Single Row High Precision
Specifications
Brand Name :
UIB
Model Number :
32207
Certification :
TS14909
Place of Origin :
China
MOQ :
1000PCS
Price :
negotiable
Payment Terms :
L/C, D/P, T/T
Supply Ability :
4000pcs per month
Delivery Time :
20days
Packaging Details :
industrial package or single UIB color box
Bearing type :
Auto wheel bearing
grease lubricate speed :
5300 (r/min)
oil lubricate speed :
6700 (r/min)
Roller Process :
Polished
Hardness :
HRC60~ 65
Bearing Grade :
P6, P5 grade
Description

32207 GCr15 Press Steel Auto Wheel Bearing OEM P5 P6 Single Row High Precision

Our product advantage:

1, Standard Gcr15 material, AISI 52100 steel,

2, Heat Treatment Hardness HRC60~65

3, Polished rollers,

4, OEM Quality, P6,P4,ABEC-3,ABEC-5 precision Grade.

32207 Auto Wheel BearingDescripition: unit:Inch

Inner Dia: 1.378

Outer Dia: 2.8346

Width: 0.9547

Stand Out: 0.2067

Cone Length: 0.9055

Cup Length: 0.748

Cone Radius: 0.0787

Cup Radius: 0.0787

Wheel Hub Unit Bearing Taper Roller Auto Bearing 32207 OEM Quality GCr15
Bearing type: Taper roller bearing Roller row: Single
cage material : Press steel Ring material: GCR15/ AISI52100
Dynamic load Cor(KN): 89.5 Oil hole: NON
Static load Cr (KN): 79. Bearing clearance: C3
Bearing weight: 0.445kg Inner diameter: 35mm
Bearing applicant: auto wheel bearing Outer diameter: 72mm
Certification: ISO9001:2008 Thickness: 23 mm
Heat treatment method: bainite heat treatment Brand: UIB,PBQ,ZBY


Forged bearing rings, have much better quality then normal steel tube rings.

he difference between forging and casting material:

Forging is formed by forging after the metal is heated in solid state. It requires the metal to have good thermoplastic (also known as forging), and the general forging is steel, which is of high strength and plasticity, which is suitable for high quality and high quality components. Such as bolts, shafts, gears, axle, etc.


The casting metal is formed in liquid casting and casting. It requires good fluidity, filling ability of liquid metal, etc. (also called casting), divided into two cast steel and cast iron in the iron and steel casting, iron carbon content is higher than steel, its low strength over steel, plastic, poor general tolerances for the production is not very big parts, such as machine tools, such as the low pressure valve; Steel casting strength is high, used for making complex parts, such as chain rail, high pressure valve seat, etc.

32207 GCr15 Press Steel Auto Wheel Bearing OEM P5 P6 Single Row High Precision
