30212 60mm High Temp Taper Steel Roller Bearing For Agriculture Machine
30212 60mm High Temp Taper Steel Roller Bearing For Agriculture Machine
30212 60mm High Temp Taper Steel Roller Bearing For Agriculture Machine
30212 60mm High Temp Taper Steel Roller Bearing For Agriculture Machine
30212 60mm High Temp Taper Steel Roller Bearing For Agriculture Machine
30212 60mm High Temp Taper Steel Roller Bearing For Agriculture Machine
30212 60mm High Temp Taper Steel Roller Bearing For Agriculture Machine
30212 60mm High Temp Taper Steel Roller Bearing For Agriculture Machine
30212 60mm High Temp Taper Steel Roller Bearing For Agriculture Machine
30212 60mm High Temp Taper Steel Roller Bearing For Agriculture Machine
Specifications
Brand Name :
UIB
Model Number :
30212
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
1000PCS
Price :
negotiable
Payment Terms :
L/C, D/P, T/T, Western Union
Supply Ability :
10000pcs per month
Delivery Time :
5-8 weeks
Packaging Details :
UIB color box, or industrial package as per buyer request
Bearing material :
chrome steel GCR15, 52100
Bearing precision :
ABEC-1. ABEC-3, P0, P6
Bearing rollers :
19
Bearing weight :
0.907KG
Dynamic road :
10.83KN
Static load :
13.02KN
Description

30212 60mm High Temp Taper Steel Roller Bearing For Agriculture Machine

1, Taper roller bearing 31309 Product constructure introduction:

The bearings are separable bearings, which are divided into single column, double row and four row tapered roller bearings according to the number of rolling bodies in the bearing. Single row tapered roller bearing clearance needs to be adjusted by users during installation;

Tapered roller bearings mainly bear radial and axial combined load. Bearing capacity depends on the raceway angle of the outer ring, and the larger the Angle, the greater the bearing capacity.

This design makes tapered roller bearings especially suitable for bearing composite (radial and axial) loads. The axial load capacity of bearings is mainly determined by contact angle. The larger the Angle, the higher the axial load. The angle is represented by the calculation coefficient e; The larger the value of e, the greater the contact angle, the greater the applicability of bearing axial load.

Double row and four row tapered roller bearing clearance has been given to the user according to the requirements of the user, without user adjustment. Tapered roller bearings have conical inner ring and outer ring raceway, and the taper roller is arranged between the two. The projection lines on all conical surfaces meet at the same point on the axis of the bearing.

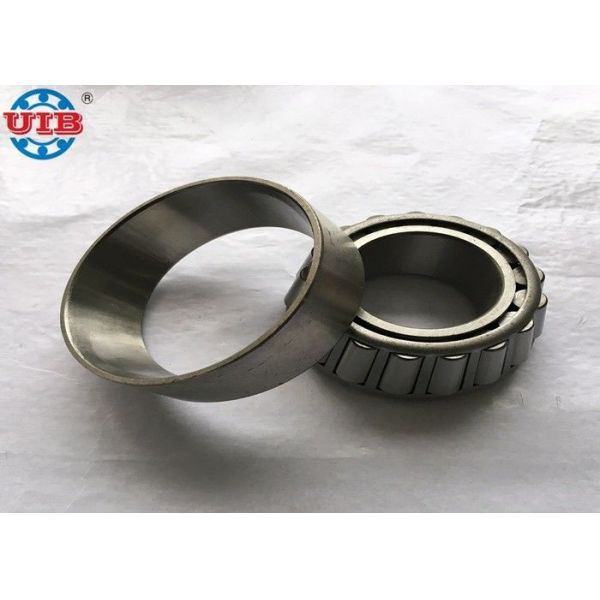

Tapered roller bearings are usually separated, i.e. the inner ring components of the roller and the inner ring of the cage assembly can be separately installed with the cone outer ring (outer ring).

Tapered roller bearings are widely used in automobile, rolling mill, mining, metallurgy, plastic machinery and other industries.

bearing type

 ISO bearing NO. OLD bearing NO. ID OD H Cr Cor grease lubricatedx
speed		 oil lubricated
speed		 weight
taper roller bearing 30212 60 110 19/22 95.5 115 4000 5000 0.944
