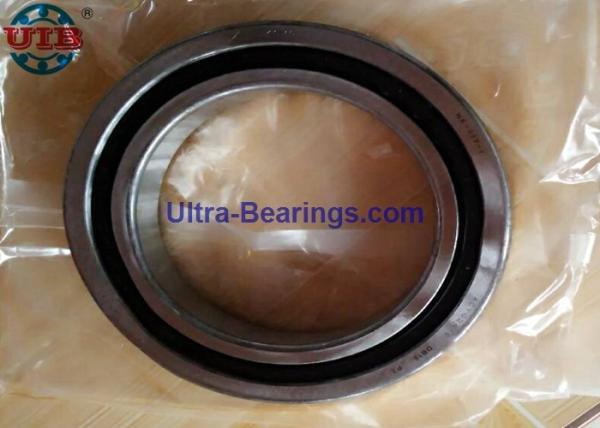

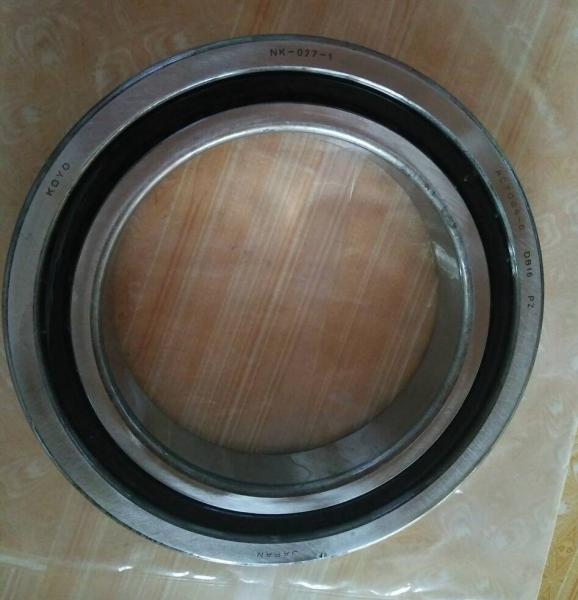

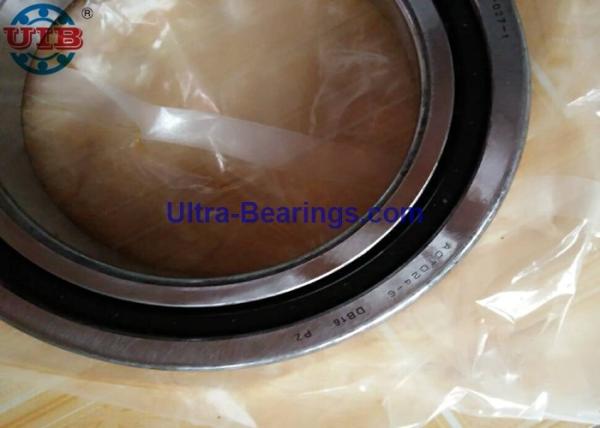

Precision Ball Bearing For Water Pump , 7026 ACD P4A Angular Contact Thrust Ball Bearings
Precision Ball Bearing For Water Pump , 7026 ACD P4A Angular Contact Thrust Ball Bearings
Precision Ball Bearing For Water Pump , 7026 ACD P4A Angular Contact Thrust Ball Bearings
Precision Ball Bearing For Water Pump , 7026 ACD P4A Angular Contact Thrust Ball Bearings
Precision Ball Bearing For Water Pump , 7026 ACD P4A Angular Contact Thrust Ball Bearings
Precision Ball Bearing For Water Pump , 7026 ACD P4A Angular Contact Thrust Ball Bearings
Specifications
Brand Name :
UIB
Model Number :
7026 ACD/P4A
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
100PCS
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000per month
Delivery Time :
20 days
Packaging Details :
industrial package, plastic tube / 10 pcs
Bearing material :
Chrome steel GCR15
Applicant :
Water pump
Boundary size :
130*200*33mm
Bearing weight :
3.43 KG
Cage material :
Bakelite
Angular type :
AC
Description

Precision Ball Bearing For Water Pump , 7026 ACD P4A Angular Contact Thrust Ball Bearings

I. Product brief introduction:

Angular Contact Ball Bearings 7026 ACD/P4A is a kind of super high precision bearing.
(presents Contact Ball Bearings) Can bear radial load and axial load at the same time. Able to work at a high speed.
The larger the contact Angle, the higher the axial bearing capacity. The contact Angle is the Angle between the contact point between the ball and the raceway and the vertical line of the bearing axis.
High precision and high speed bearings usually have a 15 degree contact Angle.
The contact Angle will increase under axial force.

II. Product advantage:
Our factory engineer could make universal pairs for usage in convenient.


Water pump bearing 7026 ACD/P4A Product specification:

Precision Ball Bearing For Water Pump , 7026 ACD P4A Angular Contact Thrust Ball Bearings

d 130mm
D 200mm
B 33mm
d1 151.6mm
d2 151.6mm
D1 178.4mm
r1,2min.2mm
r3,4min.1mm
a 55.2mm




Precision Ball Bearing For Water Pump , 7026 ACD P4A Angular Contact Thrust Ball Bearings

damin.139mm
dbmin.139mm
Damax.191mm
Dbmax.195mm
ramax.2mm
rbmax.1mm
dn 156.4mm


Precision Ball Bearing For Water Pump , 7026 ACD P4A Angular Contact Thrust Ball Bearings
